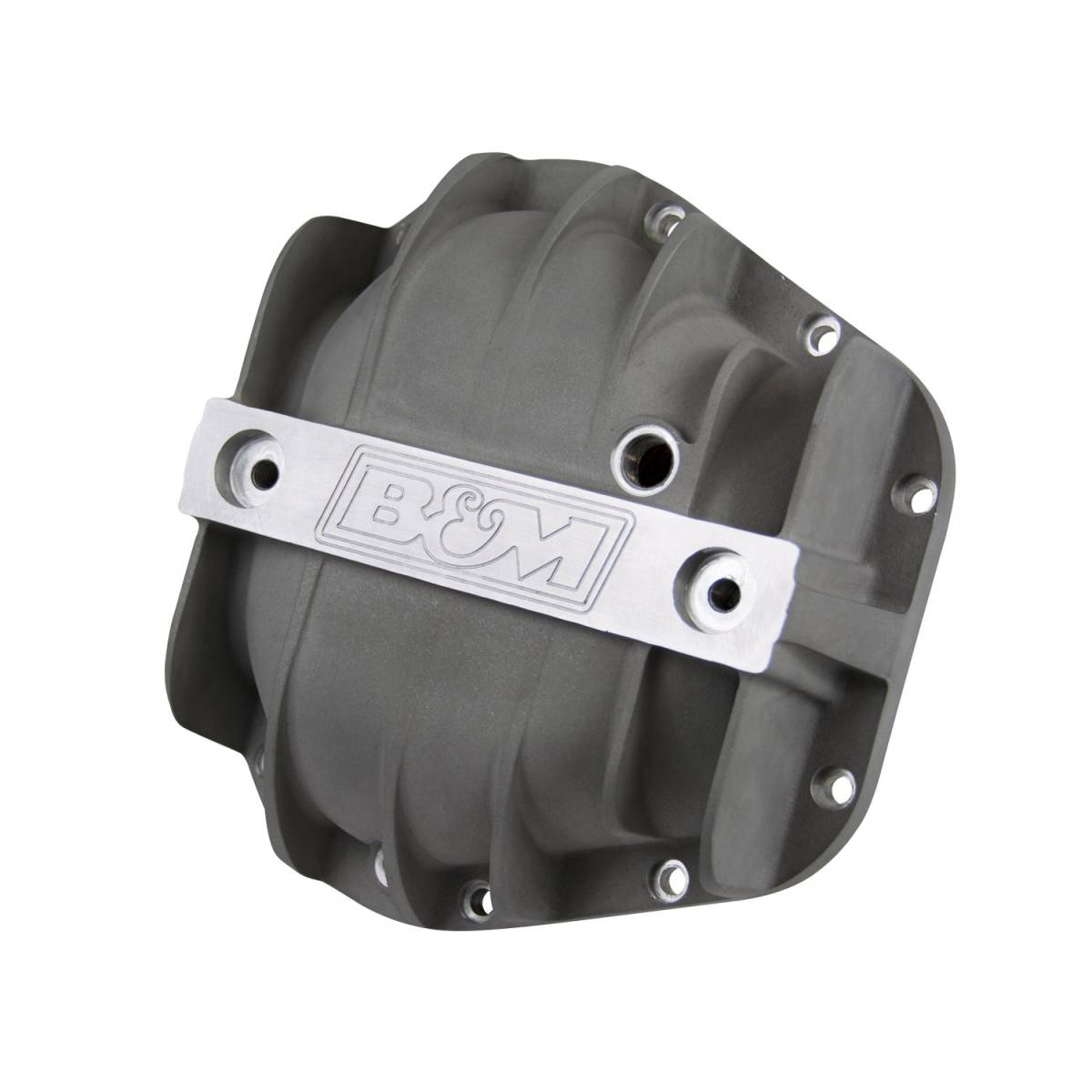

B&M Hi-Tek Aluminum Differential Cover For 1954-2015 Ford F-100-350/E-200-300

Our engineers designed the line of Hi-Tek differential covers to not only look good but address a number of weaknesses of the factory stamped steel covers. First, they started by constructing the covers of thick A356.0-T6 aluminum, which dissipates heat much faster than the factory steel unit keeping the fluid temperature lower under high-stress loads vs. a steel cover. Then for added durability, we added a reinforced center bar for extra strength along with load bolts to help prevent bearing cap deflection under severe loads. The internal shape of the cover retains the smooth round back internally to help keep the fluid flow going over the ring gear to properly lubricate the gears and bearings. Additional features include a magnetic drain plug for catching ferrous metal particles, machined B&M logo and all necessary hardware and easy to follow detailed instructions for a quick and simple installation you can do at home. Note: Gasket not included.

Features:

• Load Bolts Provide Additional Support to Bearing Caps
• Magnetic Drain Plug for Easy Servicing
• A356.0-T6 Aluminum Construction
• Additional .5-quart Fluid Capacity
• Over 65 Years of B&M Quality
• Lifetime Limited Warranty
• Machined B&M Logo

Specifications:

• Bolt Count: 10
• Bolt Pattern: DANA 60/70
• Brand: B&M
• Call Out Size (in): 3.75
• Carrier Main Cap Support: Yes
• Color/Finish: Raw Aluminum
• Drain Plug Included: Yes
• Emission Code: 5
• Filler Plug Included: Yes
• Gasket Included: No
• Material: A356.0-T6 Aluminum
• Product Type: Differential Cover
• Sale Category: Transmission and Drivetrain
• Thickness (in): 3.75
• California Proposition 65 Chemical Name: Chromium (hexavalent compounds)
• California Proposition 65 Required: Yes
• Part Number: 10314

Fitment:

• 1965-1971 FORD F-100
• 1954-1986 FORD F-250
• 1975-1978 FORD F-350
• 2002-2015 FORD F-250 SUPER DUTY
• 1999-2015 FORD F-350 SUPER DUTY
• 2003-2011 FORD E-250
• 2003-2011 FORD E-350 SUPER DUTY
• 1969-1974 FORD E-200 ECONOLINE
• 1980-2002 FORD E-250 ECONOLINE
• 1969-1974 FORD E-300 ECONOLINE
• 1975-2000 FORD E-350 ECONOLINE
• 1980-1991 FORD E-250 ECONOLINE CLUB WAGON
• 2003-2005 FORD E-350 CLUB WAGON
• 1977-2002 FORD E-350 ECONOLINE CLUB WAGON
