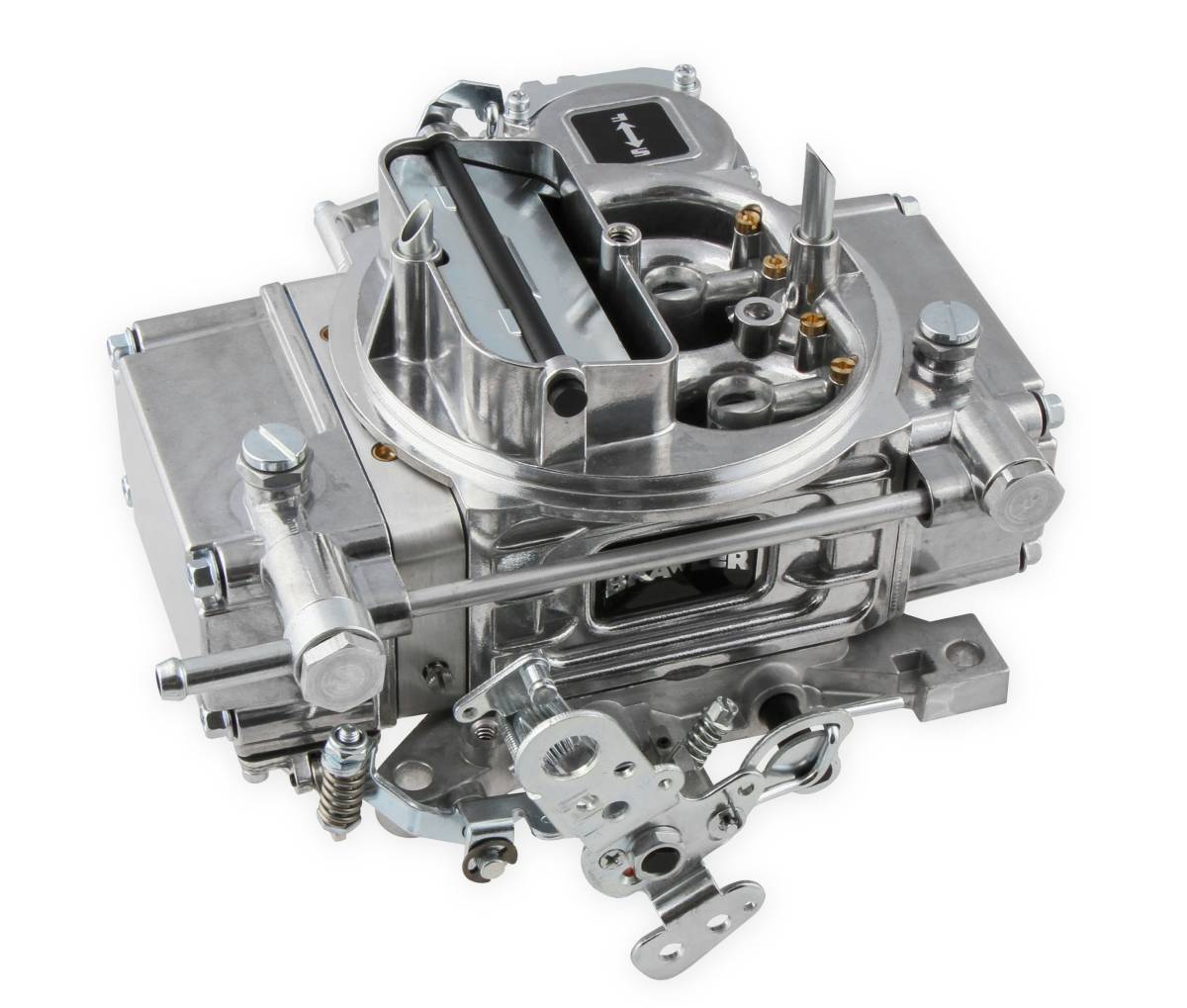

Brawler 600 CFM Brawler Diecast Carburetor Vacuum Secondary

Brawler die-cast carburetors are now available in a side hung bowl design. With a simpler one-fuel line connection, these new carburetors are a perfect fit for bolt on street performance. The carburetors are equipped with universal throttle levers to accommodate Ford A/T kickdown, GM 700 R4 mounting holes, and ability to mount brackets for Chrysler vehicles.

Brawler diecast carburetors are machined and assembled by craftsman right here in the USA. These carburetors work hard just as their name implies- just raw bare knuckled performance that you can rely on. Don't let the budget-friendly price fool you, the Brawler development focused on the performance you want and not the pretty box that it comes in. Brawlers come with the latest technology in air/fuel calibrations for today's street engine demands. The Brawler family of diecast carburetors are all made from light-weight diecast aluminum components and are available in both vacuum and mechanical secondary models. They offer all the tunability and options that you would find from more expensive carburetors in the market.

Features:

• Performance upgrade for stock to mildly modified V-8 engines
• Calibrated for excellent street performance right out of the box
• Vacuum secondaries for use on wide variety of vehicles.
• Single feed fuel inlet for easy installation
• Integrated 700R4/200R4 transmission kick down cable mounting
• Changeable Air Bleeds
• Adjustable Needle and Seats

Specifications:

• Barrels: 4
• Billet Color: Diecast- No billet
• Booster: Down Leg
• Brand: Brawler
• Carburetor Use: Street
• CFM: 600
• Choke: Manual
• Circuit: 2
• Condition: New
• Emission Code: 3
• Finish: Shiny
• Fuel: Gasoline
• Fuel Inlet: Single
• Fuel System: Carbureted
• High Speed Air Bleed: 28/28
• Idle Air Bleed Size: 70;70
• Marine Use: No
• Material: Aluminum
• Model: Brawler Diecast
• Primary Main Jet: 70
• Primary Power Valve: 6.5
• Primary Pump Nozzle Size: 31
• Primary Venturii Size: 1.300"
• Product Type: Carburetor
• Sale Category: Carburetors and Components
• Secondaries: Vacuum
• Secondary Main Jet: 74
• Secondary Venturii Size: 1.300"
• Supercharged Application: No
• Throttle Bore: 1 11/16"
• Warranty: Limited 90 Day
• Part Number: BR-67271

Emissions:

This part is legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles.

The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles:

• 1965 and older U.S. manufactured California Certified vehicles
• 1967 and older U.S. manufactured Federally Certified vehicles
• 1967 and older Foreign manufactured vehicle

WARNING: It is against the law to install this part on an Emissions Controlled Vehicle

The following vehicles are considered Emissions Controlled Vehicles:

• 1966 and newer U.S. manufactured California Certified vehicles
• 1968 and newer U.S. manufactured Federally Certified vehicles
• 1968 and newer Foreign manufactured vehicle
