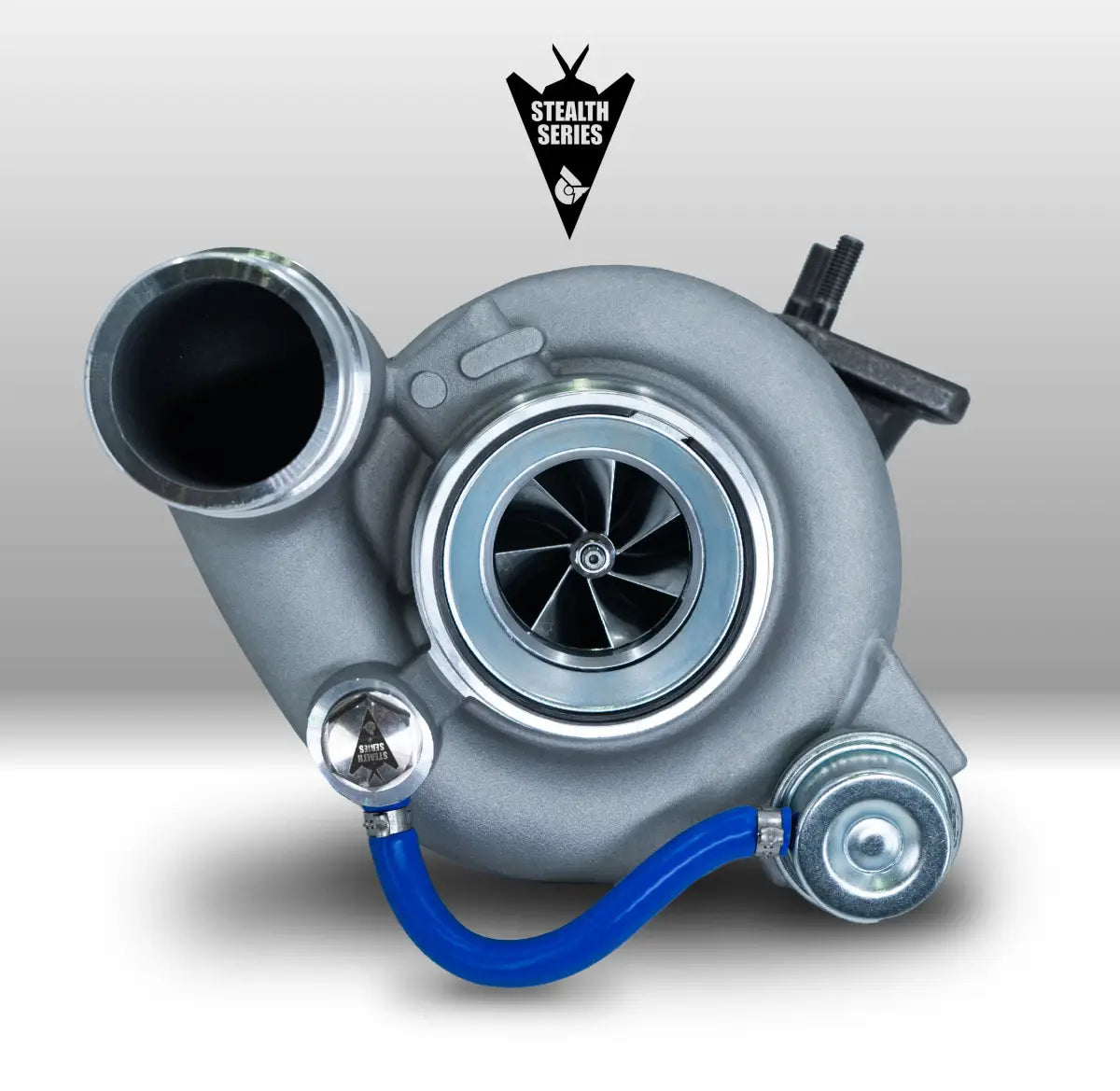

Image of Calibrated Power HE341CW Stealth STR For 03-04 Ram 2500 HD/ 3500 HD 5.9L CUMMINS
Image of Calibrated Power HE341CW Stealth STR For 03-04 Ram 2500 HD/ 3500 HD 5.9L CUMMINS
Image of Calibrated Power HE341CW Stealth STR For 03-04 Ram 2500 HD/ 3500 HD 5.9L CUMMINS
Image of Calibrated Power HE341CW Stealth STR For 03-04 Ram 2500 HD/ 3500 HD 5.9L CUMMINS
Image of Calibrated Power HE341CW Stealth STR For 03-04 Ram 2500 HD/ 3500 HD 5.9L CUMMINS
Image of Calibrated Power HE341CW Stealth STR For 03-04 Ram 2500 HD/ 3500 HD 5.9L CUMMINS
Image of Calibrated Power HE341CW Stealth STR For 03-04 Ram 2500 HD/ 3500 HD 5.9L CUMMINS
Image of Calibrated Power HE341CW Stealth STR For 03-04 Ram 2500 HD/ 3500 HD 5.9L CUMMINS
Image of Calibrated Power HE341CW Stealth STR For 03-04 Ram 2500 HD/ 3500 HD 5.9L CUMMINS
Image of Calibrated Power HE341CW Stealth STR For 03-04 Ram 2500 HD/ 3500 HD 5.9L CUMMINS
Calibrated Power

Calibrated Power HE341CW Stealth STR For 03-04 Ram 2500 HD/ 3500 HD 5.9L CUMMINS

SKU: DM1552050102000

SELECT FITMENT

See If This Product Fits Your Vehicle

$1,150.00
$1,150.00
$1,150.00

Free Shipping

Free ground shipping on all orders over $99
Description

The Stealth STR for 2003-2004 Dodge Ram 2500/3500 5.9L Cummins is the perfect option for those looking to replace their stock turbo with something that offers better performance, improved efficiency, and superior durability all at a budget-friendly price. On top of that the 3rd Gen STR is one of the quickest spooling turbos we have tested on the 5.9L Cummins. The quick spool-up of the STR is a "must-have" if you daily drive your truck often do any towing. The STR is designed to be a direct bolt-on upgrade and requires nothing more than removing the stock charger and dropping this one in its place. No tuning is required to get up and running.

FEATURES:

60mm Air Grabber Compressor Wheel

  • Air flow to support 620rwhp (dynojet)
  • Supports 425rwhp with emissions in-tact and tuning
  • 7-blade design provides higher airflow than stock
  • 60mm sizing for peak weight to efficiency optimization
  • Lighter wheel design provides unmatched spool-up
  • Featuring the latest advancements in compressor wheel technology
  • Air Grabber Technology for even more additional airflow
  • Made out of aerospace-grade billet aluminum

Beast Wheel™ Turbine Wheel

  • 30% larger wheel than stock for increased airflow and lower EGTs
  • Noticeable turbo whistle
  • Custom 10-blade design provides better flow characteristics than stock
  • 40% thicker turbine blades for better resistance to EGTs
  • Better durability than stock

Rotating Assembly (Compressor and Turbine Wheels)

  • Super light rotating assembly
  • Provides lightning fast spool-up
  • Provides ideal boost to drive pressure ratio
  • Boosts turbo efficiency
  • Precision balanced in-house

Upgraded Turbo Actuator

  • Heavier waste-gate spring
  • Larger diaphragm
  • Higher Peak Boost Pressure
  • Peak boost of 40+psi
  • Better mid range power

Gasket Kit Included

  • Exhaust gasket
  • Oil inlet and drain gaskets

Stealth Turbo Benefits

  • Absolutely no core charges
  • Brand new parts and accessories
  • 1-year warranty on all of our turbos
  • Extended warranties available
  • Live on-site customer support team here to help

Specifications:

  • Proven to support up to 620rwhp
  • Lightning fast spool-up and immediate throttle response
  • Lower average EGTs and better overall EGT control
  • 40% Thicker Turbine blades for added EGT resistance
  • Comes with an Upgraded Actuator for higher boost pressure
  • Drop-in and Go! No tuning required
  • Works great with box tuners or custom tuning
  • Loud turbo whistle from 9-blade turbine
  • Better boost to drive pressure ratio than stock
  • Zero surge even when towing heavy loads

Fitment:

  • 2003-2004 Ram 2500 HD/ 3500 HD
Fitment
Fitment

Product Specs

SKU:
DM1552050102000
Brand:
Calibrated Power
