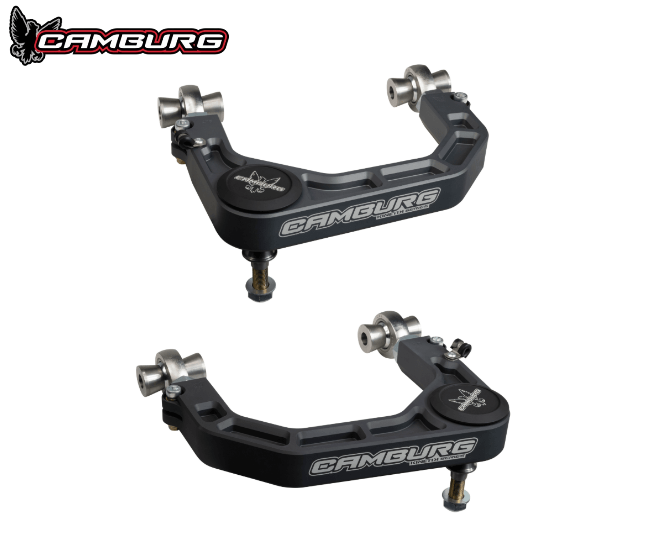

Camburg KINETIK V2 Billet Uniball Control Arms For 05-23 Toyota Tacoma/4-Runner

SKU: CAM-310184-GRY

SELECT FITMENT

See If This Product Fits Your Vehicle

$1,599.00
$1,599.00

Free Shipping

Free ground shipping on all orders over $100

These arms are meticulously designed and crafted using CAD and CNC machining. They are made from aerospace quality 6061 billet aluminum and undergo bead blasting, Type II anodizing, and laser etching for a sleek gun metal gray finish. The arms feature a larger FK 1.25" uniball with a PTFE liner for increased strength and misalignment, allowing for maximum wheel travel. They are made in the USA and are superior to cheaper imports. The uniball is adapted to the spindle/knuckle using model-specific spacers made from heat-treated stainless steel. No drilling or modifications are required.

The arms also utilize larger and stronger FK 7/8" chromoly heim joints for additional camber and caster adjustment. These heim joints eliminate flexing/deflection and provide zero binding under hard use and braking. The arms come with AN/Mil-spec hardware, including a single pinch bolt and secondary jam nut for secure attachment. The V2 design of these arms increases usable wheel travel, corrects camber and caster, and eliminates weak factory ball-joints. They are designed for 1-3" of lift and come with all necessary hardware for installation.

This product may be used with most aftermarket coilovers and allows for the reuse of OE wheels. It is recommended to use 0 offset wheels, and trimming may be required to eliminate tire rubbing. The product is compatible with a 6-stud hub.

Features:

  • V2 design increases wheel travel, corrects camber, and eliminates weak joints
  • Larger FK 1.25" uniball with PTFE liner for improved strength
  • CAD and CNC machined from aerospace-grade 6061 billet aluminum
  • Bead blasted, anodized, and laser etched for a sleek finish
  • Adapted with heat-treated stainless steel spacers for spindle fit
  • FK 7/8" chromoly heim joints for added camber and caster adjustability

Specifications:

  • Suspension Grade Type: Performance
  • Position: Upper
  • Recommended Wheel Size: 16-20 in.
  • Maximum Backspacing: 4.75 in.
  • Recommended Tire Size: 285/75/16 or 285/70/17
  • Track Width Increase: Stock
  • Ball Joint Cover Included: Yes
  • Ball Joint Included: Yes
  • Ball Joint Type: Uniball
  • Control Arm Color: Gray
  • Control Arm Construction: CNC Machined
  • Control Arm Material: 6061-T6 Billet Aluminum
  • Grade Type: Performance
  • Grease Fitting Included: No
  • Hardware Included: Yes
  • Pre-Assembled: Yes
  • Pre-Greased: No
  • Prop 65 Y/N: No

Fitment:

  • 2005-2023 Toyota Tacoma
  • 2003-2023 Toyota 4-Runner
  • 2007-2014 Toyota FJ Cruiser
Included:
  • (1) KINETIK V2 Billet Uniball Upper Control Arms pair
Note:
  • Limited Lifetime Warranty
  • Given the multitude of factors such as wheel size, offset/backspacing, tire size, brand preferences, and suspension specifics, adjustments like trimming the plastic inner fenders or modifying the body mounts behind the front tires may be necessary to prevent tire rubbing.
