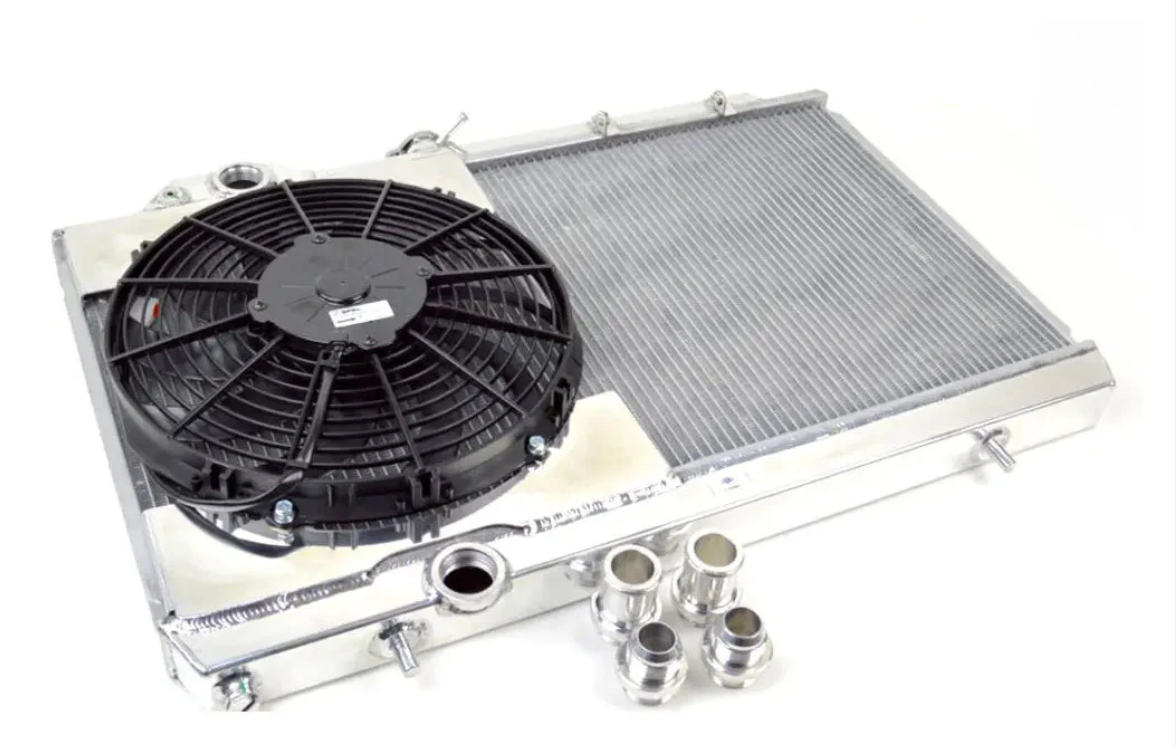

CSF Slim Aluminum Radiator w/12" SPAL Fan For 2003-2006 Mitsubishi Evo 8/9
SKU:
7075
- $699.00
- $699.00
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Keep your Mitsubishi Lancer Evolution running cool with the CSF 7075 Full-Size Slim All-Aluminum Radiator. Designed for performance street and track applications, its slim single-row core features CSF’s B-Tube Technology and multi-louvered fins for efficient heat transfer while providing additional clearance for aftermarket turbo setups.
The assembly includes a 12-inch SPAL electric fan and sealed aluminum shroud, along with adjustable -16AN and slip-on coolant connections. TIG-welded aluminum construction, a hand-polished finish and an included radiator cap complete this cooling upgrade. Fan wiring and factory fan-control module relocation are required during installation.
Features:
- Full-size slim design provides additional engine bay clearance
- Single-row 31mm core with CSF B-Tube Technology
- Multi-louvered fins with 6.5mm fin height
- Includes a 12in SPAL electric cooling fan
- Sealed aluminum fan shroud directs airflow through the core
- Adjustable -16AN and slip-on inlet/outlet fittings
- TIG-welded all-aluminum construction
- Hand-polished mirror finish
Specifications:
- Brand: CSF
- Part Number: 7075
- Product Type: Full-Size Slim Performance Radiator
- Core Material: Aluminum
- Tank Material: Aluminum
- Core Row Quantity: 1
- Core Thickness: Approximately 31mm / 1.25in
- Core Height: 14.75in
- Core Width: 27in
- Fan: 12in SPAL Electric Fan
- Inlet/Outlet Connections: -16AN or Slip-On
- Finish: Polished Aluminum
- Internal Oil Coolers: None
Included:
- (1) CSF 7075 Full-Size Slim Aluminum Radiator
- (1) 12in SPAL Electric Fan
- (1) Aluminum Fan Shroud
- -16AN and Slip-On Connection Fittings
- Radiator Cap
- Aluminum Drain Plug
Fitment:
- 2003–2006 Mitsubishi Lancer Evolution -- 2.0L Turbocharged I4
- 2005–2006 Mitsubishi Lancer Evolution MR -- 2.0L Turbocharged I4
- 2005–2006 Mitsubishi Lancer Evolution RS -- 2.0L Turbocharged I4
- 2006 Mitsubishi Lancer Evolution SE -- 2.0L Turbocharged I4
Notes:
- Fan wiring requires adaptation to the vehicle’s electrical connections
- Evo VII/VIII/IX factory fan-control module must be relocated; mounting provisions for the module are not included
- Verify clearance with aftermarket turbochargers, manifolds and coolant hoses
- Evo IV/V/VI applications require additional fitment work; the radiator does not clear the factory hood without modification
- Reuses OE mounting hardware; mounting hardware is not included
- Thermostat is not included
Product Specs
SKU:
7075
Brand:
CSF
