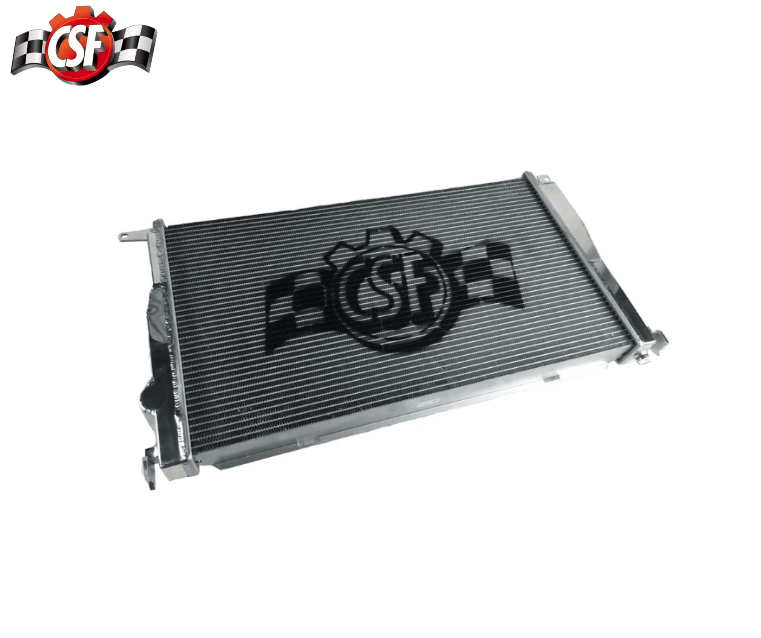

CSF All Aluminum Racing Radiator For 2007-2016 BMW 135i, 335i, Z4 Turbo N54 N55

SKU: 7046

SELECT FITMENT

See If This Product Fits Your Vehicle

$609.00
$609.00

Free Shipping

Free ground shipping on all orders over $100

BMW’s switch to turbocharged engines with direct fuel injection created the first European straight-six capable of taking on the Japanese. The N54 engine was an instant hit among tuners, and big hp builds have populated the forums and Instagram posts ever since. Any N54 can have Hellcat-hunting-horsepower with the right parts, including those that don’t directly contribute to the power figures. Keeping your BMW engine cool is essential for reliable, maximum performance, as overheating it typically means an expensive repair. If you want to hurt feelings in a sleeper 335i or put down consistent fast laps around Lime Rock Park in a 135i, you should consider fitting the all-aluminum CSF 7046 radiator.

The E90 335i, E82 135i, and E89 Z4 sDrive35i are incredibly capable platforms. Their interchangeability of suspension components and highly-developed chassis make them potent competitors in motorsport. With so much high-performance potential, you must keep the engine safe as each drive gets more aggressive. Upgrading the OE N54 radiator to the CSF 7046 is an easy way to prevent the damage caused by overheating, like warped cylinder heads and seized bearings.

The all-aluminum construction eliminates the plastic tanks for better cooling efficiency, although the revised core put in most of the work. The 2-row, triple-pass core is thicker than the OE and forces the coolant to stay in the radiator for longer, allowing the B-shaped tubes and ultra-efficient fins to pull the heat out of any N54's cooling system. The B-shaped tubes are the real magic; made from a thinner and more efficient material, the funky shape design improves heat transfer by 15% over the standard tube. Put that performance together with its drop-in fit that doesn’t require any modification, and you get the easiest reliability modification you can make.

Features:
  • All-aluminum tank and core
  • CNC-machined OE quick connect fittings
  • 42mm 2-Row, Triple-pass core
  • CSF-exclusive “B-tube” design
  • Ultra-efficient fins with 6.5mm fin height and multi-louvered design
  • CNC-machined Brackets
  • Drop-in fit requires no modification for install
Specifications:
  • Grade Type: Performance
  • Core Material: Aluminum
  • Core Row Quantity: 2
  • Internal Transmission Oil Cooler: Yes
  • Internal Engine Oil Cooler: No
  • Down Flow or Cross Flow Type: Cross Flow
  • Tank Material: Aluminum
  • Finish/Color: Satin
  • Installation Type: Drop-In Fit Installation
  • Mounting Type: Mounts with OE Hardware
  • Inlet Connector Type: Quick Connect
  • Inlet Diameter: 1.5 in.
  • Inlet Location: Top Right
  • Outlet Connector Type: Quick Connect
  • Outlet Diameter: 1.5 in.
  • Outlet Location: Bottom Left
Fitment:
  • 2011-2012 BMW 1M
  • 2007-2011 BMW 335i
  • 2009-2011 BMW Z4 sDrive30i
  • 2009-2016 BMW Z4 sDrive35i
Included:
  • (1) Performance Aluminum Radiator

Note:

  • 2 Year Limited Warranty
