Customs Unlimited 10-Row Ultra High Intensity LED Wheel Light Kit - White
SKU:
CU-WL-10R-WHT-17-UP | HD
SELECT FITMENT
See If This Product Fits Your Vehicle
- $750.00
- $750.00
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99

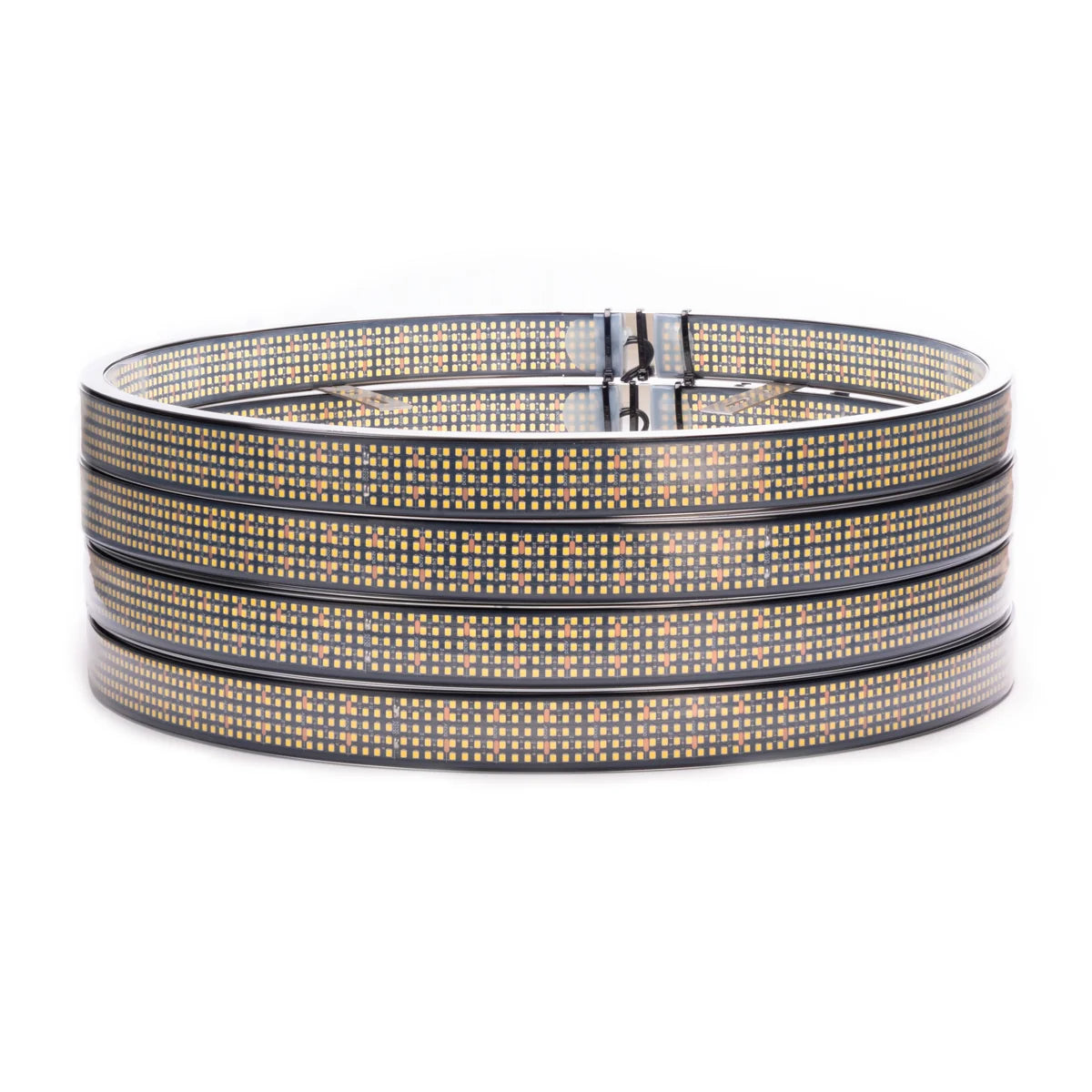

Ten rows of high-output white LEDs per ring put this kit among the brightest wheel lighting available. The rings mount inside the wheel and wash the barrel, spokes, and ground with even light - built for show trucks, but sealed and fused to hold up to daily driving.
Each ring arrives fully assembled with an 11-foot lead, so installation is a bolt-in and a wire run rather than a build. Control runs through the included remote or over Bluetooth from a phone, with breathing, blinking, and strobe patterns plus zone-by-zone adjustment. The IP67 housings are sealed against rain, mud, snow, and pressure washing, and keep working fully submerged.
Features:
- Ten rows of high-output white LEDs per ring
- Pre-assembled rings with 11 ft leads - no splicing required
- Remote control and Bluetooth app control included
- Breathing, blinking, and strobe patterns with independently adjustable zones
- IP67 sealed housings rated for full submersion
- In-line fuse and mounting hardware included
- Fits cars, trucks, and SUVs
Specifications:
- LED Rows: 10 Per Ring
- LED Color: White
- Voltage: 12V-14V DC
- Power Draw: 464W
- Current Draw: 36A
- Ingress Rating: IP67
- Lead Length: 11 ft Per Ring
- Control: Remote and Bluetooth
Included:
- (4) Pre-Assembled 10-Row White Wheel Light Rings with 11 ft Leads
- (1) Waterproof Bluetooth Module
- (1) Remote Control
- (1) In-Line Fuse
- Mounting Hardware
Fitment:
- Standard 17.5in - wheels with a 20in or larger inner diameter, fits most standard trucks
- Dually 20in - dually applications with larger brake systems, wheel light extensions recommended and sold separately
- Universal fit across cars, trucks, and SUVs
Notes:
- Lifetime Limited Warranty, serviced and supported by Customs Unlimited
- Warranty excludes modifications, alterations, and misuse
- Measure inner wheel diameter before ordering to confirm size
- 36A total current draw - verify circuit capacity before installation
