Customs Unlimited OEM-Style Bed Lighting Kit For 2015-2020 Ford F-150
SKU:
CU-BL-4580
SELECT FITMENT
See If This Product Fits Your Vehicle
- $140.00
- $140.00
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99

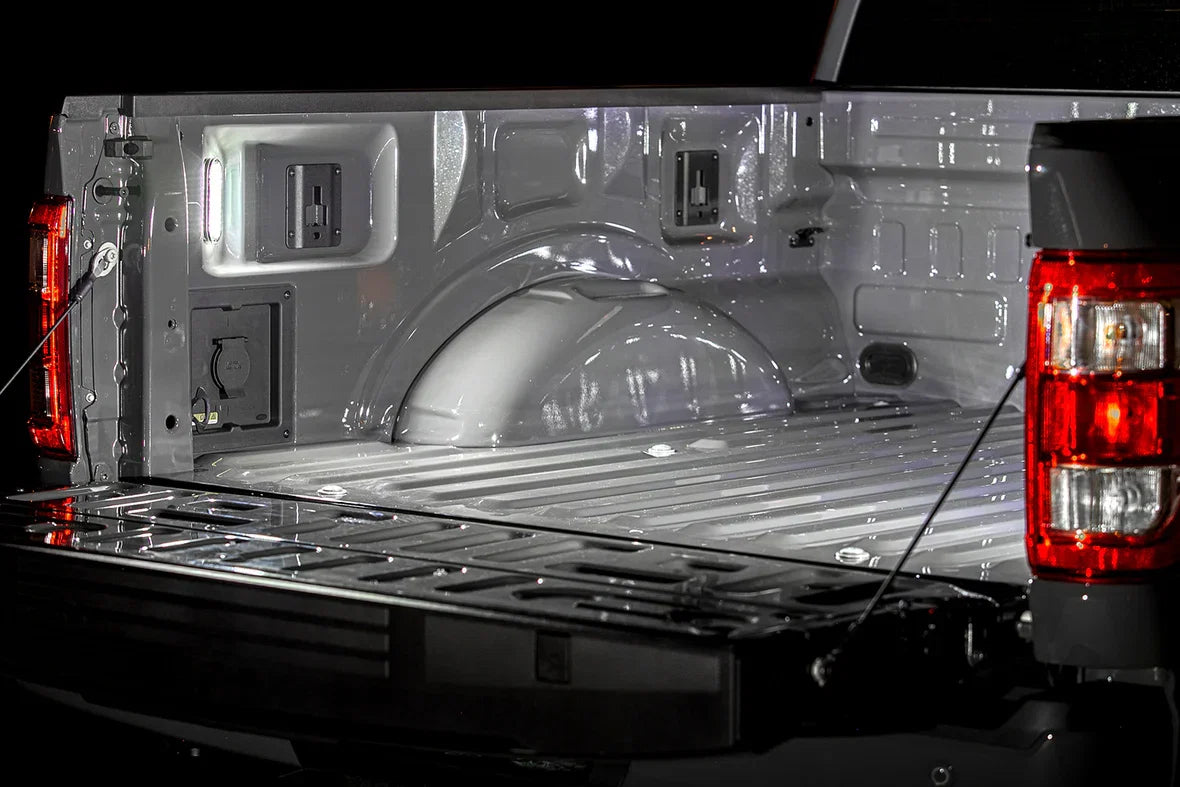

Want to add OEM-style bed lighting to your F-150? This kit adds a premium cargo box lighting system in minutes, with the quality normally found only from the factory.
The kit is completely plug-and-play on some trucks. Check whether your truck is pre-wired before ordering - see the notes below.
Features:
- Lamps illuminate when you open the door or unlock with the key fob, and fade off automatically when the truck is started or the doors are locked
- Can also be controlled with the over-cab light button on the headlight switch
- IP67 rated - fully waterproof against high-pressure spray
- UV-treated polycarbonate lens for rugged, dependable service
- 6000K white LEDs match the factory trailer assist lamp
- No dealership trip for BCM re-programming, unlike the OEM Ford kit
- Includes a plug-and-play Y-adapter that connects the LED lamps to the factory harness
Included:
- (2) LED Lamps
- Wiring extensions for the lamps
- (1) Plug-N-Play C431 Y-Adapter Harness
- Detailed installation manual and video
Fitment:
- 2015-2020 Ford F-150
Notes:
- Lifetime Warranty serviced and supported by Customs Unlimited
- Warranty does not cover modifications, alterations, or misuse
- Modifications to the plug or hardwiring the unit will void the warranty
- Your truck must be pre-wired for the Y-adapter to power the bed lighting. All trucks have the connector, but not all are pre-wired
- 2015-2017: on at least one plug, Pin #6 (black with yellow stripe) and Pin #7 (purple) must be present - note there is a brown wire with a purple stripe that looks similar
- 2018-2020: Pin #6 (black with yellow stripe) and Pin #7 (white with green stripe) must be present - note there are TWO white with green wires on one side, and you must have BOTH
- In rare cases some 2015 and 2020 trucks have a black connector in place of the normal one. The kit works with minor modification - see the instruction manual
- All trucks with the Trailer Assist Lamp, and select trucks with a factory tow package, are fully plug-and-play
Product Specs
SKU:
CU-BL-4580
Brand:
Customs Unlimited
