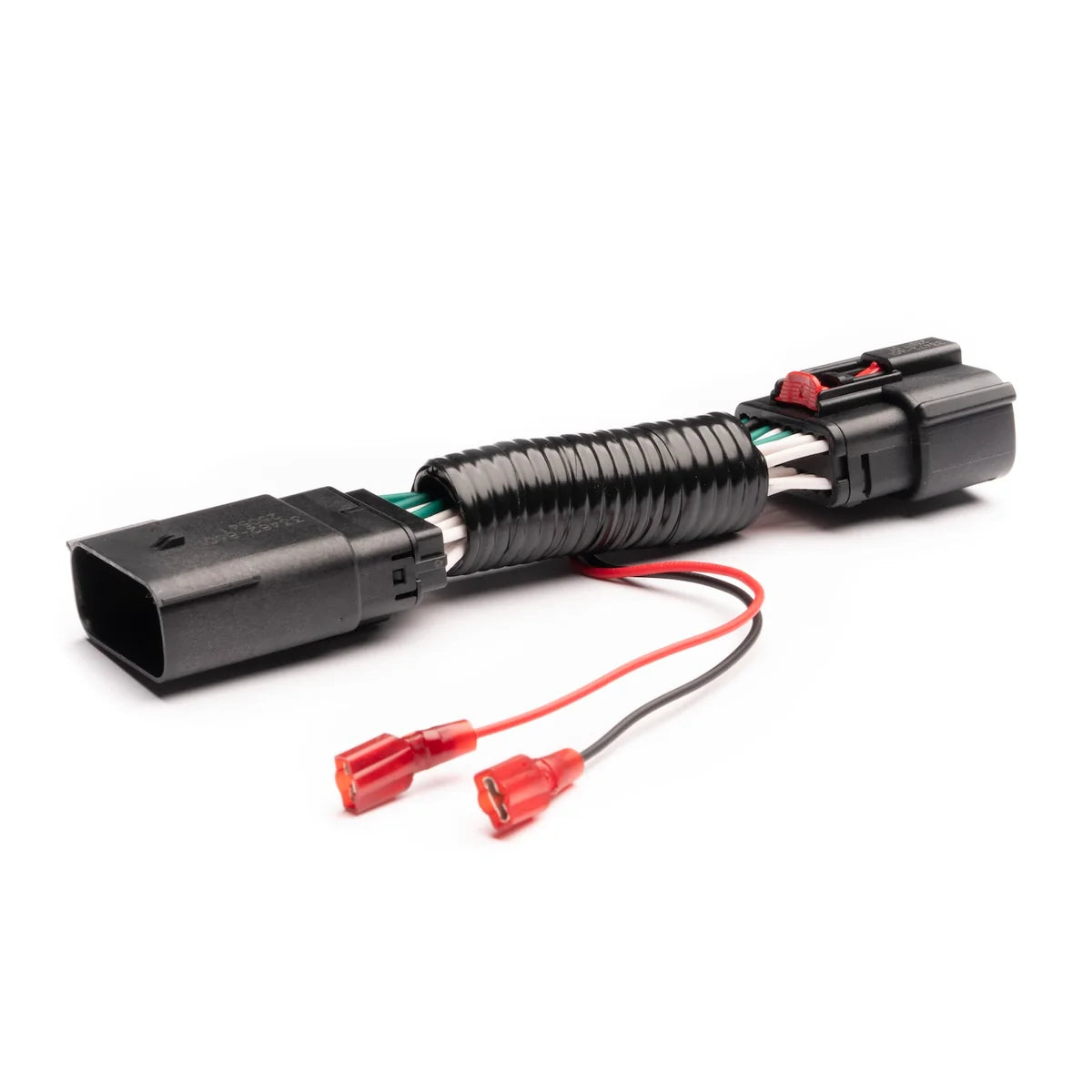

Customs Unlimited Plug-N-Play Headlight Harness For 2019-2024 Ram 1500 (Halogen Headlights)
Customs Unlimited Plug-N-Play Headlight Harness For 2019-2024 Ram 1500 (Halogen Headlights)
Customs Unlimited Plug-N-Play Headlight Harness For 2019-2024 Ram 1500 (Halogen Headlights)
Customs Unlimited Plug-N-Play Headlight Harness For 2019-2024 Ram 1500 (Halogen Headlights)
Customs Unlimited Plug-N-Play Headlight Harness For 2019-2024 Ram 1500 (Halogen Headlights)
Customs Unlimited Plug-N-Play Headlight Harness For 2019-2024 Ram 1500 (Halogen Headlights)
Customs Unlimited

Customs Unlimited Plug-N-Play Headlight Harness For 2019-2024 Ram 1500 (Halogen Headlights)

SKU: CU-HRN-PNP-10432

SELECT FITMENT

See If This Product Fits Your Vehicle

$54.00
$54.00

Free Shipping

Free ground shipping on all orders over $99
Circuits: Parking Only (2019-2023)
Description

Looking for a way to connect grille-mounted marker lights, accent lights, or backlit LED pods to your 2019-2024 Ram 1500 with factory halogen headlights? These adapters plug into the factory headlight connector - no cutting or splicing - and give you switched power straight off the headlamp circuits.

Two options are available. Pick based on how many circuits you need to tap; both use the same plug-and-play factory connection.

Features:

  • Provides access to select headlamp circuits with no cutting or splicing
  • Powers accent lights, turn signals, and grilles with LED running/marker lights
  • Simple way to power backlights found on LED light bars and pods
  • Works with LEDs using integrated switchback turn signals
  • Can be used as a relay trigger
  • Plugs directly into the existing factory headlight connector
  • Maintains your factory headlight warranty
  • Only OEM components used
  • Assembled in the USA

Options:

  • Parking Only (2019-2023) - Taps the parking light circuit only. Includes the plug-and-play adapter.
  • Parking + Turn Signal + Ground - Taps parking, turn signal, and ground. Includes a 6-inch adapter with weatherproof connectors and a Deutsch pigtail.

Specifications:

  • Max Continuous Amp Draw (Per Circuit): 2A
  • System Voltage: 12V
  • Adapter Length: 6 inches

Fitment:

  • 2019-2024 Ram 1500 Tradesman
  • 2019-2024 Ram 1500 Big Horn (with halogen headlights)
  • 2019-2024 Ram 1500 Laramie (with halogen headlights)

Notes:

  • Lifetime Warranty serviced and supported by Customs Unlimited
  • Warranty does not cover modifications, alterations, or misuse
  • Modifications to the plug or hardwiring the unit will void the warranty
  • The Parking Only option is listed by Customs Unlimited for 2019-2023 only; the multi-circuit option covers 2019-2024
  • If your make, model, year, and headlight type are not listed above, this harness will not work for your vehicle
Fitment
Fitment

Product Specs

SKU:
CU-HRN-PNP-10432
Brand:
Customs Unlimited
