Customs Unlimited Plug-N-Play Headlight Harness For 2019-2024 Ram 2500/3500 (LED Headlights)
SKU:
CU-HRN-PNP-10332
SELECT FITMENT
See If This Product Fits Your Vehicle
- $54.00
- $54.00
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99

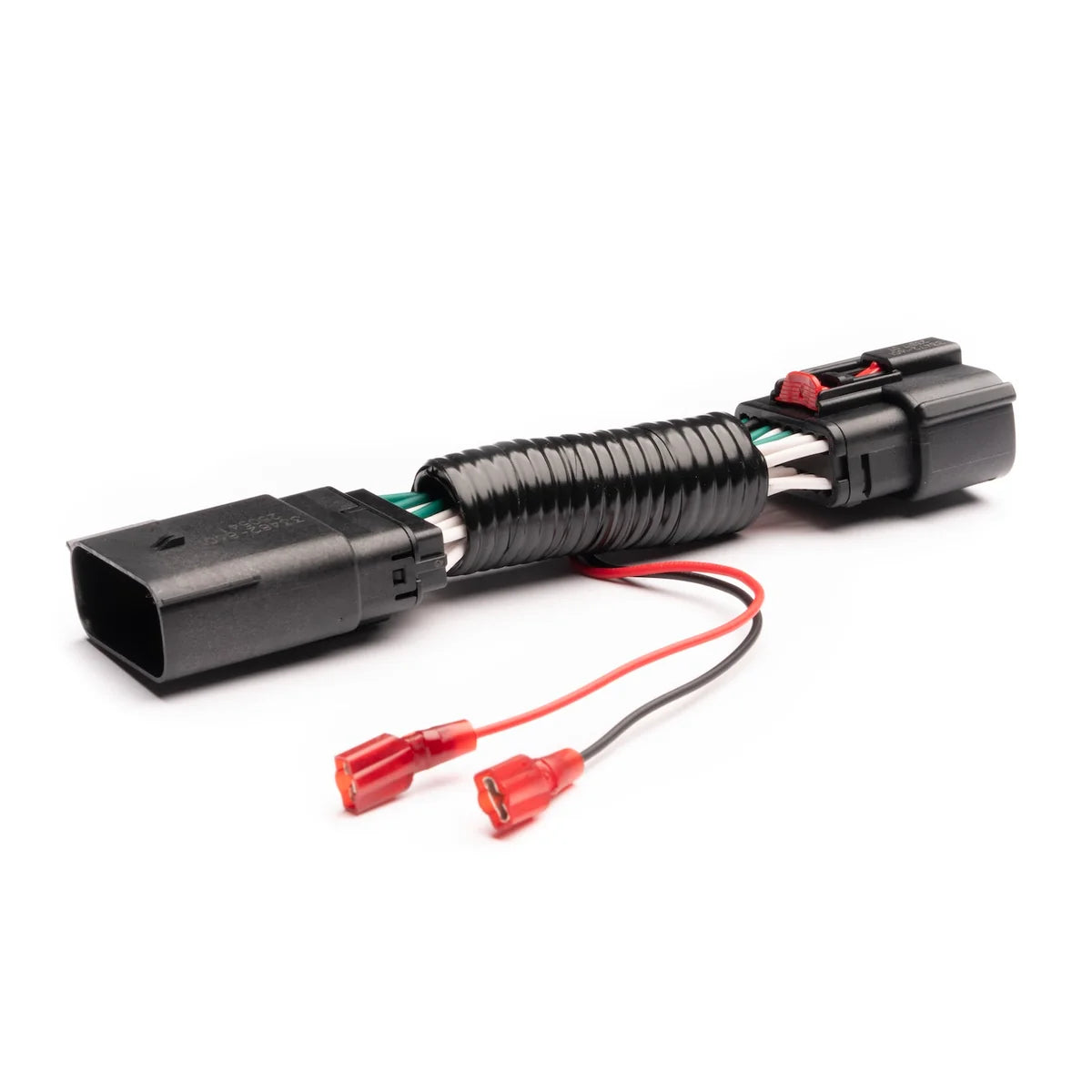

Looking for a way to connect grille-mounted marker lights, accent lights, or backlit LED pods to your 2019-2024 Ram 2500/3500 with factory LED headlights? These adapters plug into the factory headlight connector - no cutting or splicing - and give you switched power straight off the headlamp circuits.
The multi-circuit option is built for AFLS (Active Forward Lighting System) adaptive LED projector headlamps, which use a 16-pin connector and swivel up to 15 degrees. Two options are available. Pick based on how many circuits you need to tap; both use the same plug-and-play factory connection.
Features:
- Provides access to select headlamp circuits with no cutting or splicing
- Powers accent lights, turn signals, and grilles with LED running/marker lights
- Simple way to power backlights found on LED light bars and pods
- Works with LEDs using integrated switchback turn signals
- Can be used as a relay trigger
- Plugs directly into the existing factory headlight connector
- Maintains your factory headlight warranty
- Only OEM components used
- Assembled in the USA
Options:
- DRL Only - Taps the DRL circuit only. Includes the plug-and-play adapter.
- Parking + DRL + Turn Signal + Ground (AFLS) - Taps parking, DRL, turn signal, and ground on AFLS adaptive projector headlamps. Includes a 6-inch adapter with weatherproof connectors and a Deutsch pigtail.
Specifications:
- Max Continuous Amp Draw (Per Circuit): 2A
- System Voltage: 12V
- Adapter Length: 6 inches
Fitment:
- 2019-2024 Ram 2500/3500 Limited
- 2019-2024 Ram 2500/3500 Limited Longhorn
- 2019-2024 Ram 2500 Power Wagon
- 2023-2024 Ram 2500 Rebel
Notes:
- Lifetime Warranty serviced and supported by Customs Unlimited
- Warranty does not cover modifications, alterations, or misuse
- Modifications to the plug or hardwiring the unit will void the warranty
- DRL Only option: Power Wagon and Rebel fit Level 2 Equipment Group only
- Multi-circuit option requires AFLS Adaptive LED projector headlamps with the 16-pin connector
- If your make, model, year, and headlight type are not listed above, this harness will not work for your vehicle
