Customs Unlimited Plug-N-Play Headlight Harness For 2021-2025 Ford F-150 (LED Headlights)
SKU:
CU-HRN-PNP-4732
SELECT FITMENT
See If This Product Fits Your Vehicle
- $54.00
- $54.00
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99

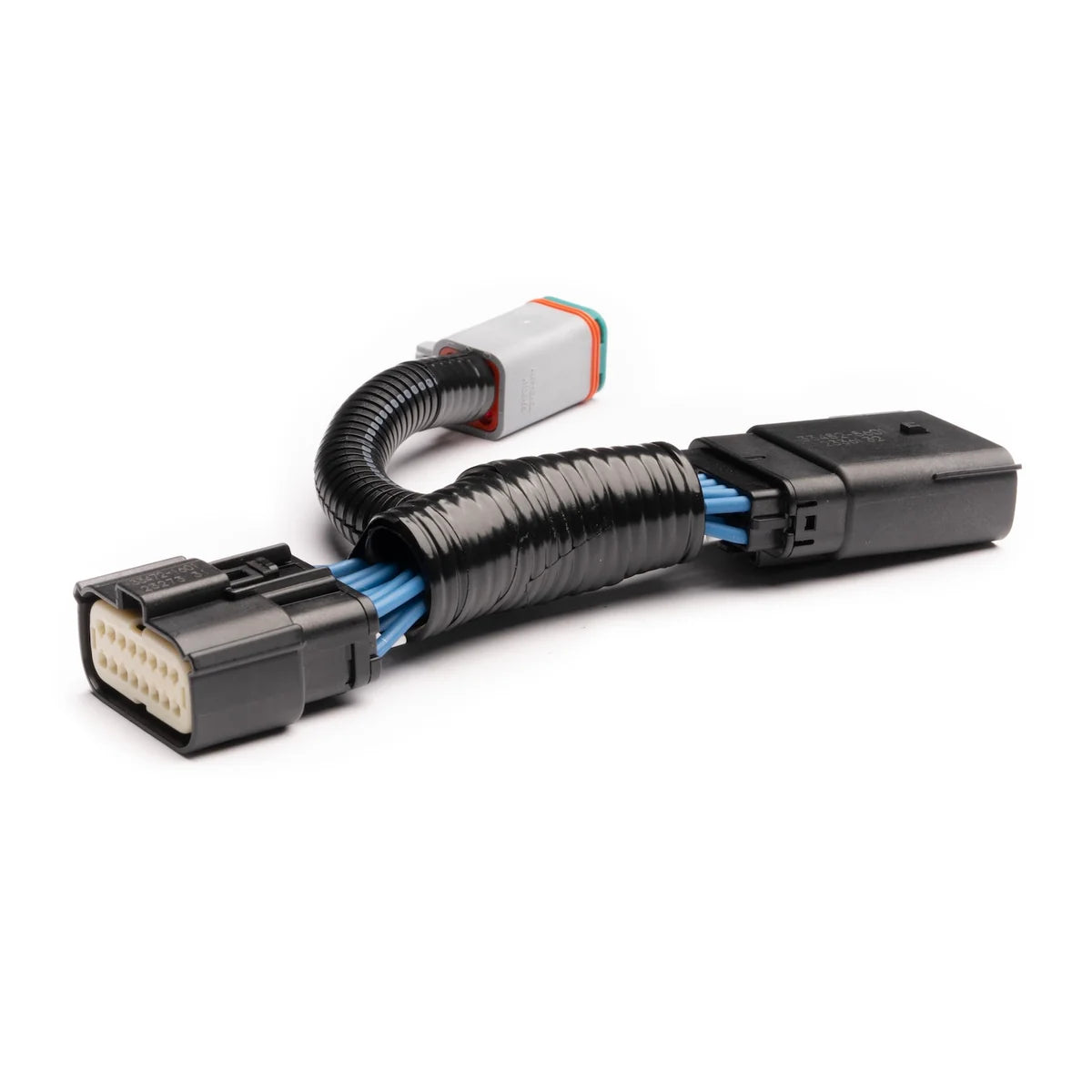

Looking for a way to connect accessories to the DRL, parking, or turn circuits on your F-150 LED headlights? These adapters plug into the factory headlight connector - no cutting or splicing - and give you switched power straight off the headlamp circuits.
Two options are available. Pick based on how many circuits you need to tap; both use the same plug-and-play factory connection.
Features:
- Provides access to DRL, parking, turn signal, and ground circuits
- Only OEM-quality connectors and wire used
- Powers accent lights, turn signals, Raptor-style FORD letter grilles, or any grille with LED running/marker lights
- Makes powering backlights on LED light bars and pods simple
- Simple way to control LEDs with integrated switchback turn signals
- Can be used as a relay trigger
- No cutting or splicing - plug into the factory connections, then use the provided pigtail for the desired circuits
- Maintains your factory headlight warranty
- Assembled in the USA
Options:
- Parking Only - taps the parking light circuit only. Includes a 6-inch adapter with weatherproof connectors and 3M Quick Connects. Fits LED Projector (Dual Beam with Dynamic Bending) headlights only. Max continuous draw 5A.
- DRL + Parking + Turn Signal + Ground - taps all four circuits. Includes the adapter and a pigtail for connecting the desired circuits.
Specifications:
- System Voltage: 12V
- Adapter Length: 6 inches
Fitment:
- 2021-2025 Ford F-150 with LED Projector headlights (Dual Beam with Dynamic Bending)
- 2021-2025 Ford F-150 with LED Reflector headlights (Quad Beam, Base LED) - multi-circuit option only, DRL and ground outputs only
Notes:
- Lifetime Warranty serviced and supported by Customs Unlimited
- Warranty does not cover modifications, alterations, or misuse
- Modifications to the plug or hardwiring the unit will void the warranty
- On LED Reflector (Quad Beam) headlights, only the DRL and ground outputs are functional on the multi-circuit option. For parking or turn signal access on those trucks, use the 2021-2023 F-150 Parking & Turn Signal Adapter instead
- The Parking Only option fits LED Projector headlights only
- Some circuits are programmed from the factory on a duty cycle that can output less than 12V in certain conditions - the DRL circuit may run at a lower duty cycle depending on ambient light. The adapter provides access to the circuit, but accessory brightness or function may vary
- This is not an amber override kit
- If your make, model, year, and headlight type are not listed above, this harness will not work for your vehicle
