Customs Unlimited Universal Backup/Auxiliary LED Lighting Kit For Trucks & SUVs
SKU:
CU-ALK-UNV-5201
SELECT FITMENT
See If This Product Fits Your Vehicle
- $249.99
- $249.99
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
The Customs Unlimited Backup / Auxiliary Lighting Kit is a complete rear lighting upgrade for trucks and SUVs that need better visibility while backing up, towing, working, or loading gear at night. Factory reverse lights often fall short in dark parking lots, job sites, campgrounds, boat ramps, and trailer hookup situations.
The kit adds a pair of auxiliary LED lamps to the rear of the vehicle, each producing roughly 1,200 lumens through a 40-degree flood beam for wide coverage behind the truck. Lamps run off the included cabin switch and can optionally be wired to activate in reverse. The harness draws power directly from the battery, and no factory wiring needs to be cut.
Features:
- Complete kit - LED lamps, wiring, switch, connectors, and mounting hardware included
- Approximately 1,200 lumens per lamp for strong rear-facing output
- 40-degree flood beam pattern for wide coverage behind the vehicle
- Manual cabin switch allows the lights to be turned on anytime, even with the vehicle off
- Optional reverse activation - can be wired to come on automatically in reverse
- Compatible with factory upfitter/auxiliary switches if equipped
- Battery-direct harness avoids strain on the factory electrical system
- No cutting of factory wires required
Specifications:
- Lamp Power: 18W each
- Approximate Output: 1,200 Lumens per lamp
- Beam Pattern: Flood
- Beam Angle: 40 Degrees
- System Voltage: 12V
- Switch Control: Manual Cabin Switch
- Reverse Trigger: Optional
- Factory Upfitter Switch Compatible: Yes
- Power Source: Battery-Direct Harness
- Connector Type: Weatherproof
- Factory Wire Cutting Required: No

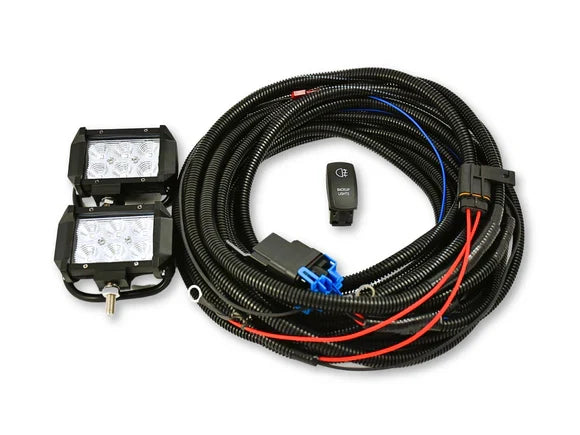

Included:
- (2) 18W LED Auxiliary Lamps
- (1) Backup/Auxiliary Lighting Harness
- (1) Cabin Control Switch
- Weatherproof Lamp Connectors
- Mounting Hardware
- Installation Instructions
Fitment:
- Universal - fits most trucks and SUVs
- Common applications: pickup trucks, SUVs, work trucks, tow vehicles, off-road and overland builds, snow plow trucks
Notes:
- Lifetime Warranty serviced and supported by Customs Unlimited
- Warranty does not cover improper installation, modification, misuse, incorrect wiring, physical damage, water intrusion from improper installation, overloaded circuits, or unauthorized alterations
- Universal-style kit - lamp mounting location, switch location, and wiring route vary by vehicle. Mounting hardware is included, but some custom placement may be required depending on your bumper, hitch, or rear-end setup
