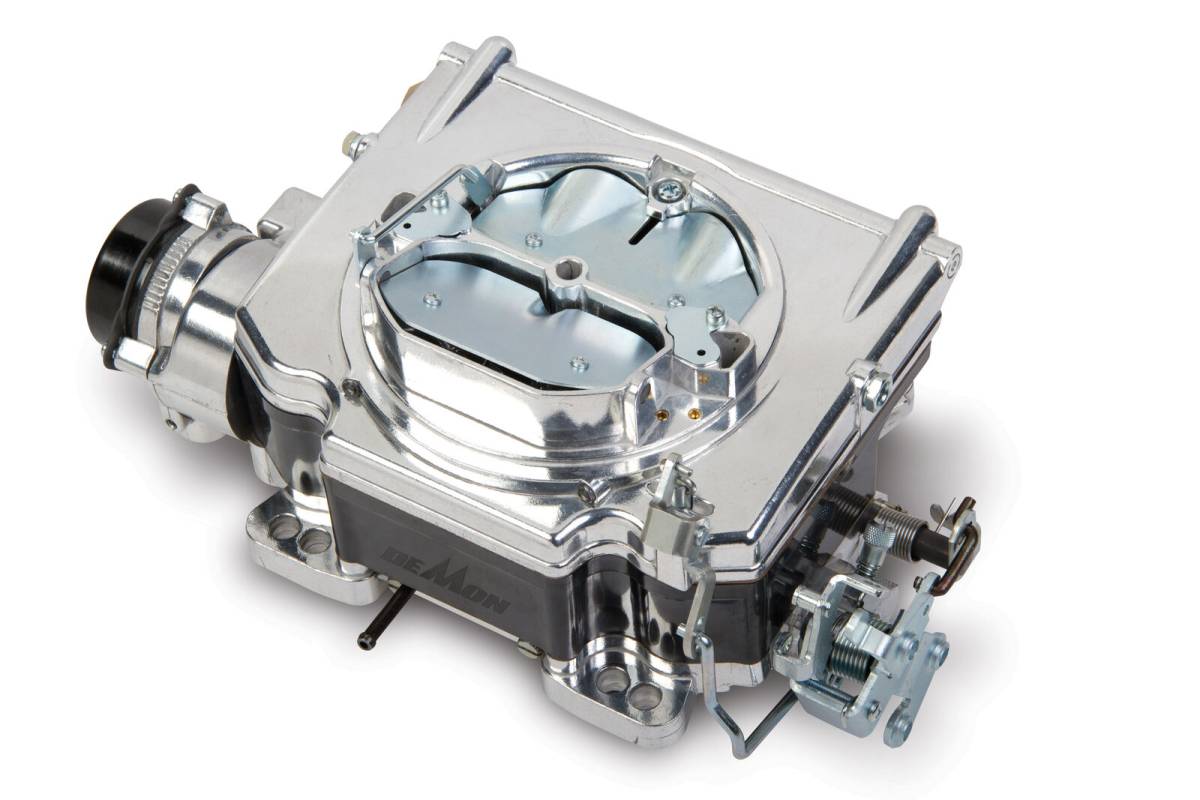

Demon 750 CFM Street Demon Carburetor With Square Bore Flange 5 3/16" x 5 5/8"

SKU: 1904

SELECT FITMENT

See If This Product Fits Your Vehicle

$549.95
$549.95
$0.00

Free Shipping

Free ground shipping on all orders over $99

750 CFM STREET DEMON CARBURETOR

WICKED POWER! The ALL NEW Street Demon® redefines the street carburetor with clean looks and ease of use! The Street Demon offers enthusiasts a straight-forward carburetor designed to deliver a stable idle, amazingly crisp throttle response and smooth performance. Its optimized calibration and dual mounting pattern make it Run-Ready™ for a large variety of engines and vehicles!



Features:

  • Vacuum secondaries and electric choke
  • Ball burnished shiny aluminum with black composite fuel bowl
  • Designed for use on most stock to mildly modified V8s
  • Developed from the ground up with smooth styling - patented timeless design fits modern as well as traditional themed vehicles (Patent No.: US D648,746 S)
  • One piece airhorn is easy to clean and maintain
  • Electric Choke Management means easy cold starts
  • Dual mounting bolt pattern - fits most aftermarket spread/square bore intake manifolds without adapter
  • Integrated fuel bowl/main body design with gasket above fuel level and no plugged passages to eliminate all potential leak paths
  • Small 1-11/16” primary throttle bores combined with proven Triple-Stack™ boosters deliver amazingly crisp throttle response and drivability, superior fuel atomization and improved fuel economy
  • Goggle Valve Secondary (GVS™) throttle plate (Patent # D677755) delivers over twice the air flow of the primary bores for power you can hear and feel
  • GVS™ makes total air flow 750 CFM while maintaining the crisp throttle response delivered by small primary bores
  • Secondary air valve control - torsion spring valve control/adjustment permits seamless primary to secondary throttle response regardless of the throttle opening rate (unique contoured profile developed for better cylinder to cylinder fuel distribution)
  • 2 Stage metering rods control easily accessible without carburetor disassembly or removal
  • Single fuel inlet for simple installation
  • Integrated 700R4/200R4 transmission kickdown cable mounting location as well as Ford A/T kickdown for proper shifts
  • Patent pending mechanical design
  • 750 CFM specific calibration kit available for tuning and altitude adjustments
  • Available TPS kit allows use with 4L60 and 4L80 transmissions



Specifications:

  • Booster: Triple Stack
  • Carburetor Use: Street
  • CFM: 750
  • Choke: Electric
  • Fuel: Gasoline
  • Fuel Inlet: Single
  • Metering Rod Size: 56/40
  • Model: Street Demon
  • Primary Main Jet: 89
  • Primary Pump Nozzle Size: 40
  • Secondaries: Vacuum
  • Secondary Main Jet: 86
  • Step up Spring: Green
  • Vacuum Ports: 1 timed (spark) port, 2 full, and 1 PCV port



Note:

  • This model of carburetor has the square bore flange bolt pattern. It can replace Holley, Edelbrock, Carter AFB, and Autolite style carburetors with 5 3/16" x 5 5/8" bolt pattern.

Product Specs

SKU:
1904
Brand:
Demon Powersports
Condition:
New
