Diamond T Captive Clutch Torque Converter For 2015-2019 Ford F-150 5.0L 6R80
SKU:
FD15G506RST
SELECT FITMENT
See If This Product Fits Your Vehicle
- $519.99
- $519.99
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99

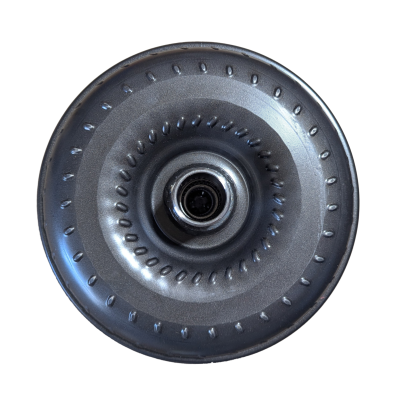

Upgrade your Ford F-150’s performance and reliability with the Diamond T Torque Converter (FD14G6RST), designed for the 2015-2019 5.0L with 6R80 transmissions. Each converter features a precision balanced 11-7/8" assembly with both 32 spline input and 27 spline stator for OE-level fit and premium strength
The captive clutch system ensures optimal lock-up and minimizes heat, making it ideal for towing, high-power upgrades, and extended heavy-duty use. The mill flats hub and riveted mounting plate guarantee a tight, factory-quality installation every time
Engineered and built in the USA from top-tier materials, each Diamond T torque converter is precision balanced to reduce vibration and extend the life of your drivetrain. You get a lifetime warranty—your assurance that you’re installing a truly reliable upgrade
From daily drivers to work trucks to performance builds, trust Diamond T for a torque converter that’s built for anything. American Made, Because It Matters
Features:
- Direct fit for Ford F-150 2015-19 5.0L models with 6R80 transmission
- 32 spline input and 27 spline stator design—engineered for direct fitment for easy installation
- Precision balanced 11-7/8" diameter for smooth operation and maximum efficiency
- Captive clutch for cooler running and superior lock-up
- Heavy-duty mill flats hub & riveted mounting plate for lasting reliability
- Includes 4 stud mounting with 10 x 1.0 threads, 11-7/16" bolt circle
- American Made: Built in the USA from premium components
- Ready for high-demand use—towing, tuning, daily driving, and performance applications
- American Made, Because It Matters
Fitment:
- 2015-2019 Ford F-150 5.0L 6R80
Included:
- Diamond T Torque Converter
- All Mounting Hardware
Note:
- Lifetime Warranty
Product Specs
SKU:
FD15G506RST
Brand:
Diamond T Enterprises
