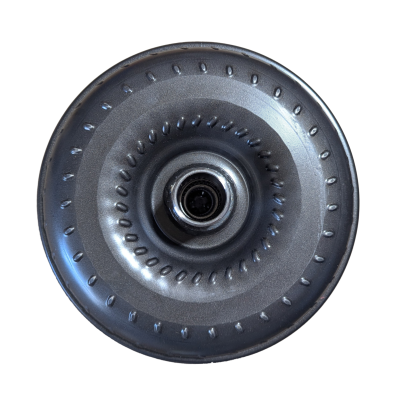

Diamond T Dual-Disk Captive Clutch Torque Converter For 2009-2020 Ford F-150/Expedition/Explorer/Mustang (Hub w/ Flats)
SKU:
FD15G6RST
SELECT FITMENT
See If This Product Fits Your Vehicle
- $519.99
- $519.99
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
These Torque Converters are built in the USA with the highest grade components and come with a Lifetime Non-Transferable Warranty for defects in material and workmanship under normal and proper use. They are designed to improve acceleration, pulling power, and efficiency of your vehicle to the max. Unlike other "mass produced" remanufactured torque converters, Diamond T technicians keep all of the original parts together during the remanufacturing process to assure a matched set of components. Other remanufacturers disassemble hundreds of torque converters and mix all of the parts in large bins. Keeping the parts together results in improved quality. All parts are inspected thoroughly and any marginal parts are replaced. They take the TIME to build quality into each and every Torque Converter. Many other companies do not measure the thickness of the housing and when they machine the surface it makes the metal too thin and leads to early failure. If your housing is less than the OEM specs, they replace it with a new one. The torque converters are precision balanced with a computerized balancer. Only the best clutch materials are used. Quality testing is performed on each and every Torque Converter before it leaves the facility
This warranty will be null and void if repair or replacement is required because of improper installation, accident, physical and, or, neglect, misuse or any other cause other than the ordinary and intended use for which the Product was designed, or if the Product has been dismantled, altered and, or, repaired by the customer or any third party
Features:
- Dual Disk Captive Clutch Converter
- For hubs with 2 Flats
- For 6R60/6R75/6R80 transmissions
- 11.75" Diameter with 32 Spline (27 Stator) 1.375" Pilot
- 4 Stud (10mm) Mounting @ 11-7/16"
- Steel Bearings
- Lifetime Warranty!
Fitment:
- 2009-2020 FORD F-150 2.7L
- 2018-2020 FORD F-150 3.3L
- 2014-2017 FORD F-150 3.5L
- 2014-2015 FORD F-150 2.7L TURBO
- 2014-2017 FORD F-150 2.7L ECOBOOST
- 2009-2017 FORD EXPEDITION 3.5L 6 SPD
- 2014-2015 FORD EXPLORER 3.5L
- 2014-2017 FORD MUSTANG 5.0L
- 2014-2017 FORD TRANSIT 150, 250, 350 3.5L
- 2017-2019 FORD TRANSIT 150, 250, 350 3.7L
- 2014-2017 LINCOLN NAVIGATOR 3.5L
Included:
- Diamond T Torque Converter
- All Mounting Hardware
Note:
- Will NOT fit transmissions designed for Slots
- You must verify that your truck has the 6R transmission. Most 2017 and later trucks have the 10R transmission
- Be sure to use the Motorcraft LV (Low Viscosity) Fluid and the Motorcraft Friction Modifier
Product Specs
SKU:
FD15G6RST
Brand:
Diamond T Enterprises
