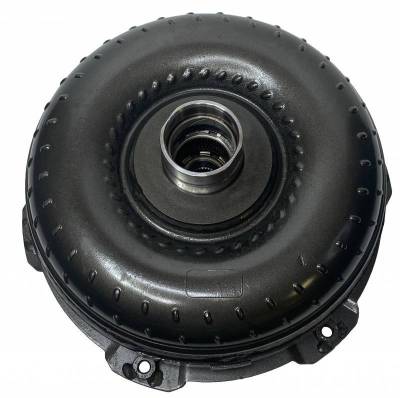

Diamond T Torque Converter For 2014-2023 GM 4.3/5.3/6.2L Gas 8L90 (non Start/Stop)
SKU:
GS8L90SR
SELECT FITMENT
See If This Product Fits Your Vehicle
- $714.99
- $714.99
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
These Torque Converters are built in the USA with the highest grade components and come with a Lifetime Non-Transferable Warranty for defects in material and workmanship under normal and proper use. They are designed to improve acceleration, pulling power, and efficiency of your vehicle to the max. Unlike other "mass produced" re-manufactured torque converters, Diamond T technicians keep all of the original parts together during the re-manufacturing process to assure a matched set of components. Other re-manufacturers disassemble hundreds of torque converters and mix all of the parts in large bins. Keeping the parts together results in improved quality. All parts are inspected thoroughly and any marginal parts are replaced. They take the TIME to build quality into each and every Torque Converter. Many other companies do not measure the thickness of the housing and when they machine the surface it makes the metal too thin and leads to early failure. If your housing is less than the OEM specs, they replace it with a new one. The torque converters are precision balanced with a computerized balancer. Only the best clutch materials are used. The torque converters are pre-charged with transmission fluid. This helps to prevent rust on the internal components leading to early failure in case it is exposed to any humidity before installation. Quality testing is performed on each and every Torque Converter before it leaves the facility
Features:
- Updated Clutch Design
- Direct Stock Replacement **(see fitment details below)
- Stock Stall Speed
- Lifetime Warranty!
Specifications:
- Diameter: 11"
- Height: 3.470"
- Spline: 54 Spline, 27 Blades, 36 Internal Spline
- Pilot: 1.700" Diameter, 1.105" Long
- Hub: Milled Flats, 2.305" OD, 1.435" Long
- Mounting: Plate Riveter to Front Cover with 6 Pads, 10mm x 1.5 Threads, 11-1/2" Bolt Circle
- Clutch: Captive Clutch, Rivets Visible from Front Cover
- METAL STAMP: 24279497, 24285996, 24290214, 24264543, 24280633, 24274485, 24285996, 24286975, 24281895, 24284689, 24284689, 24297076
Fitment:
- 2015-2017 CADILLAC ESCALADE 6.2L
- 2016-2017 CHEVROLET CAMARO SS 6.2L
- 2018-2023 CHEVROLET EXPRESS 2500 4.3L
- 2018-2023 CHEVROLET EXPRESS 3500 4.3L
- 2016-2018 CHEVROLET SILVERADO 1500 5.3L
- 2014-2018 CHEVROLET SILVERADO 6.2L
- 2016-2017 CHEVROLET TAHOE 6.2L
- 2018-2023 GMC SAVANA 2500 4.3L
- 2018-2023 GMC SAVANA 3500 4.3L
- 2016-2018 GMC SIERRA 1500 5.3L
- 2014-2018 GMC SIERRA 6.2L
- 2008-2018 GMC YUKON 6.2L
Included:
- Diamond T Torque Converter
Note:
- Will NOT Fit Stop/Start Vehicles
- If your vehicle came from the factory with Stop/Start, you can not use this converter even if you have removed the Stop/Start feature with tuning. You would need to purchase a Stop/Start convert (GS8L9019SS) for it to properly install
Product Specs
SKU:
GS8L90SR
Brand:
Diamond T Enterprises
