DieselRx DRX09SMP Fuel Sump - Universal

The Diesel Rx universal fuel sump helps aid aftermarket fuel systems when pulling fuel from the tank by working with gravity to pull fuel from the tank. The installation of our fuel sump eliminates the common 1/4 tank suction issue associated with a draw straw-style fuel pickup. This sump is manufactured in America using corrosion resistant components.

The Diesel Rx Fuel Sump Advantage:

- Only a 4.5" DIA. Mounting Flange

- Can be Installed Without Dropping the Fuel Tank

- Includes Alignment Set Screws to Aid in Installation

- Uses Corrosion Resistant Components

- Installation Takes Less Than an Hour

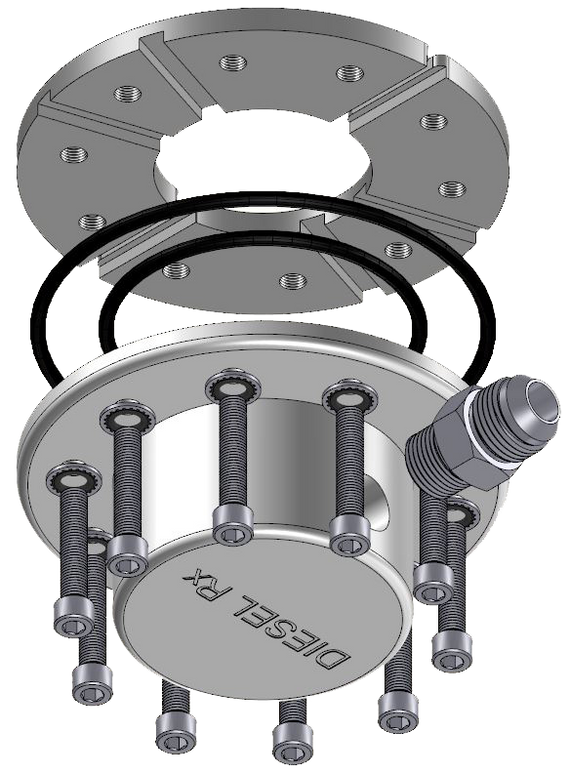

The Kit Includes:

1 Anodized Aluminum Sump Bowl

2 Anodized Aluminum Sandwich Plates

1 Brass 1/2" Male Push to Lock to -8AN Female Fitting

1 Zinc Plated Male 3/8" NPT to Male -8AN Fitting

10 Stainless Steel 1/4"-20 Socket Head Cap Screws

10 Zinc Plated 1/4" Sealing Washers

1 Viton Inner O-ring Seal

1 Viton Outer O-ring Seal

4 Steel Alignment Set Screws (Used for Alignment Only, Then Discarded)

1 Packet of Thread Sealer
