Diode Dynamics 3" SS3 Sport Yellow with Amber Backlit Fog Light For 22-25 Toyota RAV4
SKU:
DD8828
SELECT FITMENT
See If This Product Fits Your Vehicle
- $400.00
- $400.00
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Replace your 2022–2025 Toyota RAV4 factory fog lights with the Diode Dynamics Stage Series SS3 Sport Fog Light Kit in 3000K Yellow—a direct-fit upgrade delivering up to 42% more output and the contrast-cutting advantage of warm yellow light. Plug-and-play harnesses connect to the factory fog circuit, and a precision-fit bezel provides a seamless OEM appearance with no cutting or drilling required. The SS3 Sport pods project 1,930 lumens of 3000K yellow light through an 80°x8° SAE-compliant fog beam—cutting through fog, rain, and snow with superior visibility over white light.
The SS3's TIR optic directs all LED output precisely into the beam, minimizing glare for oncoming traffic while maximizing your forward visibility. The integrated amber backlight activates with parking lights. Waterproof and built for all-season use, this kit is backed by Diode Dynamics' Lifetime Warranty—the ideal yellow fog light replacement for the 2022–2025 RAV4.
Features:
- Direct-fit replacement for factory fog lamps on 2022-2025 RAV4
- Delivers 1,930 lumens of warm 3000K yellow fog light output
- Up to 42% brighter than stock factory fog lamps
- Yellow light improves visibility in fog rain snow and dust
- Custom bezel provides seamless factory-style OEM appearance
- Plug-and-play harness connects to factory fog light circuit
- Integrated amber backlight activates with parking lights
- SAE-compliant for road-legal use in all 50 states
Specifications:
- Brand: Diode Dynamics
- Product Type: Replacement Fog Light Kit
- Series: Stage Series SS3
- Pod Model: SS3 Sport
- Pod Size: 3 Inch
- Beam Angle: Fog 80°x8°
- Output Color: 3000K Yellow
- Raw Lumens: 1,930 lm
- Measured Output: 1,300 lm
- Peak Beam Intensity: 9,050 cd
- Illuminance: 90.5 lux @ 10m
- Input Power: Main Beam 14.5W / Backlight 0.4W
- Current Draw: 1.1A @ 13.2V
- Operating Voltage: 9-30V
- Operating Temperature: -40°C to 85°C (-40°F to 185°F)
- LED Emitter: Osram Ostar Projection Compact / Lumileds Automotive Grade
- Connector: Deutsch DT
- Driver Features: Constant Current
- Materials: Polycarbonate Lens, Powdercoated Steel, Aluminum Casting, Rubber Gasket
- Cooling: Passive Pin-Fin Heatsink
- Polarity: Polarity Specific
- SAE Compliance: SAE J583 Foglamp / SAE J575 Durability Test
- Ingress Rating: IP69K Waterproof High Pressure

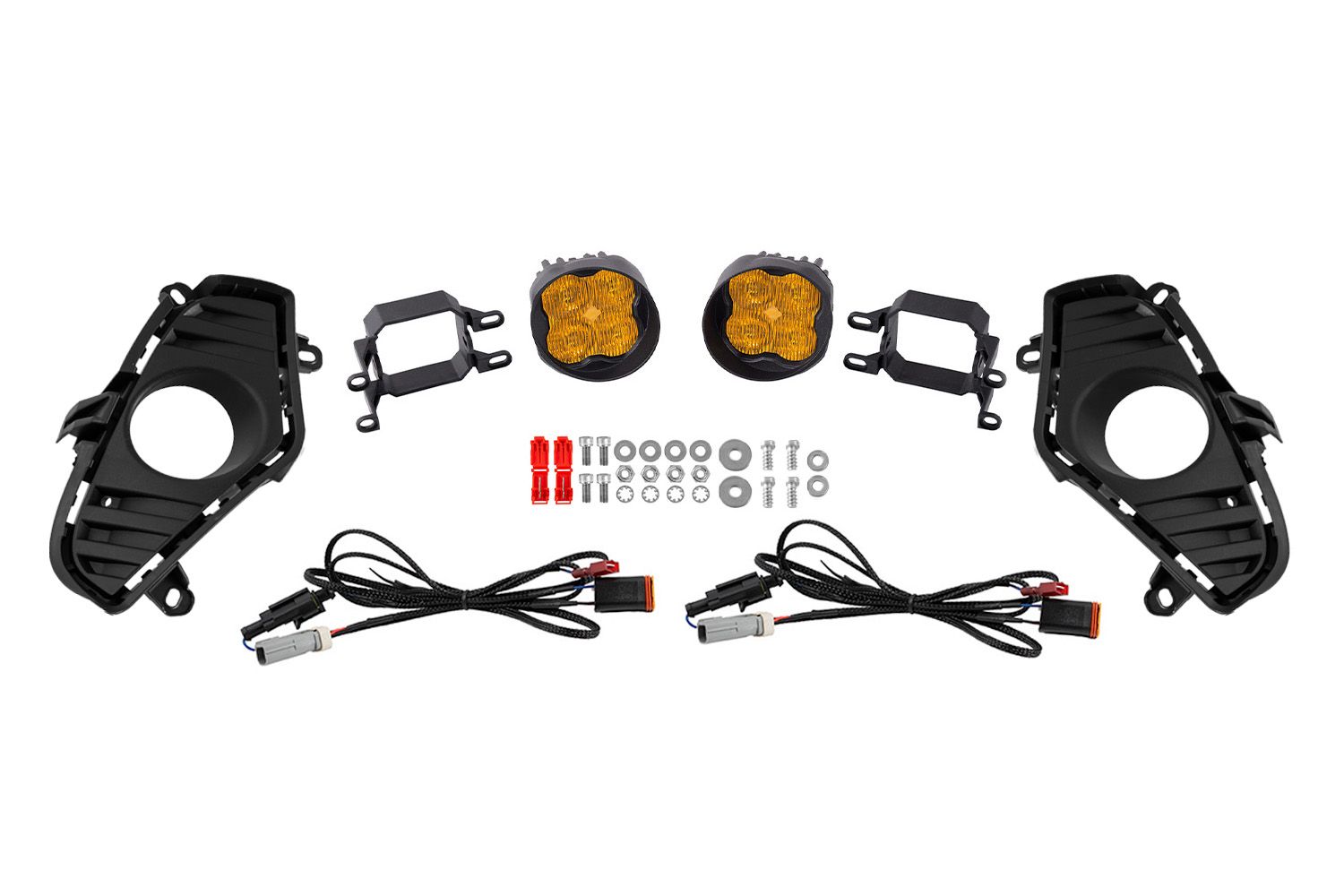

Included:
- (2) SS3 LED Pods
- (2) Type B brackets
- (2) OEM-Style Bezels
- (2) DJ70 4-pin DT backlight tap wires
- (1) Mounting Hardware Kit
Fitment:
-
2022–2025 Toyota RAV4
Note:
- Limited Lifetime Warranty
- This Kit is not compatible with TRD Off-Road/Adventure trim levels. This kit is a replacement for OEM fog lights
Product Specs
SKU:
DD8828
Brand:
Diode Dynamics
