Diode Dynamics DD7354 Stage Series Reverse Light Kit for 2021-2023 Ford Bronco
SKU:
DD7354
SELECT FITMENT
See If This Product Fits Your Vehicle
- $339.95
- $339.95
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Enhance your 2021-2023 Ford Bronco with the Diode Dynamics DD7354 Stage Series Reverse Light Kit. Featuring innovative Stage Series TIR optic technology, plug-and-play installation, and a unique red accent backlight, this kit provides powerful additional reverse lighting.
Features:
- Allows you to mount SSC1, SSC2, or SS3 pods to the spare tire on the 2021-2023 Ford Bronco.
- Custom-designed harness for simple wiring, with OEM connectors and aux switch override.
- Provides high-power reverse light, and red accent light.
- Bolts on to spare tire carrier using included 60mm or 90mm extension lugs.
- Designed and assembled in USA.

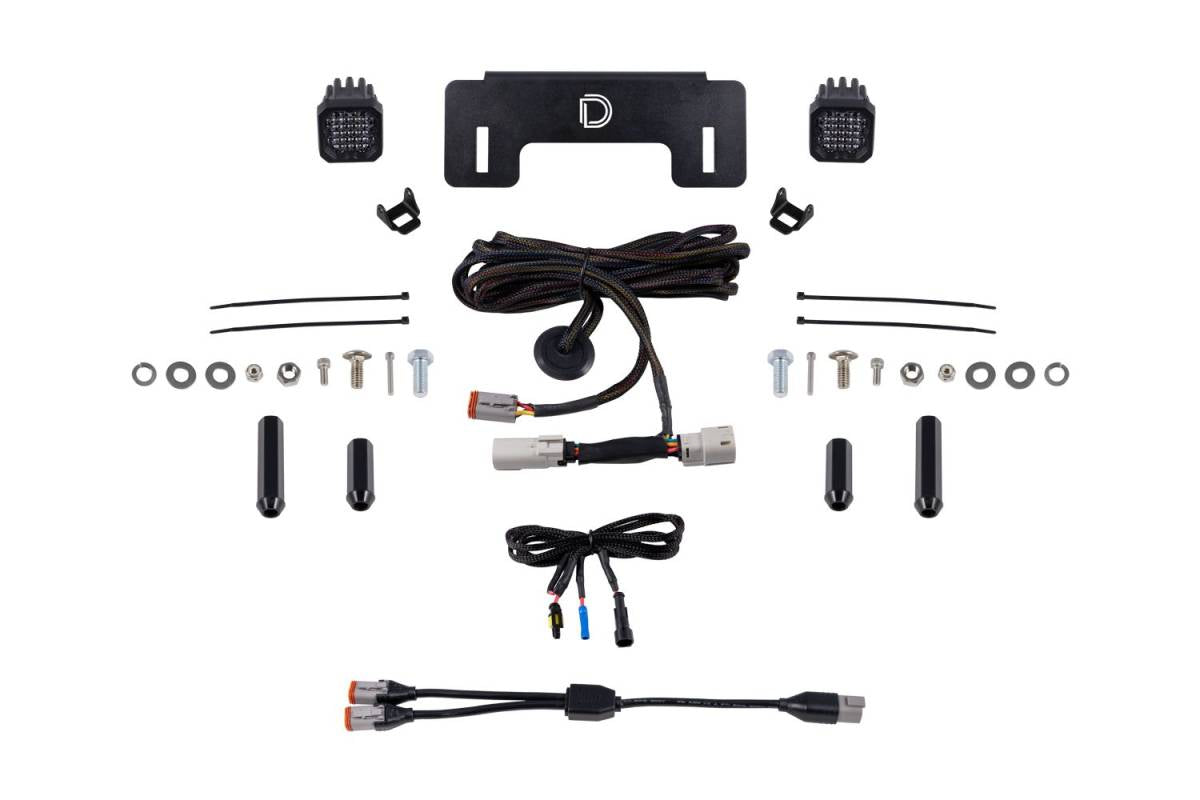

Included In the Box:
- Two SSC1 Standard LED Pods
- One Reverse Light Wiring Harness for 2021-2022 Ford Bronco
- One Deutsch DT 4-pin splitter wire
- One Mounting bracket
- Two 60 mm long lug nuts
- Two 90 mm long lug nuts
- Four Zip Ties
Specifications:
- SSC1 Current (amps @ 12.8V) Sport: 1, Pro: 1.5
- SSC1 Operating Voltage: 9-16V
- Color Temp (CCT): 6000K
- Beam Angle: Flood, 80°x50°
- Power (watts): SSC1 Sport: 12.8
- Polarity: Polarity Specific
- Operating Temperature: -40C to 85C (-40F to 185F)
- LED Emitter: Luxeon Z ES, Cree XP-L HI, Osram Boost HX
- Connector(s): Deutsch DT Input
- Driver Features: Constant Current
- Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket
- Cooling: Passive, Pin-Fin heatsink
- Compliance Ratings: SAE J575 Durability Test
- Intrusion Ratings: IP67 Weatherproof
- Unit Weight (lb): SSC1: 2.7
- Product Weight (lb): SSC1: 3.7
Fitment:
- 2021-2023 Ford Bronco
Product Specs
SKU:
DD7354
Brand:
Diode Dynamics
