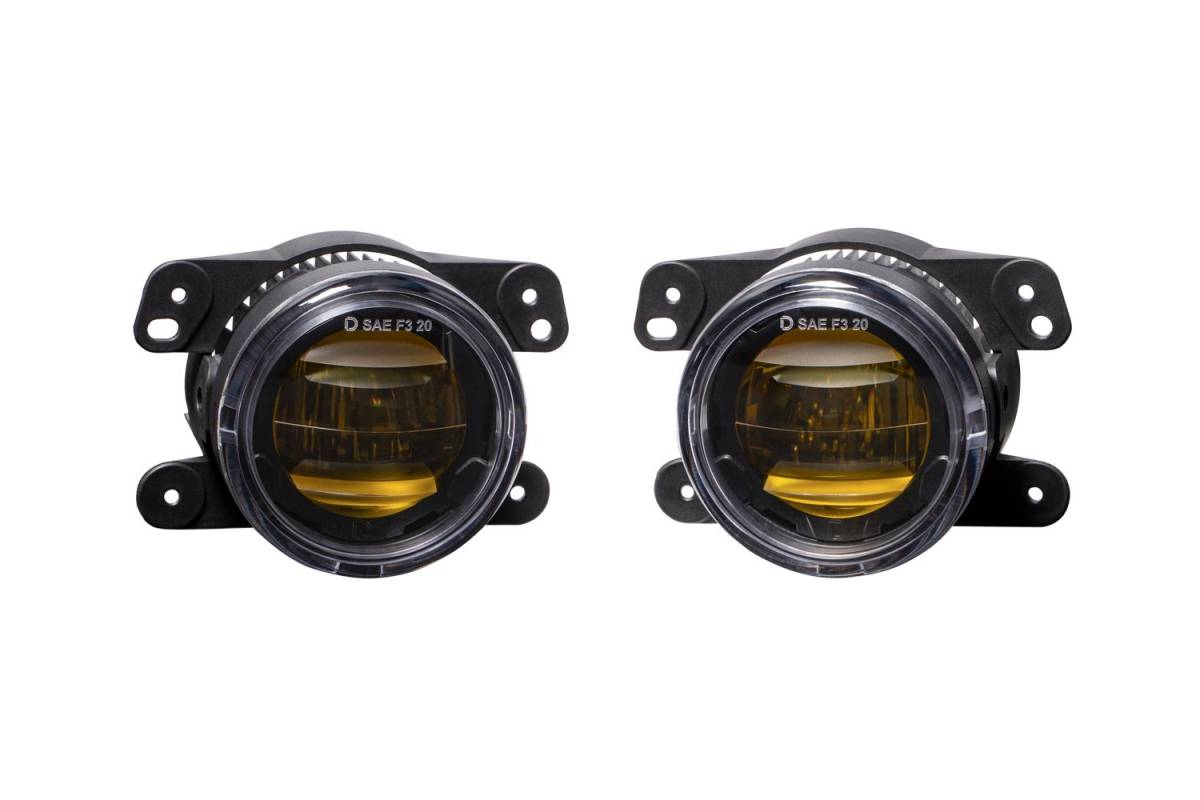

Diode Dynamics Elite Series Type M 3000k Amber LED Fog Lamps For Dodge/Jeep
SKU:
DD5131P
SELECT FITMENT
See If This Product Fits Your Vehicle
- $259.95
- $259.95
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Factory fog lights are built to meet minimum output requirements. Every aftermarket design available provides similar lackluster performance, but with an LED. The focus has been on LED appearance, not increased output. There has never been an aftermarket fog light designed from the ground up for performance - until now. Introducing the Elite Series Fog Lamps: the first OE-style fog lights that were designed for true performance. With a custom-engineered patent-pending optic, multi-die automotive emitters, and high-power full-copper circuit boards, the Elite Series fog light delivers up to 5 times more output than halogen lamps. With a plug-and-play installation, this is one of the easiest and most effective upgrades you can make to improve your visibility in inclement weather. The Elite Series Fog Lamp is built around a highly-engineered single-piece PMMA lens. This optic was carefully designed using advanced optical simulation software to produce a light pattern that is wider than any other aftermarket fog lamp on the market, with an 80-degree spread of highly intense light. Even with this extremely wide band of light, the pattern is extremely smooth throughout, with an extremely sharp cutoff to avoid glare to other drivers, including a BMW-style “color flicker” at the very edge of the pattern. Diode Dynamics engineers accomplished all this while still meeting SAE F3 fog light standards, for legal on-road use. Please check your local laws and regulations for aiming, installation, and applicability.
The white is a 6000K color temperature, which is a true cool white output. This will perfectly match other LEDs on your vehicle, such as DRLs or running lights. The white option also offers a premium BMW-style color band at the very top of the beam pattern. The selective yellow option is 3000K in color temperature, which is great for high contrast in inclement weather, or in providing a distinctive look on the road. The yellow lamp consists of a yellow multi-die LED emitter paired with a yellow-tinted lens, to provide unmatched output and optical efficiency, even with the intense yellow output. All Elite Series Fog Lamps come standard with an integrated amber accent light. This backlight feature fully illuminates the main lens with amber LEDs, intended to match other position, sidemarker, or corner lights on your vehicle. This feature can be wired to any constant 12-volt source for your desired vehicle function, using the included tap connector. It will shut off automatically if the main beam is activated. Check local laws and regulations for acceptable use.
Elite Series Fog Lamps can be installed on most vehicles in minutes. Simply remove your factory fog light assembly and ours will bolt right in its place, using sturdy glass-fiber-reinforced brackets. With built-in adjustment, the lamps can be aimed after installation. To wire them up, a pair of waterproof plug-and-play adapters are included to connect the lights to your factory bulb sockets. Click here to learn how to aim your Elite Series Foglamps. Elite Series Fog Lamps are assembled in the USA using OEM-grade materials, including a precision aluminum casting, UV-coated outer lens, copper-core circuit board, and multi-die automotive emitters. After being assembled by Diode Dynamics in St. Louis, Missouri, they are robotically sealed with urethane epoxy for long-lasting protection against moisture, and packaged in form-fit foam for safe transportation. No expense has been spared, from materials to assembly, right here in America.
Features:
- SAE-compliant road-legal output
- Engineered and Assembled in USA
- Plug and play, no modification needed
- Durable powdercoated aluminum extrusion
- Two (2) H11 4-pin DT backlight tap wires
- Includes round bezel, for factory-style appearance
- Advanced TIR optics provide high efficiency and focus
Fitment:
- Chrysler 300 2005-2010
Chrysler PT Cruiser 2006-2009
Dodge Charger 2011-2014
Dodge Journey 2009-2017
Dodge Magnum 2005-2007
Jeep Cherokee 2014-2017
Jeep Grand Cherokee 2011-2013
Jeep JK Wrangler 2007-2018
Jeep JL Wrangler Sahara/Rubicon (w/ Plastic Bumper) 2018-2022
Jeep JT Gladiator Overland/Rubicon (w/ Plastic Bumper) 2020-2022
Included:
- Two (2) T-taps
- Mounting guide
- Two (2) Elite Series Type M fog lamps
- Two (2) 5202 4-pin DT backlight tap wires
- Two (2) 9006 4-pin DT backlight tap wires
Note:
- Fits Models With Round Fog Lights ONLY
- This kit is a replacement for OEM fog lamps. If your vehicle does not have fog lamps, additional hardware and wiring may be needed for installation.
Product Specs
SKU:
DD5131P
Brand:
Diode Dynamics
Finish/Color:
Clear
finish color:
Clear
lens color:
Clear
lighting type:
LED
part type:
Fog Lights
