Diode Dynamics Elite Series White with Amber Backlit Fog Light Kit For 2022–2025 Toyota RAV4
SKU:
DD8825
SELECT FITMENT
See If This Product Fits Your Vehicle
- $280.00
- $280.00
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Upgrade the factory fog lights on your 2022–2025 Toyota RAV4 with the Diode Dynamics Stage Series Elite Series Fog Light Kit in 6000K White—a direct-fit replacement that delivers dramatically more output in a larger, custom-engineered housing. This kit replaces the factory fog lamp with a higher-output Elite Series pod and a precision-matched bezel for a seamless OEM appearance. Plug-and-play harnesses connect directly to the factory fog circuit with no cutting or drilling required. The Elite Series pod produces 1,850 lumens through a patent-pending 75°x8° fog beam, delivering up to five times more output than halogen and meeting SAE F3 standards for road-legal use.
The custom-engineered optic produces an exceptionally wide, smooth beam pattern with a sharp cutoff that minimizes glare for oncoming drivers. An integrated amber backlight adds a distinctive accent effect. Easy to install and backed by Diode Dynamics' Lifetime Warranty, the Elite Series Fog Light Kit is the clean, professional fog light upgrade your 2022–2025 RAV4 deserves.
Features:
- Direct-fit upgrade replaces factory fog lamps on 2022-2025 RAV4
- Delivers 1,850 lumens of crisp 6000K white fog light output
- Up to 5 times more output than factory halogen fog lamps
- Custom bezel provides seamless factory-style OEM appearance
- Plug-and-play harness connects to factory fog light circuit
- Wide 75°x8° fog beam provides superior road coverage
- Integrated amber backlight adds a distinctive accent effect
- SAE F3-compliant for road-legal use in all 50 states
Specifications:
- Brand: Diode Dynamics
- Product Type: Replacement Fog Light Kit
- Series: Stage Series Elite
- Pod Size: 2 Inch
- Beam Angle: Fog 75°x8°
- Output Color: 6000K White
- Raw Lumens: 1,850 lm
- Peak Beam Intensity: 13,000 cd
- Illuminance: 130 lux @ 10m
- Input Power: Main Beam 18W / Backlight 0.3W
- Operating Voltage: 9–16V
- Operating Temperature: -40°C to 85°C (-40°F to 185°F)
- LED Emitter: Lumileds Automotive Grade
- Connector: Deutsch DT
- Driver Features: Constant Current
- Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket
- Cooling: Passive Pin-Fin Heatsink
- Polarity: Polarity Specific
- SAE Compliance: SAE F3 Fog Light / SAE J575 Durability Test
- Ingress Rating: IP69K Waterproof High Pressure

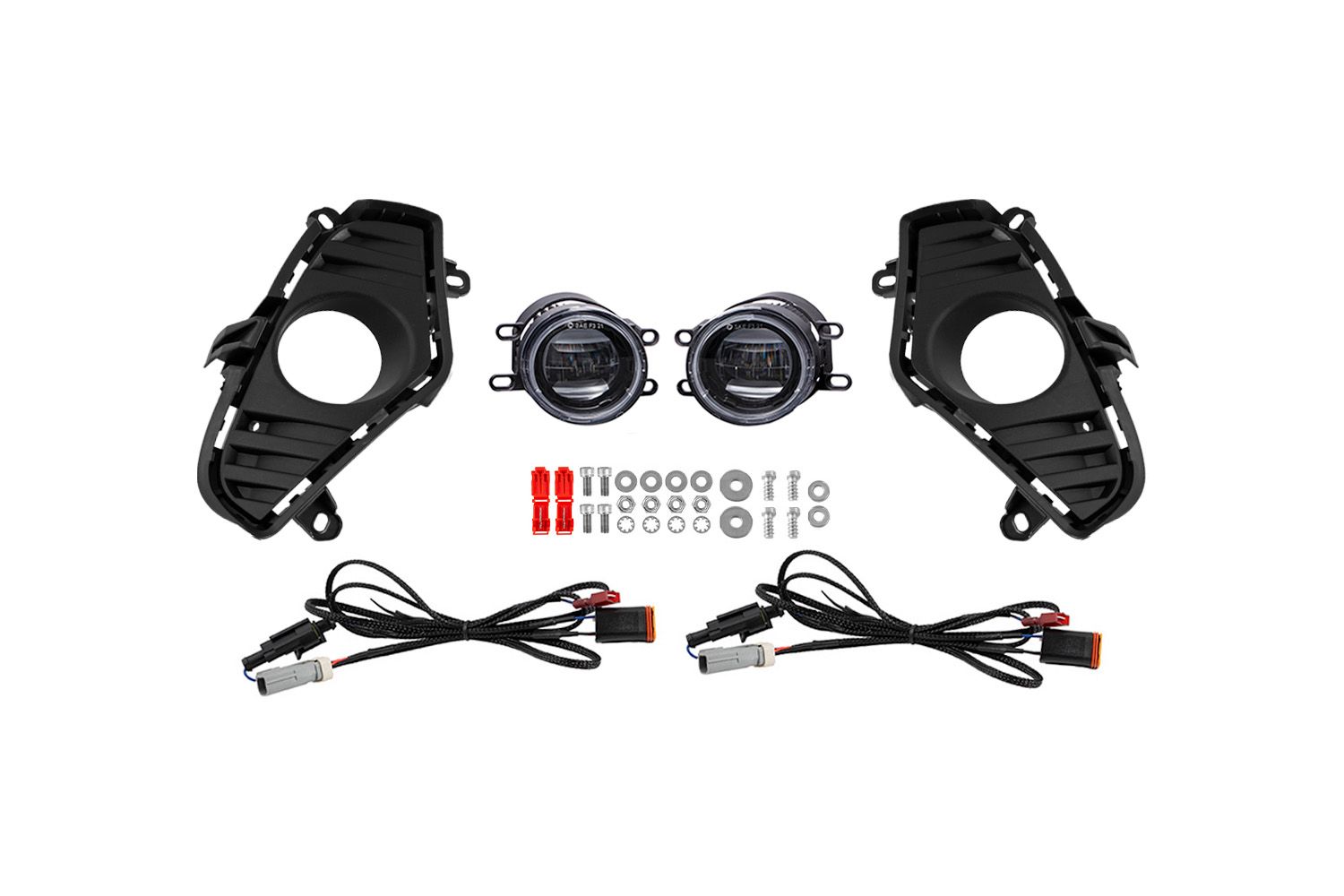

Included:
- (2) Elite Series Type B fog lamps
- (2) OEM-Style Bezels
- (2) DJ70 4-pin DT backlight tap wires
- (2) T-taps
- (1) Installation Hardware Kit
Fitment:
-
2022–2025 Toyota RAV4 (vehicles with factory fog lights)
Note:
- Limited Lifetime Warranty
- This kit is not compatible with TRD Off-Road/Adventure trim levels, and was designed for vehicles without OEM fog lights.
- If your vehicle already has fog lamps, please select our Fog Light Upgrade Kit. If your vehicle is equipped with an LED accent light from the factory, this will be disabled.
