Diode Dynamics SS10 Max White/Multicolor Backlit Combo LED Light Bar Grille Kit For 2019–2024 Polaris RZR XP 1000
SKU:
DD8335
SELECT FITMENT
See If This Product Fits Your Vehicle
- $624.95
- $624.95
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Upgrade your 2019–2024 Polaris RZR XP with the Diode Dynamics SS10 Max Grille Light Bar in 6000K White. This complete bolt-on kit replaces the factory grille with a precision-fit stainless steel unit that mounts using factory points — no cutting or drilling required — delivering 15,840 lm of crisp 6000K white light at 61W through a Combo/Driving 60°x30° beam. At 40,500 cd of peak intensity, the SS10 Max outperforms every competing light bar in its class.
Diode Dynamics' custom TIR optics focus nearly all output precisely where you need it, eliminating the wasted light and glare of reflector-based competitors. The multicolor backlight provides a distinctive accent when the main beam is off. Rated IP69K Waterproof High Pressure, with thick-gauge stainless steel brackets built for the most demanding off-road conditions. Made in the USA — backed by the Diode Dynamics Lifetime Warranty. Diode Dynamics White SS10 Light Bars feature a selectable multicolor backlight in your choice of eight colors, plus a dynamic startup sequence. When the backlight powers on, the selected color sequences back and forth across the entire bar before fully illuminating — a truly premium appearance. The amber selection uses a dedicated chip from a full RGBWA LED series, perfectly matching our smaller LED pods. Selecting your color is easy — simply alternate the power on and off. No controller or programming required.
Features:
- Bolt-on grille install, no cutting or drilling required
- Max 61W power level delivers 15,840 lm of 6000K White
- Combo/Driving beam with 40,500 cd peak intensity through TIR optics
- Custom TIR optics eliminate glare and wasted light
- Multicolor backlight with 8 colors and RGBWA sequence
- Rated IP69K waterproof for high-pressure wash and all weather
- Thick-gauge stainless steel brackets resist corrosion
- Made in the USA with Diode Dynamics Lifetime Warranty
Specifications:
- Brand: Diode Dynamics
- Series: Stage Series
- Light Bar Model: SS10 Max
- Power Level: Max — 61W
- Output Color: 6000K White
- Backlight: White w/ Multicolor Backlight
- Beam Pattern: Combo/Driving — Combo/Driving 60°x30°
- Raw Output: 15 840 lm
- Peak Beam Intensity: 40 500 cd
- Input Power: 61W
- Operating Voltage: 9-30V
- Operating Temperature: -40C to 85C (-40F to 185F)
- Ingress Rating: IP69K Waterproof High Pressure

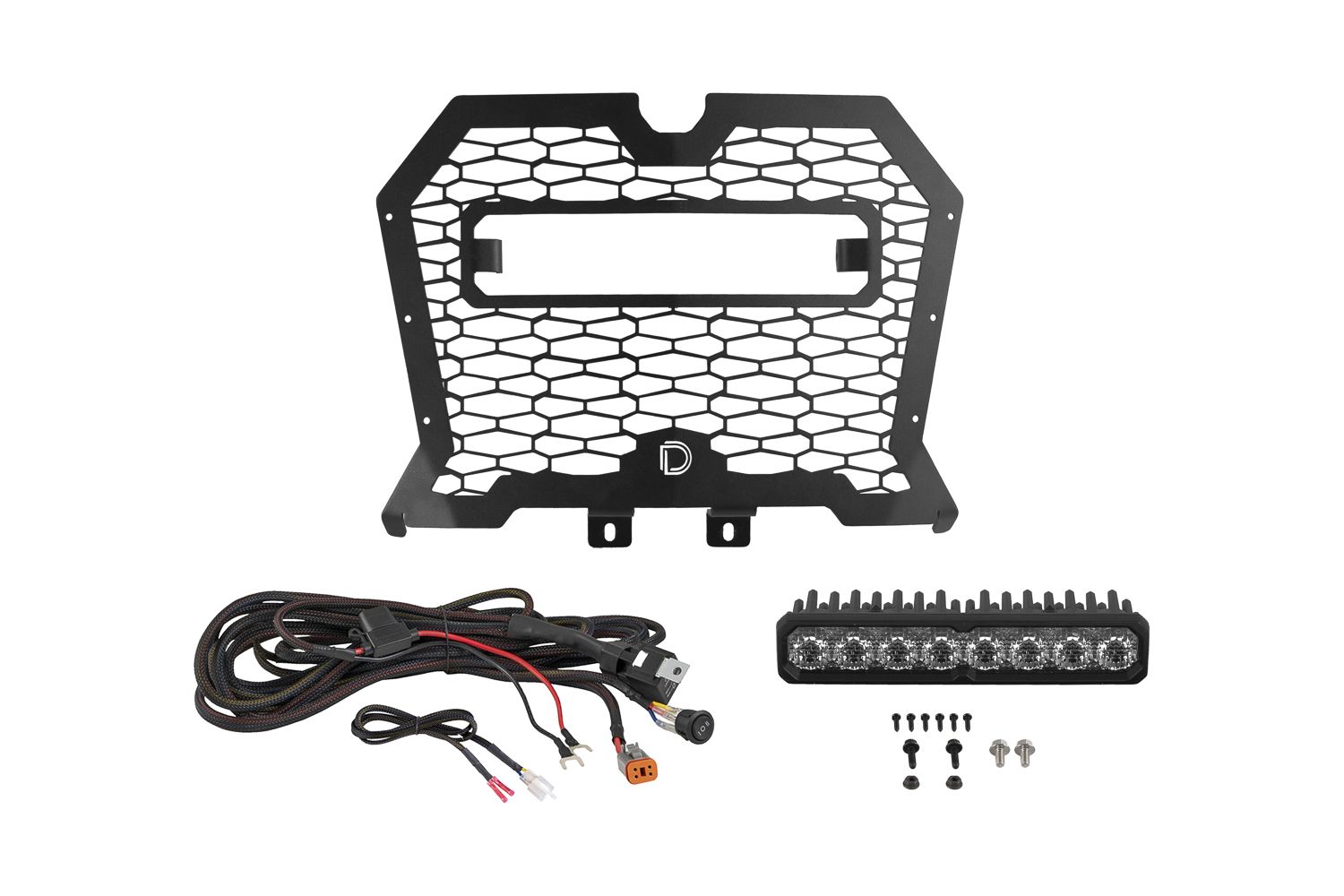

Included:
- (1) SS10 LED Lightbar
- (1) Stainless Steel Grille Bracket Kit
- (1) Heavy Duty Single-Output 4-pin Wiring Harness
- (1) Installation Hardware Kit
- (1) Installation Guide
Fitment:
- 2019–2024 Polaris RZR XP 1000
- 2019–2024 Polaris RZR XP 1000 Premium
- 2019–2024 Polaris RZR XP 1000 Ultimate
- 2019–2024 Polaris RZR XP 1000 Sport
- 2019–2024 Polaris RZR XP Turbo
- 2019–2024 Polaris RZR XP Turbo S
- 2019–2024 Polaris RZR XP 1000 High Lifter Edition
- 2019–2024 Polaris RZR XP Turbo EPS
Note:
- Limited Lifetime Warranty
- No cutting or drilling required for installation
- White w/ Multicolor Backlight — 8 selectable colors
