Diode Dynamics SS3 3" Max Yellow/Amber Backlit Fog Light For 2022–2025 Toyota RAV4
SKU:
DD8832
SELECT FITMENT
See If This Product Fits Your Vehicle
- $720.00
- $720.00
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
The Diode Dynamics Stage Series SS3 Max Fog Light Kit in 3000K Yellow is the definitive fog light upgrade for the 2022–2025 Toyota RAV4—maximum SS3 output combined with yellow light's unmatched ability to penetrate fog, rain, and snow. This direct-replacement kit delivers 7,920 lumens of warm yellow light through an 80°x8° SAE-compliant fog beam with 12,500 candela of focused intensity. Plug-and-play harnesses and a precision-fit bezel provide a clean OEM result with no cutting or drilling required.
Max-tier TIR optics focus every watt of output into the beam precisely where it improves visibility, with minimal glare. The integrated amber backlight activates with parking lights for a premium accent glow. Waterproof and built for all-season durability, this kit is backed by Diode Dynamics' Lifetime Warranty—for RAV4 owners who want the highest-output yellow fog lighting available, SS3 Max Yellow is the clear choice.
Features:
- Direct-fit replacement for factory fog lamps on 2022-2025 RAV4
- Delivers 7,920 lumens of warm 3000K yellow fog light output
- Highest SS3 output — 12,500 cd of focused yellow intensity
- Yellow light maximizes contrast in fog rain snow and dust
- Custom bezel provides seamless factory-style OEM appearance
- Plug-and-play harness connects to factory fog light circuit
- Integrated amber backlight activates with parking lights
- SAE-compliant for road-legal use in all 50 states
Specifications:
- Brand: Diode Dynamics
- Product Type: Replacement Fog Light Kit
- Series: Stage Series SS3
- Pod Model: SS3 Max
- Pod Size: 3 Inch
- Beam Angle: Fog 80°x8°
- Output Color: 3000K Yellow
- Raw Lumens: 7,920 lm
- Peak Beam Intensity: 12,500 cd
- Illuminance: 125 lux @ 10m
- Input Power: Main Beam 38.5W / Backlight 0.4W
- Operating Voltage: 9–16V
- Operating Temperature: -40°C to 85°C (-40°F to 185°F)
- LED Emitter: Osram Ostar Projection Compact / Lumileds Automotive Grade
- Connector: Deutsch DT
- Driver Features: Constant Current
- Materials: Polycarbonate Lens, Powdercoated Steel, Aluminum Casting, Rubber Gasket
- Cooling: Passive Pin-Fin Heatsink
- Polarity: Polarity Specific
- SAE Compliance: SAE J583 Foglamp / SAE J575 Durability Test
- Ingress Rating: IP69K Waterproof High Pressure

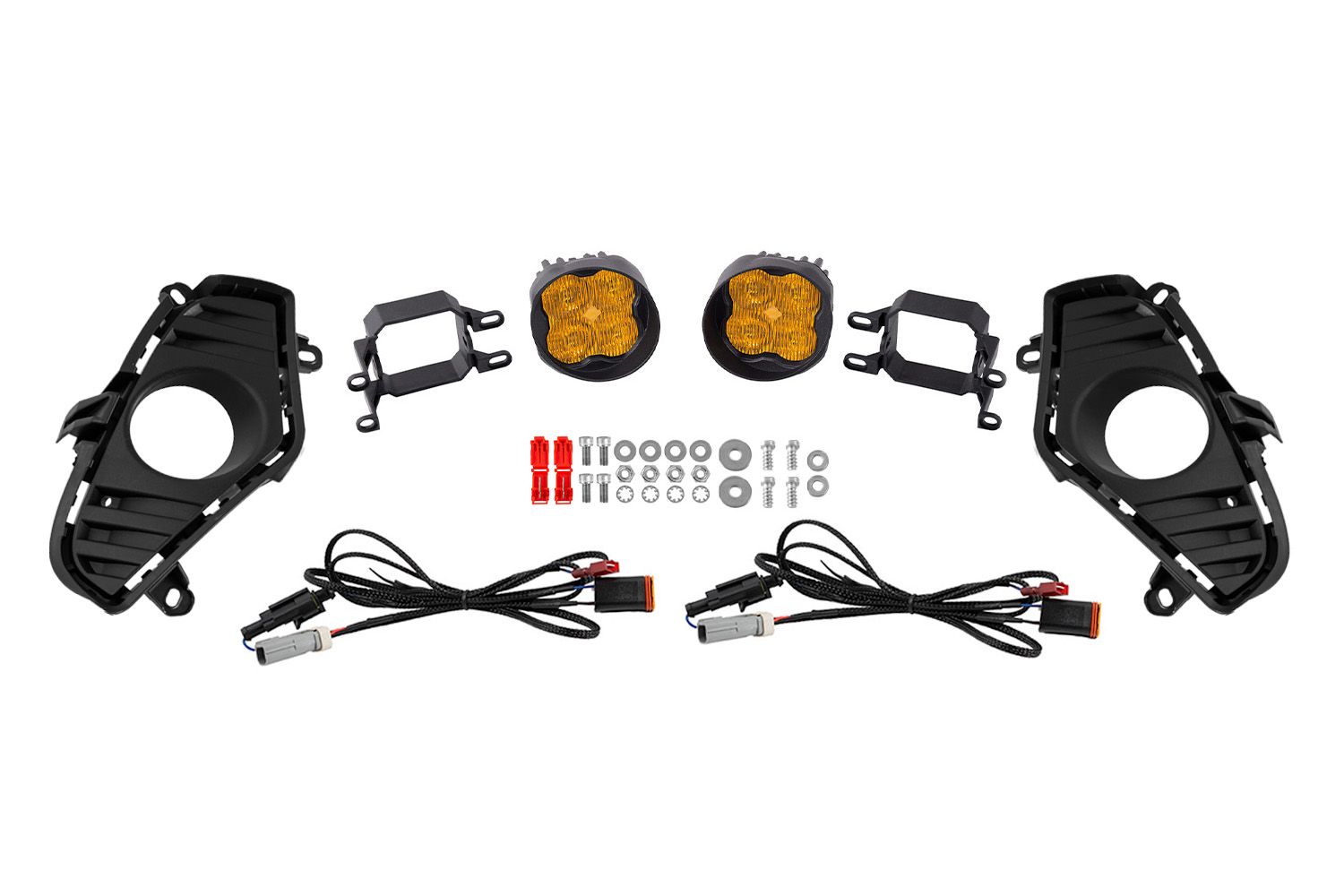

Included:
- (2) SS3 Max Yellow 3" LED Pods
- (2) Custom Fog Bezels
- (2) DJ70 to 4-Pin DT Fog Light Harnesses
- (1) Installation Hardware Kit
Fitment:
-
2022–2025 Toyota RAV4 (vehicles with factory fog lights)
Note:
- Limited Lifetime Warranty
- This Kit is not compatible with TRD Off-Road/Adventure trim levels. This kit is a replacement for OEM fog lights.
Product Specs
SKU:
DD8832
Brand:
Diode Dynamics
