Diode Dynamics SS3 3" Pro White/Amber Backlit Ditch Light Kit For 2019–2025 Toyota RAV4

SKU: DD8811

SELECT FITMENT

See If This Product Fits Your Vehicle

$460.00
$460.00

Free Shipping

Free ground shipping on all orders over $99

Take your 2019–2025 Toyota RAV4 to the next level with the Diode Dynamics Stage Series SS3 Pro Backlit Ditch Light Kit in 6000K White. This complete kit mounts bolt-on to factory mounting points above the hood with no cutting or drilling required. The 3" SS3 Pro pods deliver 5,796 lumens of crisp white light through a Combo beam (Driving and Flood) pattern, producing 35,100 candela of intense, focused output.

Built on thick-gauge stainless steel brackets with IP69K-rated pods, this kit handles demanding off-road and adverse weather conditions without compromise. The integrated amber backlight delivers a premium accent glow. Backed by a Lifetime Warranty and built in the USA.

Features:

  • Bolt-on installation using factory mounting points — no drilling needed
  • Delivers 5,796 lumens of 6000K white light per pod
  • SS3 Pro TIR optics produce 35,100 cd of focused intensity
  • Combo beam covers both driving and flood patterns simultaneously
  • Integrated amber backlight adds visibility and premium styling
  • IP69K waterproof rated for high-pressure wash and all-weather use
  • Engineered and assembled in the USA with premium materials

Specifications:

  • Brand: Diode Dynamics
  • Output Color: 6000K White
  • Raw Output: 5,796 lm
  • Peak Beam Intensity: 35,100 cd
  • Input Power: Main Beam 36W / Backlight 0.4W
  • Operating Voltage: 9–16V
  • Ingress Rating: IP69K Waterproof High Pressure

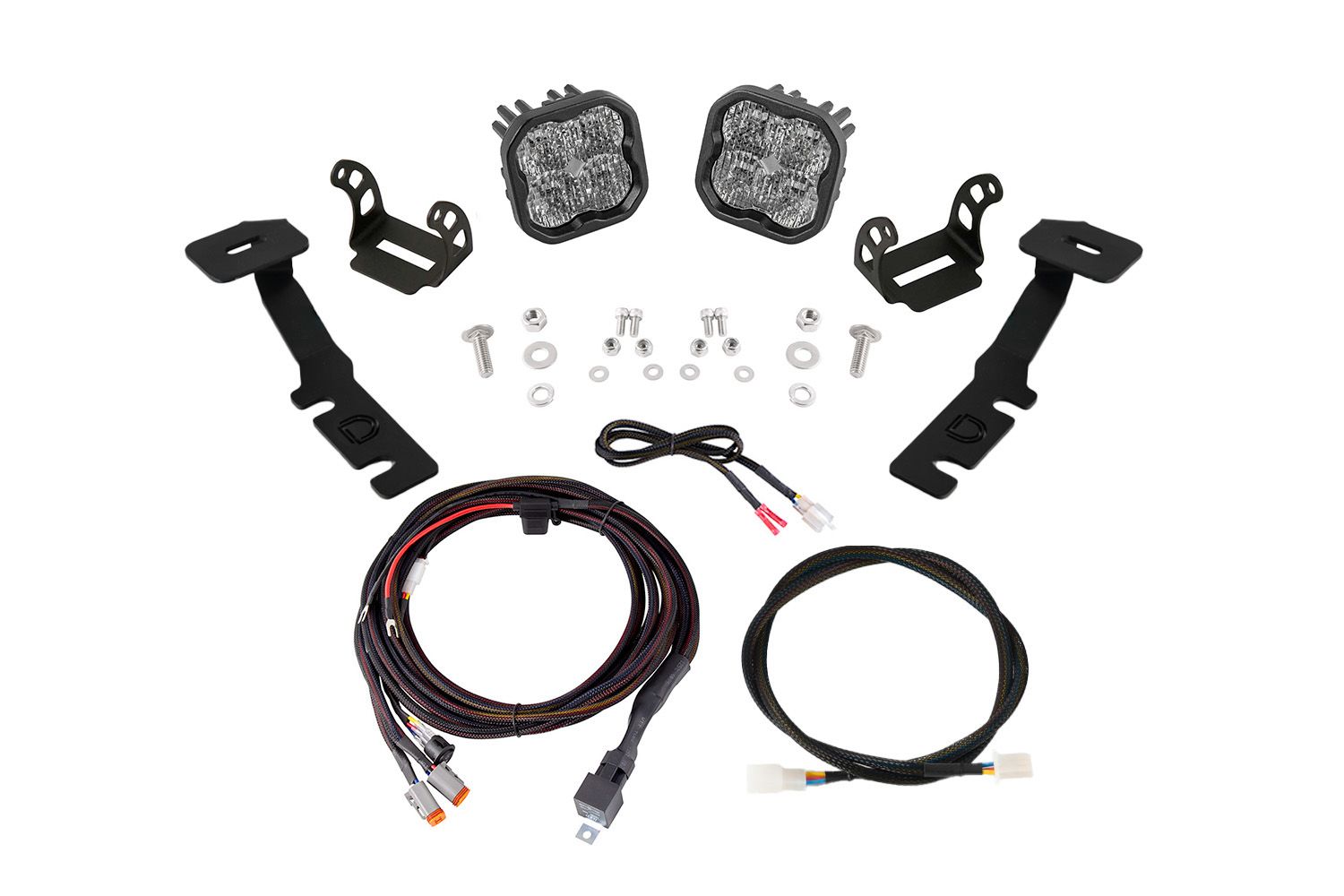

Included:

  • (2) SS3 Pro White 3" LED Pods
  • (2) Ditch Light Brackets
  • (2) Mounting Brackets
  • (1) Heavy-Duty 4-Pin Dual Output Wiring Harness
  • (1) 1-Meter Extension Harness
  • (1) Hardware Kit
  • (1) Mounting Guide

Fitment:

  • 2019–2025 Toyota RAV4

Note:

  • Limited Lifetime Warranty
  • No cutting or drilling required
  • Do not use automatic car washes with this kit installed
  • Amber backlight harness included — wire to any constant 12V source

Product Specs

SKU:
DD8811
Brand:
Diode Dynamics
