Diode Dynamics SS3 Max Type A 6000K SAE Yellow Fog Light Kit W/ Amber Backlight

SKU: DD6986
$619.95
$619.95

Free Shipping

Free ground shipping on all orders over $100

Upgrade your fog lights with our SS3 Type A Fog Light Bracket Kit! Featuring higher output intensity than any other 3” light on the market, these LED pods have been designed for maximum functionality, with custom-engineered TIR optics shining in highly useful beam patterns, all in a durable package. With the included round bezel, the SS3 Fog Kit has a clean, factory-style appearance, only much brighter!

Thanks to custom-molded brackets, the SS3 Fog Light Bracket Kit can be installed on your in minutes. Simply remove your factory fog light assembly and ours will bolt right in its place! Wire adapters are included to connect the lights to your factory bulb sockets - no additional wiring needed!

Backlight Functionality. The Stage Series 3" LED Pod is now available with a distinctive backlight, in a brilliant amber color. This integrated backlight gives you an additional accent light, along with the main beam. The SS3's backlight fully illuminates the TIR optic, providing a more unique and modern look than the small indicator LEDs found in other products. To power the backlight, use the included harness to tap your desired vehicle function. NOTE: If you are upgrading your SS3 Pods to Backlit SS3 Pods, you will need to purchase a 2-pin to 4-pin wire tap kit in order to connect your existing 2-pin harness to your new backlit SS3 Pods.

When installed as a pair and aimed in accordance with your state's regulations, the Driving White pattern meets SAE J581 standard as a Driving/Auxiliary High Beam Light, and the Fog pattern meets SAE J583 standard as a Foglamp, for legal on-road use. Please check your local laws and regulations for aiming, installation, and applicability. All Stage Series LED pods are available in a cool white or selective yellow color. The white is a 6000K color temperature, which is a true cool white output, and matches most factory LED lighting. The selective yellow is a 3000K color temperature, great for high contrast in poor weather or a distinctive look on the road. Stage Series LED pods are available at three different power levels. All options use high-intensity LED emitters, and TIR optics for unmatched focus and overall output. The Sport model uses high-intensity LEDs, and is the best bang for the buck you’ll find. The Pro model steps things up in a big way, with double the total power. Finally, the Max model is designed with cutting-edge automotive emitters, for both high power and extreme intensity. This brand new technology comes at a cost, but if you’re looking for the absolute best in lighting performance, the SS3 Max is the answer.

Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly assemble and engineer our own products in the United States, allowing for higher quality and performance, with the newest and brightest LED technology. No matter what you're driving, we pride ourselves in offering only the best possible LED solutions.



Features:

  • Lumens: 7,920 LM
  • Wattage/Amps: 39 W / 3 A
  • Backlight Wattage/Amps: .4 W / .03 A
  • LED Life Expectancy: 49,930 Hours
  • Front Lens: Hard Coated Polycarbonate
  • Housing: Powder Coated Cast Aluminum
  • Built-In Overvoltage Protection
  • IP69K (Waterproof, Submersible to 9ft)
  • IK10 Compliant (Mechanical Impact Testing)
  • SAE-compliant road-legal output
  • Engineered and Assembled in USA
  • Plug and play, no modification needed
  • Durable powdercoated aluminum extrusion
  • Includes round bezel, for factory-style appearance
  • Advanced TIR optics provide high efficiency and focus



Fitment:

  • 2013-2018 Acura ILX
  • 2013-2018 Acura RDX
  • 2012-2014 Acura TL
  • 2011-2013 Acura TSX
  • 2013-2016 Ford C-Max
  • 2014-2019 Ford Fiesta ST
  • 2005-2007 Ford Freestyle
  • 2013-2016 Ford Fusion
  • 2006-2009 Ford Mustang
  • 2015-2017 Ford Mustang
  • 2004-2007 Ford Ranger STX
  • 2008-2009 Ford Taurus X
  • 2012-2016 Fiat 500
  • 2013-2015 Honda Accord
  • 2016-2021 Honda Civic
  • 2013-2015 Honda Civic Si Sedan
  • 2013-2015 Honda Crosstour
  • 2012-2014 Honda CR-V
  • 2013-2016 Honda CR-Z
  • 2015-2017 Honda Fit
  • 2010-2014 Honda Insight
  • 2019-2020 Honda Odyssey
  • 2012-2019 Honda Pilot
  • 2009-2021 Nissan Frontier
  • 2007-2012 Nissan Sentra
  • 2017-2019 Nissan Titan
  • 2016 Nissan Titan XD
  • 2005-2015 Nissan Xterra
  • 2013-2016 Scion FR-S
  • 2013-2017 Subaru BRZ
  • 2016-2022 Subaru Crosstrek
  • 2013-2015 Subaru XV Crosstrek
  • 2014-2018 Subaru Forester
  • 2019-2022 Subaru Forester
  • 2012-2014 Subaru Impreza
  • 2015-2022 Subaru Impreza (w/ Eyesight Package)
  • 2010-2014 Subaru Legacy
  • 2018-2021 Subaru Legacy
  • 2010-2012 Subaru Outback
  • 2022 Subaru Outback Wilderness
  • 2015-2021 Subaru WRX
  • 2015-2017 Subaru WRX STi



Included:

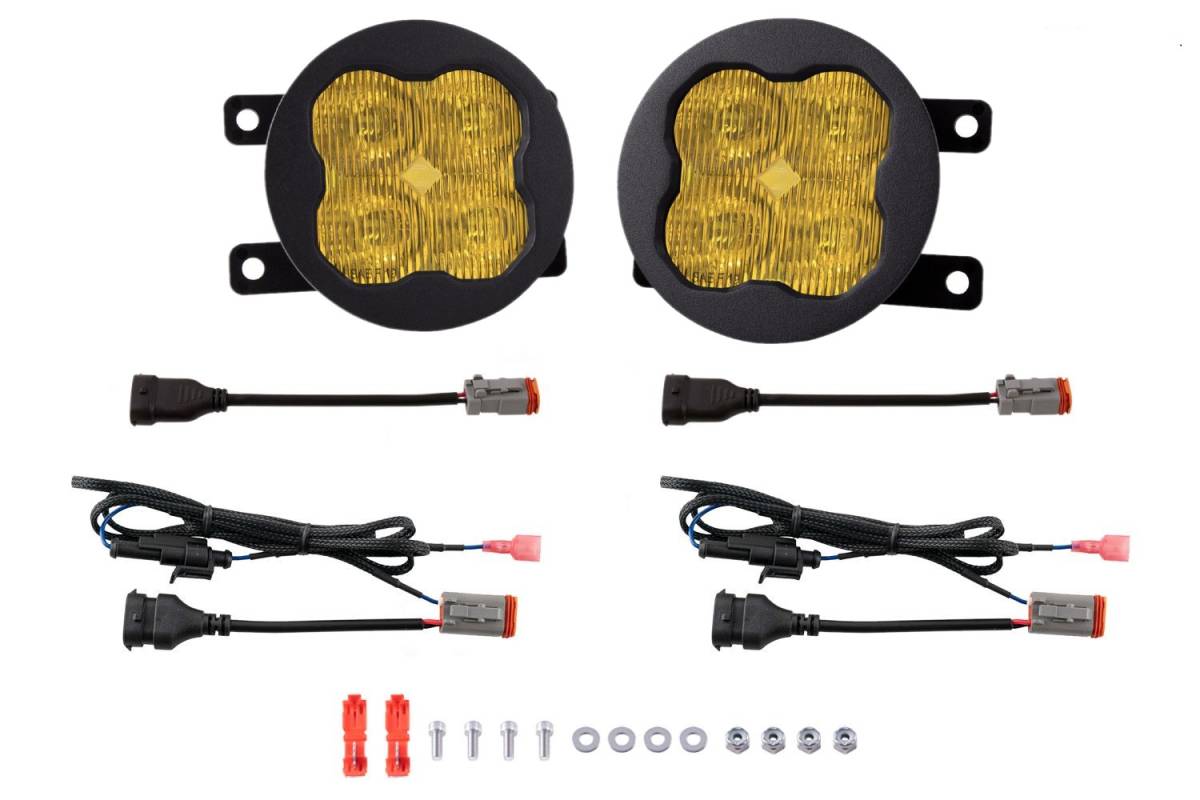

  • (2) SS3 Max Yellow Fog Beam LED Pods W/ Amber Backlight
  • (2) H11 2-pin DT adapters
  • (2) Type A brackets
  • (1) Mounting hardware
  • (1) Mounting guide



Note:

  • Fits Models With Round Fog Lights ONLY

Product Specs

SKU:
DD6986
Brand:
Diode Dynamics
Prop 65
