Diode Dynamics SSC1 HitchMount LED Reverse Light Kit For Trucks / SUVs / Jeeps
SKU:
DD7420
SELECT FITMENT
See If This Product Fits Your Vehicle
- $139.95
- $139.95
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Add significantly more light output when backing up at night with our Stage Series HitchMount Reverse Light Kit! This kit allows you to mount one SSC1 or C1R LED pod in your 2-inch trailer hitch receiver, adding a high-power reverse light, additional running light, and an optional 4th brake light with the C1R option. With the included wiring harness, this kit connects to your vehicle's factory trailer hitch wiring for simple, everyday operation. The Stage Series LED pods included with this kit feature a distinctive red backlight that can be used as an additional running light while driving! The backlight fully illuminates the TIR optic, providing a more unique and modern look than the small indicator LEDs found in other products.
This kit is completely plug-and-play with all 7-pin trailer connectors. The included harness plugs right into your factory trailer hitch wiring for easy installation and operation. The kit operates as an additional red running light with your tail lights, and then automatically switches to a high-power backup light when your vehicle is in reverse. The high-power 4th brake light feature included with the C1R will activate anytime you apply your brakes. If you would like to have override functionality to manually turn on the reverse light anytime, you will need to purchase the universal backup harness.
The patent-pending snap-fit design allows you to install this mount in minutes, without any drilling or need for a hitch pin. Simply insert the HitchMount into your trailer hitch receiver and the snap-fit side mounts will snap into place. Installation couldn't be easier and takes less than five minutes! This kit is ideal for anyone who uses their trailer hitch often since removal can be done in minutes as well! Simply unplug the harness, press the snap-fit pins and remove the mount. When you're not using your hitch for towing, you can quickly reinstall the HitchMount and plug it back in.
Features:
- Allows you to mount an SSC1 or C1R LED pod in any 2-inch trailer hitch receiver.
- Adds a powerful reverse light, 4th brake light, and additional running light.
- Simple 5-minute installation, with no need for custom wiring or routing wires.
- Optional SafetyStrobe brake light strobing.
- Designed and assembled in USA.
Fitment:
- Universal For Any Vehicle With A 2" Hitch Receiver

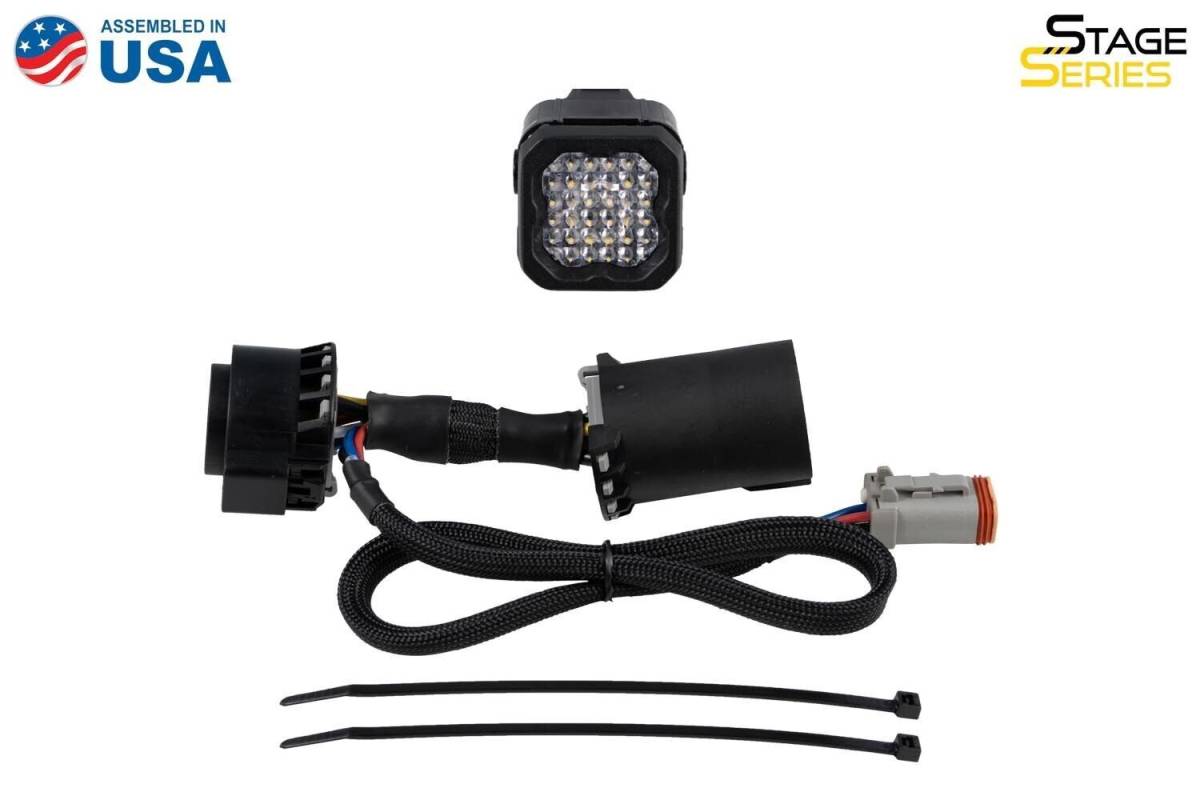

Includes:
- (1) SSC1 Sport or C1R HitchMount LED Pod
- (1) 7-Pin trailer single output harness
- (2) Zip ties
- Installation guide
Note:
- GM/Chevy: This product is not compatible with 2020+ trucks.
- This product is not compatible with the 2005-2015 Toyota Tacoma.
- Ram: Trailer management system may detect trailer - testing in progress.
- If you would like to use a locking trailer pin to install this kit instead of the snap-fit pins, you can do so with a quick modification
- This product is not intended to replace original factory tail lamps. Please ensure your trailer hitch has an open back before ordering
- Newer trucks with trailer management systems monitor the power draw on the trailer connector in order to automatically modify vehicle settings when a trailer is connected. Depending on the year and make of your vehicle, the HitchMount LED may interact with this system if equipped
Product Specs
SKU:
DD7420
Brand:
Diode Dynamics
