Diode Dynamics Stage Series 2" C2 2.0 Pro White Combo/Driving with Amber Backlit Ditch Light Kit For 2019–2025 Toyota RAV4
SKU:
DD8805
SELECT FITMENT
See If This Product Fits Your Vehicle
- $399.95
- $399.95
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Step up to Pro-tier performance with the Diode Dynamics Stage Series C2 2.0 Pro Backlit Ditch Light Kit in 6000K White, purpose-built for 2019–2025 Toyota RAV4 owners who demand more output. This complete kit mounts bolt-on to factory points above the hood with no cutting or drilling required. The C2 2.0 Pro pods deliver 3,136 lumens of crisp white light and an impressive 20,000 candela of focused intensity through a wide Combo/Driving 55°x20° beam pattern—a significant step up over the Sport tier.
IP69K-rated and built on thick-gauge stainless steel brackets, this kit handles everything from trail dust to highway rain without issue. The integrated amber backlight provides a premium accent glow when the main beam is off. A dual-output wiring harness and extension harness are included for a complete, clean installation. Backed by Diode Dynamics' Lifetime Warranty and made in the USA, the C2 2.0 Pro is the ideal mid-range performance upgrade for your RAV4.
Features:
- Bolt-on installation using factory mounting points no drilling needed
- Delivers 3,136 lumens of 6000K white light per pod
- Pro-tier output provides 20,000 cd of focused intensity
- Patented TIR optics maximize output while reducing glare
- Wide Combo/Driving 55°x20° beam for road edge and forward coverage
- Integrated amber backlight adds visibility and modern styling
- IP69K waterproof rated for high-pressure wash and all weather
- Engineered and assembled in the USA with premium materials
Specifications:
- Brand: Diode Dynamics
- Product Type: Backlit Ditch Light Kit
- Series: Stage Series
- Pod Model: C2 2.0 Pro
- Pod Size: 2 Inch
- Beam Angle: Combo/Driving 55°x20°
- Output Color: 6000K White
- Raw Lumens: 3,136 lm
- Peak Beam Intensity: 20,000 cd
- Illuminance: 545 lux @ 10m
- Input Power: Main Beam 23W / Backlight 0.38W
- Current Draw: 1.8A @ 12.8V
- Operating Voltage: 9–30V
- Operating Temperature: -40°C to 85°C (-40°F to 185°F)
- LED Emitter: Osram Ostar Projection Compact / Lumileds Automotive Grade
- Connector: Deutsch DT
- Driver Features: Constant Current
- Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket
- Cooling: Passive Pin-Fin Heatsink
- Polarity: Polarity Specific
- Compliance: SAE J575 Durability Test
- Ingress Rating: IP69K Waterproof High Pressure

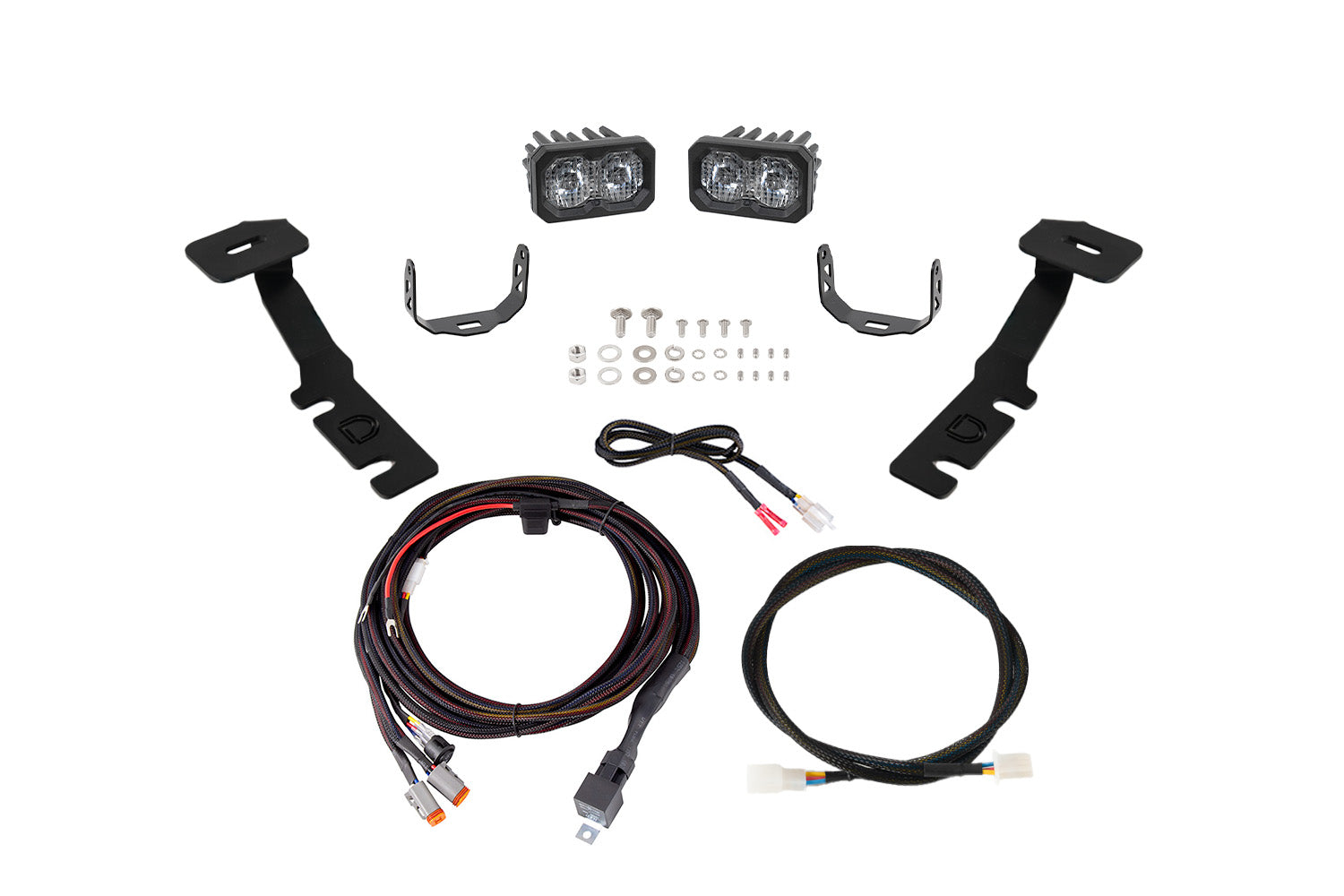

Included:
- (2) C2 2.0 Pro White 2" LED Pods
- (2) Ditch Light Brackets
- (2) Mounting Brackets
- (1) Heavy-Duty 4-Pin Dual Output Wiring Harness
- (1) 1-Meter Extension Harness
- (1) Installation Hardware Kit
- (1) Mounting Guide
Fitment:
- 2019–2025 Toyota RAV4
Note:
- Limited Lifetime Warranty
- No cutting or drilling required for installation
- Amber backlight harness included — wire to any constant 12V source
