Diode Dynamics Stage Series 2" C2 2.0 Pro Yellow with Amber Backlit Ditch Light Kit For 2019–2025 Toyota RAV4
SKU:
DD8806
SELECT FITMENT
See If This Product Fits Your Vehicle
- $399.95
- $399.95
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Maximize visibility in all conditions with the Diode Dynamics Stage Series C2 2.0 Pro Backlit Ditch Light Kit in 3000K Yellow, a Pro-tier ditch light upgrade for 2019–2025 Toyota RAV4. This complete bolt-on kit mounts directly to factory points above the hood with no cutting or drilling, delivering 3,136 lumens of warm yellow light through a wide 55°x20° Combo beam pattern. Pro-level TIR optics produce 54,500 candela of focused intensity—yellow light that cuts through fog, rain, and dust with contrast white simply cannot match.
Thick-gauge stainless steel brackets and IP69K-rated pods make this kit ready for any environment, and the integrated amber backlight adds a distinctive accent when the main beam is off. A complete dual-output harness and extension are included for a clean installation. Backed by Diode Dynamics' Lifetime Warranty and built in the USA, the C2 2.0 Pro Yellow kit is the smart choice for serious all-weather RAV4 builds.
Features:
- Bolt-on installation using factory mounting points no drilling needed
- Delivers 3,136 lumens of warm 3000K yellow light per pod
- Pro-tier output provides 54,500 cd of focused intensity
- Yellow light cuts through fog rain dust with superior contrast
- Wide Combo/Driving 55°x20° beam for road edge and forward coverage
- Integrated amber backlight adds visibility and modern styling
- IP69K waterproof rated for high-pressure wash and all weather
- Engineered and assembled in the USA with premium materials
Specifications:
- Brand: Diode Dynamics
- Product Type: Backlit Ditch Light Kit
- Series: Stage Series
- Pod Model: C2 2.0 Pro
- Pod Size: 2 Inch
- Beam Angle: Combo/Driving 55°x20°
- Output Color: 3000K Yellow
- Raw Output: 3,140 lm
- Peak Beam Intensity: 15,000 cd
- Illuminance: 150 lux @ 10m
- Input Power: Main Beam 23W / Backlight 0.38W
- Current Draw: 1.8A @ 12.8V
- Operating Voltage: 9–30V
- Operating Temperature: -40°C to 85°C (-40°F to 185°F)
- LED Emitter: Osram Ostar Projection Compact / Lumileds Automotive Grade
- Connector: Deutsch DT
- Driver Features: Constant Current
- Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket
- Cooling: Passive Pin-Fin Heatsink
- Polarity: Polarity Specific
- Compliance: SAE J575 Durability Test
- Ingress Rating: IP69K Waterproof High Pressure

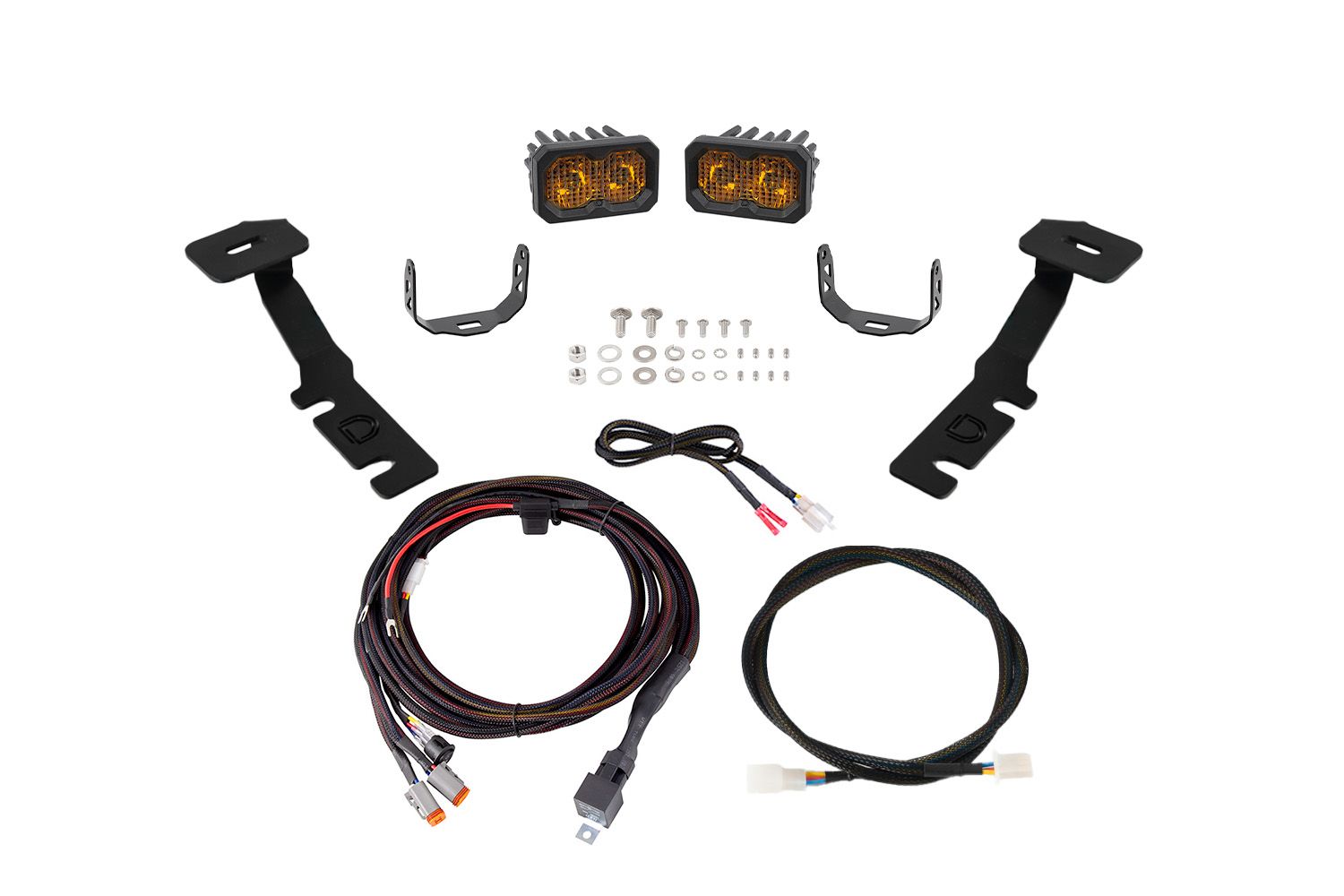

Included:
- (2) C2 2.0 Pro Yellow 2" LED Pods
- (2) Ditch Light Brackets
- (2) Mounting Brackets
- (1) Heavy-Duty 4-Pin Dual Output Wiring Harness
- (1) 1-Meter Extension Harness
- (1) Installation Hardware Kit
- (1) Mounting Guide
Fitment:
- 2019–2025 Toyota RAV4
Note:
- Limited Lifetime Warranty
- No cutting or drilling required for installation
- Amber backlight harness included — wire to any constant 12V source
