Diode Dynamics Stage Series 2" C2 2.0 Sport Yellow Combo/Driving with Amber Backlit Ditch Light Kit For 2019–2025 Toyota RAV4
SKU:
DD8804
SELECT FITMENT
See If This Product Fits Your Vehicle
- $300.00
- $300.00
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Upgrade your Toyota RAV4 with the Diode Dynamics Stage Series C2 2.0 Backlit Ditch Light Kit in 3000K Yellow, delivering the contrast-cutting advantage of warm yellow light in a complete bolt-on package. Designed specifically for 2019–2025 Toyota RAV4 models, this kit installs directly to factory mounting points above the hood with no cutting or drilling required. The C2 2.0 pods project 1,930 lumens through a wide 55°x20° Combo beam, providing superior visibility in fog, rain, and dust conditions where yellow light outperforms white.
Constructed from thick-gauge stainless steel brackets and IP69K-rated LED pods, this kit is built to handle demanding environments without corrosion or vibration. The integrated amber backlight adds a distinctive modern accent when the main beam is off. Whether you're navigating trails or adverse weather on the road, the low-profile design keeps hood operation intact and the exterior looking clean—backed by Diode Dynamics' Lifetime Warranty and USA engineering.
Features:
- Bolt-on installation using factory mounting points no drilling needed
- Delivers 1,930 lumens of warm 3000K yellow light per pod
- Yellow light improves contrast in fog rain dust and snow
- Wide Combo/Driving 55°x20° beam for maximum road edge coverage
- Integrated amber backlight adds visibility and modern styling
- IP69K waterproof rated for high-pressure wash and all weather
- Thick-gauge stainless steel brackets resist corrosion and wear
- Engineered and assembled in the USA with premium materials
Specifications:
- Brand: Diode Dynamics
- Product Type: Backlit Ditch Light Kit
- Series: Stage Series
- Pod Model: C2 2.0 Sport
- Pod Size: 2 Inch
- Beam Angle: Combo/Driving 55°x20°
- Output Color: 3000K Yellow
- Raw Lumens: 1,930 lm
- Peak Beam Intensity: 34,000 cd
- Illuminance: 340 lux @ 10m
- Input Power: Main Beam 15W / Backlight 0.38W
- Current Draw: 1.17A @ 12.8V
- Operating Voltage: 9–30V
- Operating Temperature: -40°C to 85°C (-40°F to 185°F)
- LED Emitter: Osram Ostar Projection Compact / Lumileds Automotive Grade
- Connector: Deutsch DT
- Driver Features: Constant Current
- Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket
- Cooling: Passive Pin-Fin Heatsink
- Polarity: Polarity Specific
- Compliance: SAE J575 Durability Test
- Ingress Rating: IP69K Waterproof High Pressure

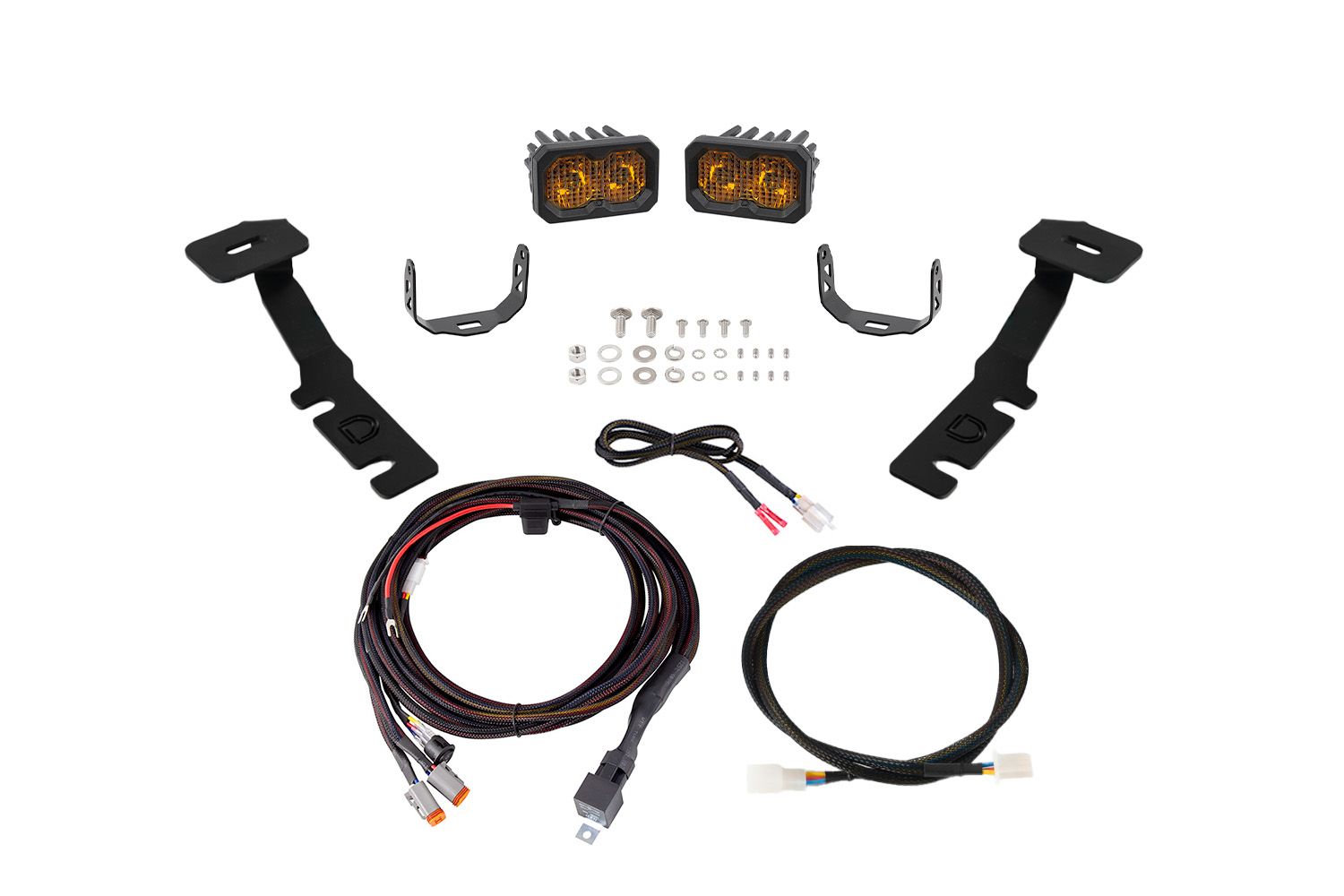

Included:
- (2) C2 2.0 Sport Yellow 2" LED Pods
- (2) Ditch Light Brackets
- (2) Mounting Brackets
- (1) Heavy-Duty 4-Pin Dual Output Wiring Harness
- (1) 1-Meter Extension Harness
- (1) Installation Hardware Kit
- (1) Mounting Guide
Fitment:
- 2019-2025 Toyota RAV4
Note:
- Limited Lifetime Warranty
- No cutting or drilling required for installation
- Amber backlight harness included — wire to any constant 12V source
