Diode Dynamics Stage Series 3" SS3 Max White w/ Amber Backlit Fog Light Kit For 2019–2022 Toyota RAV4
SKU:
DD8823
SELECT FITMENT
See If This Product Fits Your Vehicle
- $740.00
- $740.00
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
For the ultimate fog light upgrade on your fog-delete 2019–2022 Toyota RAV4, the Diode Dynamics Stage Series SS3 Max Add-On Fog Light Kit in 6000K White delivers the highest output in the SS3 lineup. Plug-and-play installation with a factory-matched bezel and harness—no cutting or drilling required. The SS3 Max pods push a massive 7,920 lumens of crisp 6000K white light through an 80°x8° SAE-compliant fog beam, producing 18,000 candela of peak intensity that transforms visibility in rain, fog, and low-light conditions.
Max-tier TIR optics ensure every watt of power becomes usable, focused light with minimal glare. The integrated amber backlight activates with parking lights for a premium accent. Waterproof and engineered for year-round performance in any climate, this kit carries Diode Dynamics' Lifetime Warranty—if you want the absolute best fog light output available for your 2019–2022 RAV4, this is it.
Features:
- Adds Max-tier SS3 fog lights to fog-delete 2019-2022 RAV4 models
- Delivers 7,920 lumens of crisp 6000K white fog light output
- Highest output in the SS3 lineup at 18,000 cd peak intensity
- Max-tier TIR optics convert every watt into focused useful light
- Custom bezel provides seamless factory-style OEM appearance
- Plug-and-play harness connects to factory fog light circuit
- Integrated amber backlight activates with parking lights
- SAE-compliant for road-legal use in all 50 states
Specifications:
- Brand: Diode Dynamics
- Product Type: Add-On Fog Light Kit
- Series: Stage Series SS3
- Pod Model: SS3 Max
- Pod Size: 3 Inch
- Beam Angle: Fog 80°x8°
- Output Color: 6000K White
- Raw Lumens: 7,920 lm
- Peak Beam Intensity: 18,000 cd
- Illuminance: 180 lux @ 10m
- Input Power: Main Beam 38.5W / Backlight 0.4W
- Operating Voltage: 9–16V
- Operating Temperature: -40°C to 85°C (-40°F to 185°F)
- LED Emitter: Osram Ostar Projection Compact / Lumileds Automotive Grade
- Connector: Deutsch DT
- Driver Features: Constant Current
- Materials: Polycarbonate Lens, Powdercoated Steel, Aluminum Casting, Rubber Gasket
- Cooling: Passive Pin-Fin Heatsink
- Polarity: Polarity Specific
- SAE Compliance: SAE J583 Foglamp / SAE J575 Durability Test
- Ingress Rating: IP69K Waterproof High Pressure

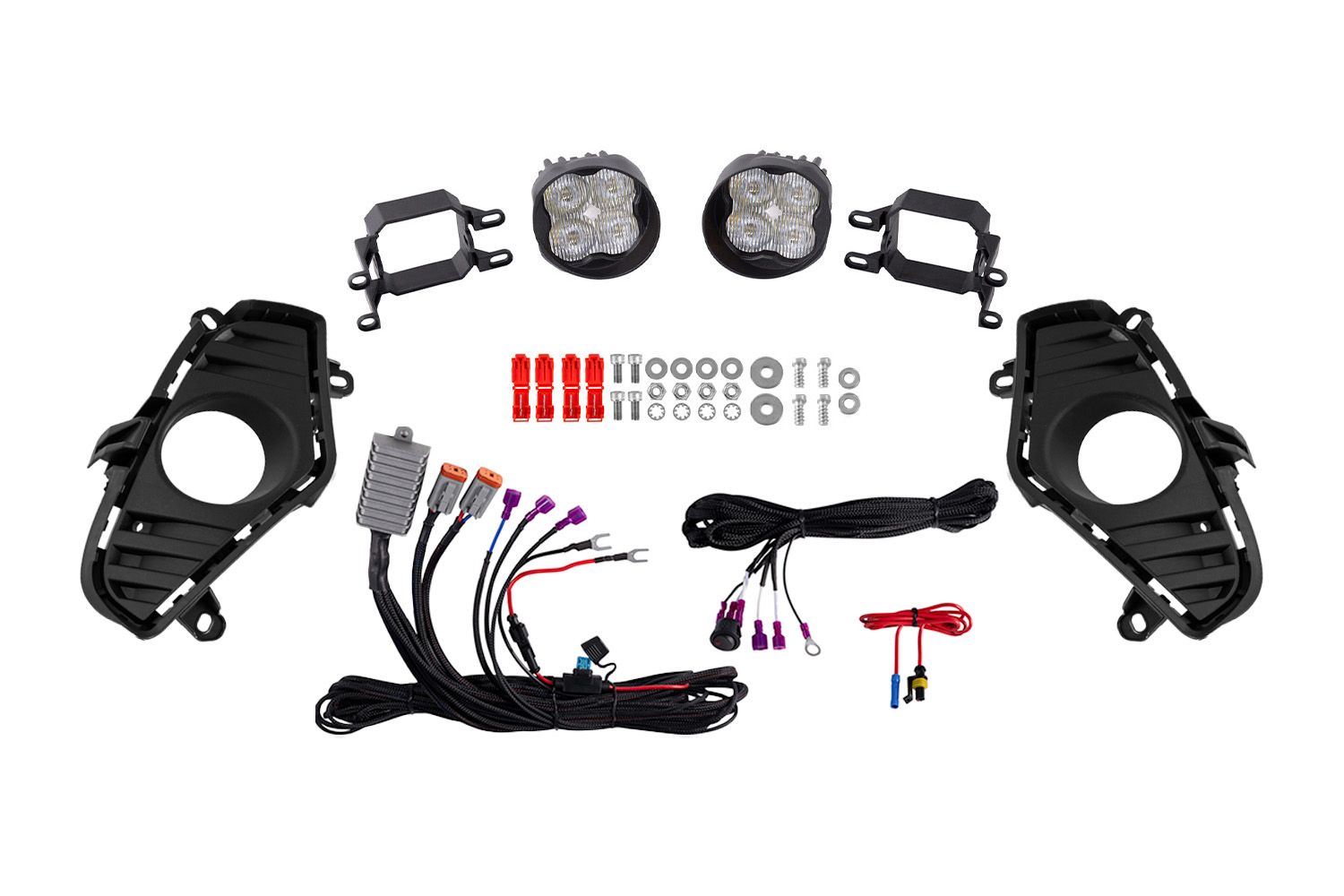

Included:
- (2) SS3 Max White 3" LED Pods
- (2) Custom Fog Bezels
- (1) Add-On Fog Wiring Harness
- (1) Installation Hardware Kit
Fitment:
-
2019–2022 Toyota RAV4 (vehicles without factory fog lights)
Note:
- Limited Lifetime Warranty
- This kit is not compatible with TRD Off-Road/Adventure trim levels, and was designed for vehicles without OEM fog lights.
- If your vehicle already has fog lamps, please select our Fog Light Upgrade Kit. If your vehicle is equipped with an LED accent light from the factory, this will be disabled.
