Diode Dynamics Stage Series 3" SS3 Max White with Amber Backlit Fog Light Kit For 2022–2025 Toyota RAV4

SKU: DD8831

SELECT FITMENT

See If This Product Fits Your Vehicle

$720.00
$720.00

Free Shipping

Free ground shipping on all orders over $99

For the absolute best fog light performance available on the 2022–2025 Toyota RAV4, the Diode Dynamics Stage Series SS3 Max Fog Light Kit in 6000K White delivers the highest output in the SS3 lineup. This direct-replacement kit produces a massive 7,920 lumens of crisp white light and 18,000 candela of peak intensity through an 80°x8° SAE-compliant fog beam—transforming low-visibility driving with a level of illumination no other fog light replacement can match. Plug-and-play harnesses and a precision-fit bezel provide a seamless OEM result with no cutting or drilling.

Max-tier TIR optics ensure every watt translates into precise, focused light with minimal glare. The integrated amber backlight activates with parking lights for a premium accent. Waterproof and built for all-season performance, this kit carries Diode Dynamics' Lifetime Warranty—if maximum output is the goal, SS3 Max White is the answer for your 2022–2025 RAV4.

Features:

  • Direct-fit replacement for factory fog lamps on 2022-2025 RAV4
  • Delivers 7,920 lumens of crisp 6000K white fog light output
  • Highest SS3 output at 18,000 cd peak intensity
  • Max-tier TIR optics deliver maximum efficiency with minimal glare
  • Custom bezel provides seamless factory-style OEM appearance
  • Plug-and-play harness connects to factory fog light circuit
  • Integrated amber backlight activates with parking lights
  • SAE-compliant for road-legal use in all 50 states

Specifications:

  • Brand: Diode Dynamics
  • Product Type: Replacement Fog Light Kit
  • Series: Stage Series SS3
  • Pod Model: SS3 Max
  • Pod Size: 3 Inch
  • Beam Angle: Fog 80°x8°
  • Output Color: 6000K White
  • Raw Lumens: 7,920 lm
  • Peak Beam Intensity: 18,000 cd
  • Illuminance: 180 lux @ 10m
  • Input Power: Main Beam 38.5W / Backlight 0.4W
  • Operating Voltage: 9–16V
  • Operating Temperature: -40°C to 85°C (-40°F to 185°F)
  • LED Emitter: Osram Ostar Projection Compact / Lumileds Automotive Grade
  • Connector: Deutsch DT
  • Driver Features: Constant Current
  • Materials: Polycarbonate Lens, Powdercoated Steel, Aluminum Casting, Rubber Gasket
  • Cooling: Passive Pin-Fin Heatsink
  • Polarity: Polarity Specific
  • SAE Compliance: SAE J583 Foglamp / SAE J575 Durability Test
  • Ingress Rating: IP69K Waterproof High Pressure

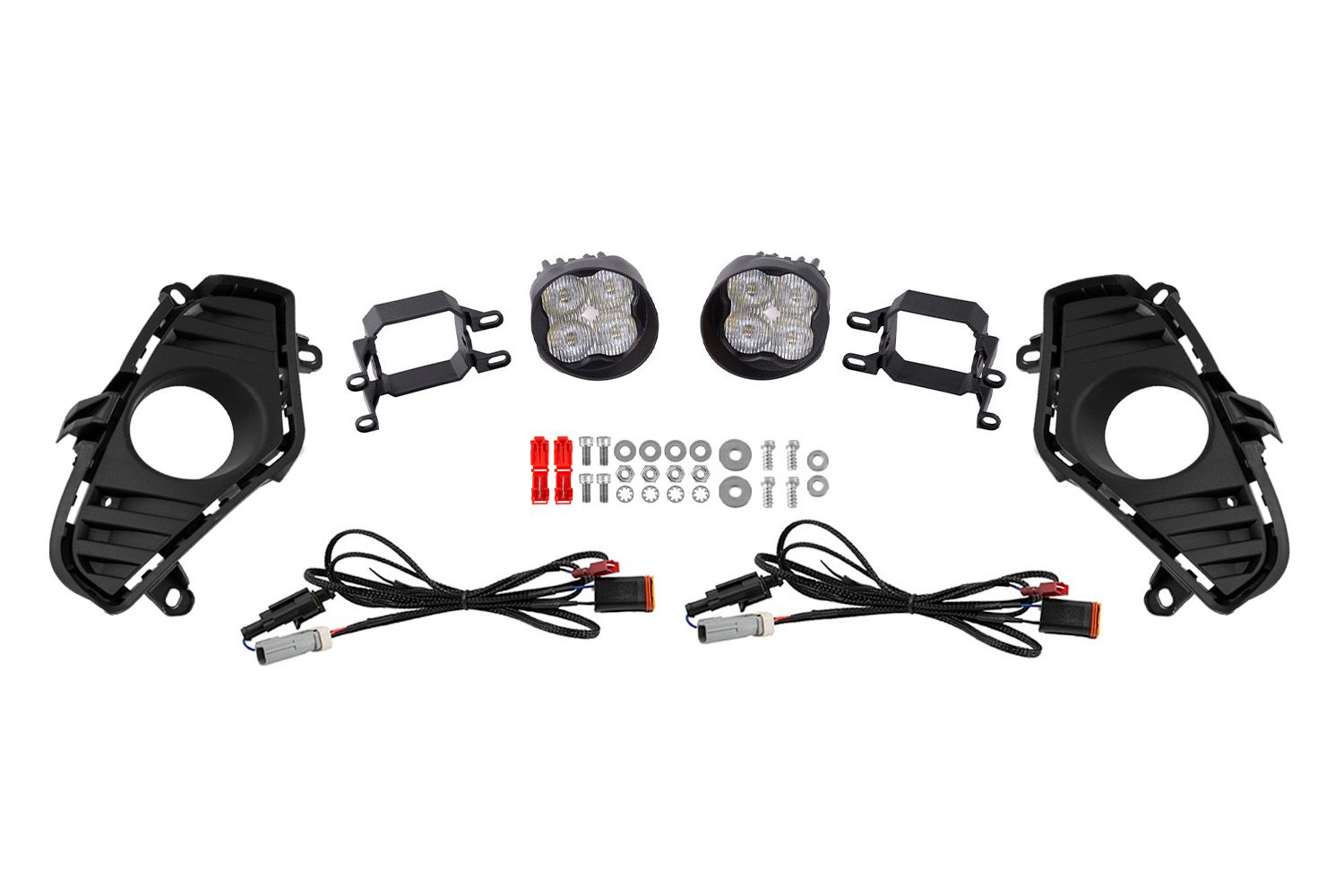

Included:

  • (2) SS3 Max White 3" LED Pods
  • (2) Type B brackets
  • (2) OEM-Style Bezels
  • (2) DJ70 4-pin DT backlight tap wires
  • (1) Mounting Hardware Kit

Fitment:

  • 2022–2025 Toyota RAV4 (vehicles with factory fog lights)

Note:

  • Limited Lifetime Warranty
  • This Kit is not compatible with TRD Off-Road/Adventure trim levels. This kit is a replacement for OEM fog lights.
