Diode Dynamics Stage Series 3" SS3 Pro White w/ Amber Backlit Fog Light Kit For 2019–2022 Toyota RAV4
SKU:
DD8821
SELECT FITMENT
See If This Product Fits Your Vehicle
- $540.00
- $540.00
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Upgrade your fog-delete 2019–2022 Toyota RAV4 to Pro-tier SS3 fog light performance with the Diode Dynamics Stage Series SS3 Pro Add-On Fog Light Kit in 6000K White. This complete kit mounts directly into the factory fog light location with a plug-and-play harness and factory-matched bezel—no cutting or drilling required. The SS3 Pro pods deliver a substantial 5,796 lumens of crisp white light through an 80°x8° SAE-compliant fog beam, a dramatic improvement over Sport-tier output that transforms nighttime and adverse-weather visibility.
The SS3 Pro's precision TIR optic collects all LED output and directs it precisely into the fog beam, producing 11,900 candela of focused intensity with minimal glare. The integrated amber backlight activates with parking lights for a modern accent effect. Waterproof and built for year-round performance, this kit is backed by Diode Dynamics' Lifetime Warranty—the high-output fog light upgrade for serious RAV4 builds.
Features:
- Adds Pro-tier SS3 fog lights to fog-delete 2019-2022 RAV4 models
- Delivers 5,796 lumens of crisp 6000K white fog light output
- Pro-tier output produces 11,900 cd of focused intensity
- Custom TIR optics direct all output with minimal glare
- Custom bezel provides seamless factory-style OEM appearance
- Plug-and-play harness connects to factory fog light circuit
- Integrated amber backlight activates with parking lights
- SAE-compliant for road-legal use in all 50 states
Specifications:
- Brand: Diode Dynamics
- Product Type: Add-On Fog Light Kit
- Series: Stage Series SS3
- Pod Model: SS3 Pro
- Pod Size: 3 Inch
- Beam Angle: Fog 80°x8°
- Output Color: 6000K White
- Raw Lumens: 5,796 lm
- Measured Output: 3,000 lm
- Peak Beam Intensity: 11,900 cd
- Illuminance: 119 lux @ 10m
- Input Power: Main Beam 36W / Backlight 0.4W
- Current Draw: 2.7A @ 13.2V
- Operating Voltage: 9–16V
- Operating Temperature: -40°C to 85°C (-40°F to 185°F)
- LED Emitter: Osram Ostar Projection Compact / Lumileds Automotive Grade
- Connector: Deutsch DT
- Driver Features: Constant Current
- Materials: Polycarbonate Lens, Powdercoated Steel, Aluminum Casting, Rubber Gasket
- Cooling: Passive Pin-Fin Heatsink
- Polarity: Polarity Specific
- SAE Compliance: SAE J583 Foglamp / SAE J575 Durability Test
- Ingress Rating: IP69K Waterproof High Pressure

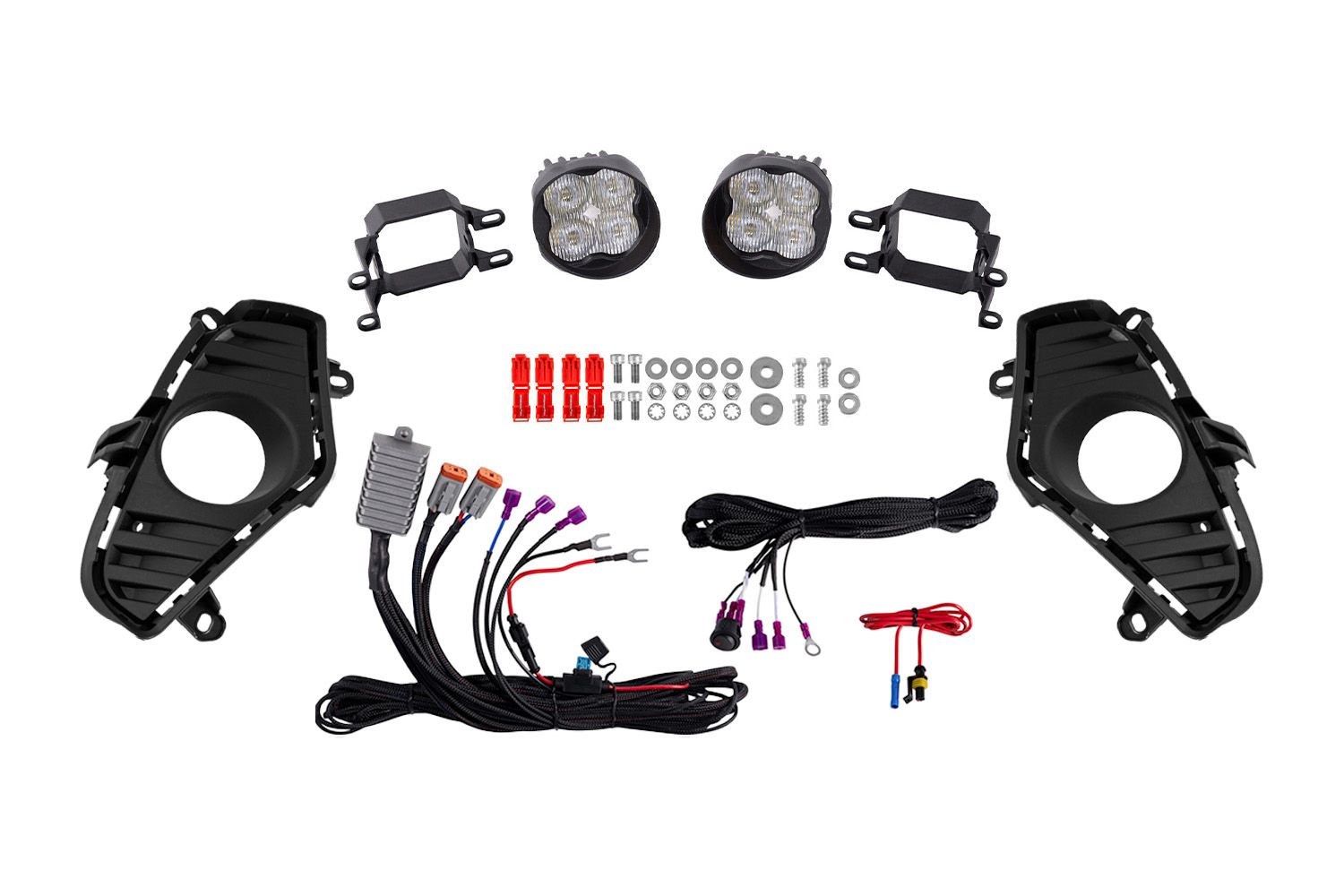

Included:
- (2) SS3 Pro White 3" LED Pods
- (2) Custom Fog Bezels
- (1) Add-On Fog Wiring Harness
- (1) Installation Hardware Kit
Fitment:
-
2019–2022 Toyota RAV4 (vehicles without factory fog lights)
Note:
- Limited Lifetime Warranty
- NOTE: This kit is not compatible with TRD Off-Road/Adventure trim levels, and was designed for vehicles without OEM fog lights.
- If your vehicle already has fog lamps, please select our Fog Light Upgrade Kit. If your vehicle is equipped with an LED accent light from the factory, this will be disabled.
