Diode Dynamics Stage Series 3" SS3 Pro Yellow with Amber Backlit Ditch Light Kit For 2019–2025 Toyota RAV4
SKU:
DD8812
SELECT FITMENT
See If This Product Fits Your Vehicle
- $460.00
- $460.00
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Take your 2019–2025 Toyota RAV4 to the next level with the Diode Dynamics Stage Series SS3 Pro Backlit Ditch Light Kit in 3000K Yellow—the flagship ditch light solution for serious builds. This complete kit mounts bolt-on to factory mounting points above the hood with no cutting or drilling required. The 3" SS3 Pro pods deliver 5,220 lumens of warm yellow light through a Combo beam (Driving and Flood) pattern, producing 33,406 candela of intense, focused output that illuminates both the road edges and the distance ahead.
Built on thick-gauge stainless steel brackets with IP67-rated pods, this kit handles demanding off-road and adverse weather conditions without compromise. The integrated amber backlight delivers a premium accent glow, and the included dual-output harness makes installation clean and straightforward. As Diode Dynamics' highest-output pod series, the SS3 Pro Yellow is backed by a Lifetime Warranty and built in the USA—the definitive ditch light kit for your RAV4. Bolt-on installation using factory mounting points no drilling needed
Features:
- Delivers 5,220 lumens of 3000K yellow light per pod
- SS3 Pro TIR optics produce 33,406 cd of focused intensity
- Combo beam covers both driving and flood patterns simultaneously
- Yellow light cuts through fog rain dust with superior contrast
- Integrated amber backlight adds visibility and premium styling
- IP67 waterproof rated for off-road and all-weather use
- Engineered and assembled in the USA with premium materials
Specifications:
- Brand: Diode Dynamics
- Product Type: Backlit Ditch Light Kit
- Series: Stage Series
- Pod Model: SS3 Pro
- Pod Size: 3 Inch
- Beam Angle: Combo (Driving and Flood)
- Output Color: 3000K Yellow
- Raw Output: 5,220 lm
- Measured Output: 2,700 lm
- Peak Beam Intensity: 33,406 cd
- Illuminance: 334 lux @ 10m
- Input Power: Main Beam 36W / Backlight 0.4W
- Current Draw: 2.7A @ 13.2V
- Operating Voltage: 9–16V
- Operating Temperature: -40°C to 85°C (-40°F to 185°F)
- LED Emitter: Osram Ostar Projection Compact / Lumileds Automotive Grade
- Connector: Deutsch DT
- Driver Features: Constant Current
- Materials: Polycarbonate Lens, Powdercoated Steel, Aluminum Casting, Rubber Gasket
- Cooling: Passive Pin-Fin Heatsink
- Polarity: Polarity Specific
- Compliance: SAE J575 Durability Test
- Ingress Rating: IP67 Waterproof

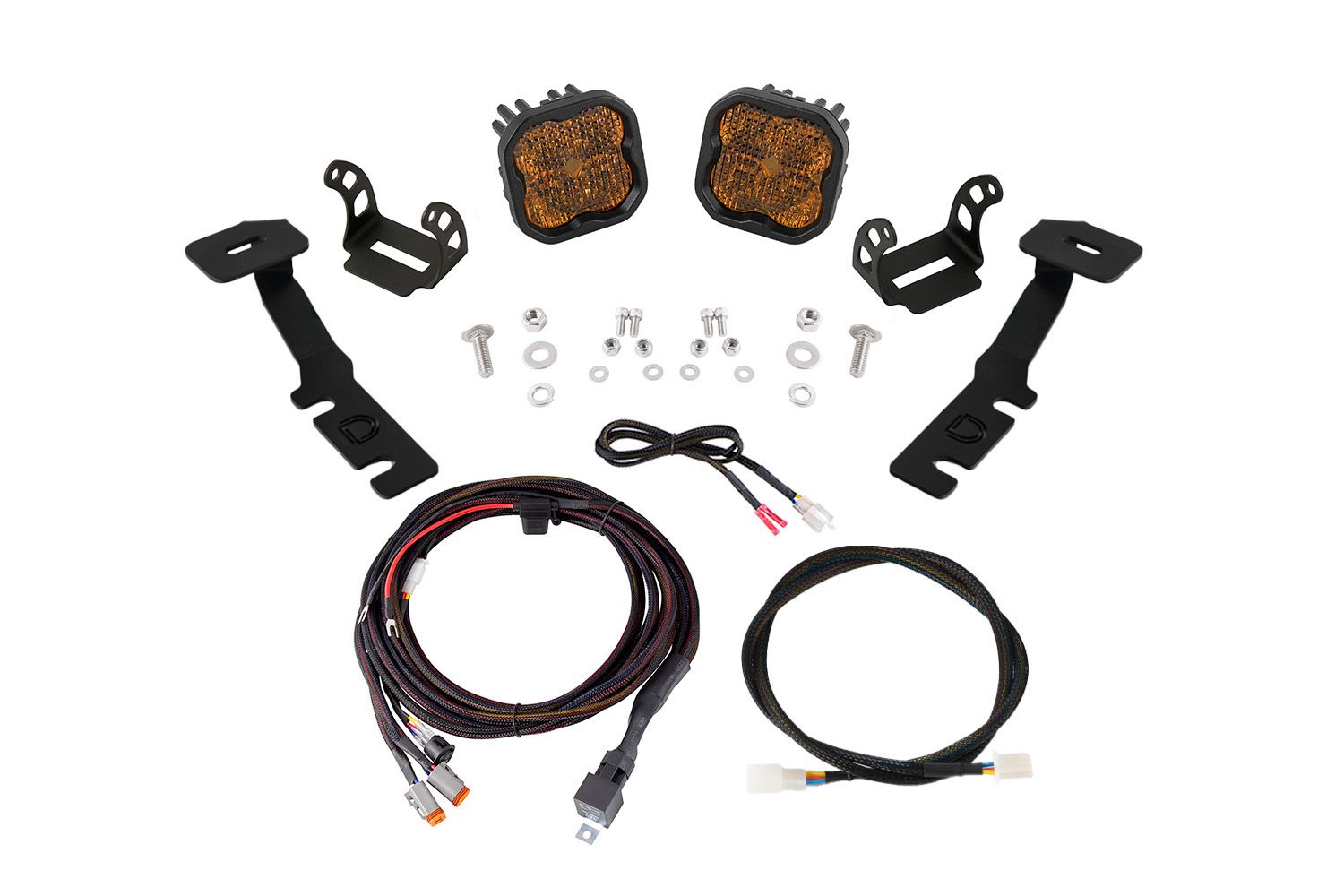

Included:
- (2) SS3 Pro Yellow 3" LED Pods
- (2) Ditch Light Brackets
- (2) Mounting Brackets
- (1) Heavy-Duty 4-Pin Dual Output Wiring Harness
- (1) 1-Meter Extension Harness
- (1) Installation Hardware Kit
- (1) Mounting Guide
Fitment:
- 2019–2025 Toyota RAV4
Note:
- Limited Lifetime Warranty
- No cutting or drilling required for installation
- Amber backlight harness included — wire to any constant 12V source
