Diode Dynamics Stage Series 3" SS3 Pro Yellow with Amber Backlit Fog Light Kit For 2022–2025 Toyota RAV4
SKU:
DD8830
SELECT FITMENT
See If This Product Fits Your Vehicle
- $520.00
- $520.00
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Get the best of both worlds—Pro-tier output and the contrast advantage of yellow light—with the Diode Dynamics Stage Series SS3 Pro Fog Light Kit in 3000K Yellow for the 2022–2025 Toyota RAV4. This direct-replacement kit delivers 5,220 lumens of warm 3000K yellow light through an 80°x8° SAE-compliant fog beam, with plug-and-play harnesses and a precision-fit bezel for a seamless OEM result and no cutting or drilling. Pro-level TIR optics produce 10,900 candela of focused intensity, combining high output with yellow light's proven advantage in fog, rain, and snow.
The integrated amber backlight activates with parking lights for a premium accent glow. Waterproof and engineered for year-round performance in any climate, this kit is backed by Diode Dynamics' Lifetime Warranty—the ideal choice for 2022–2025 RAV4 owners who want maximum clarity in all conditions.
Features:
- Direct-fit replacement for factory fog lamps on 2022-2025 RAV4
- Delivers 5,220 lumens of warm 3000K yellow fog light output
- Pro-tier TIR optics produce 10,900 cd of focused intensity
- Yellow light maximizes contrast in fog rain snow and dust
- Custom bezel provides seamless factory-style OEM appearance
- Plug-and-play harness connects to factory fog light circuit
- Integrated amber backlight activates with parking lights
- SAE-compliant for road-legal use in all 50 states
Specifications:
- Brand: Diode Dynamics
- Product Type: Replacement Fog Light Kit
- Series: Stage Series SS3
- Pod Model: SS3 Pro
- Pod Size: 3 Inch
- Beam Angle: Fog 80°x8°
- Output Color: 3000K Yellow
- Raw Lumens: 5,220 lm
- Measured Output: 2,700 lm
- Peak Beam Intensity: 10,900 cd
- Illuminance: 109 lux @ 10m
- Input Power: Main Beam 36W / Backlight 0.4W
- Current Draw: 2.7A @ 13.2V
- Operating Voltage: 9–16V
- Operating Temperature: -40°C to 85°C (-40°F to 185°F)
- LED Emitter: Osram Ostar Projection Compact / Lumileds Automotive Grade
- Connector: Deutsch DT
- Driver Features: Constant Current
- Materials: Polycarbonate Lens, Powdercoated Steel, Aluminum Casting, Rubber Gasket
- Cooling: Passive Pin-Fin Heatsink
- Polarity: Polarity Specific
- SAE Compliance: SAE J583 Foglamp / SAE J575 Durability Test
- Ingress Rating: IP69K Waterproof High Pressure

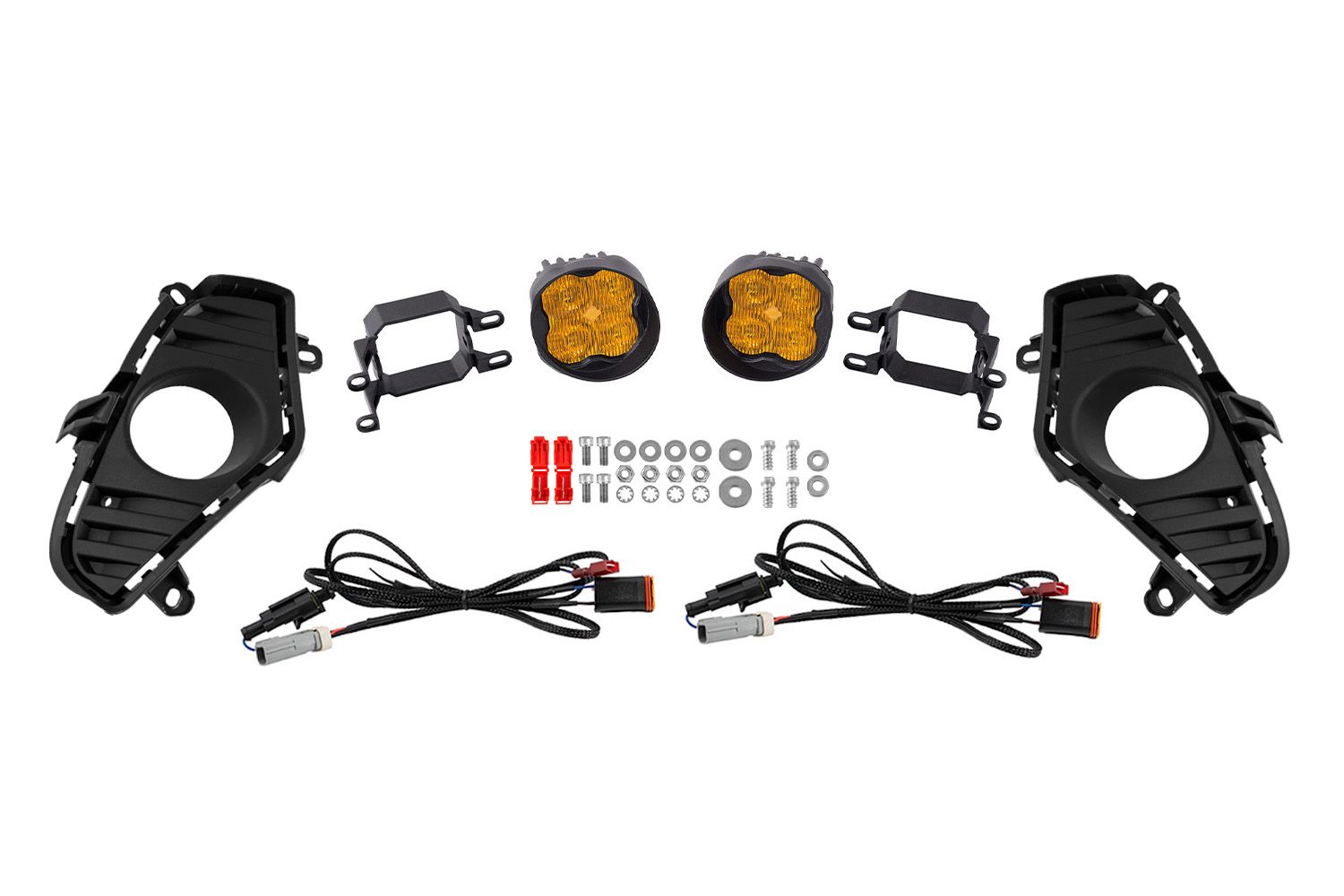

Included:
- (2) SS3 Pro LED Pods
- (2) Type B brackets
- (2) OEM-Style Bezels
- (2) DJ70 4-pin DT backlight tap wires
- (1) Mounting Hardware Kit
Fitment:
-
2022–2025 Toyota RAV4 (vehicles with factory fog lights)
Note:
- Limited Lifetime Warranty
- This Kit is not compatible with TRD Off-Road/Adventure trim levels. This kit is a replacement for OEM fog lights.
