Diode Dynamics Stage Series 3" SS3 Sport White w/ Amber Backlit Fog Light Kit For 2022–2025 Toyota RAV4
SKU:
DD8827
SELECT FITMENT
See If This Product Fits Your Vehicle
- $400.00
- $400.00
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Upgrade your 2022–2025 Toyota RAV4 factory fog lights to SS3 Sport performance with the Diode Dynamics Stage Series SS3 Sport Fog Light Kit in 6000K White. This direct-replacement kit swaps the factory fog lamp for a 3" SS3 Sport pod and a precision-fit bezel, delivering up to 42% more output than stock in a plug-and-play package—no cutting or drilling required. Plug-and-play harnesses connect to the factory fog circuit, and the SS3 pods project 2,262 lumens of crisp 6000K white light through an 80°x8° SAE-compliant fog beam.
The SS3's custom-engineered TIR optic focuses all LED output into the beam pattern, dramatically reducing wasted light and glare compared to the factory halogen. The integrated amber backlight activates with parking lights for a clean modern look. Waterproof and built for daily use in any weather, this direct-fit upgrade is backed by Diode Dynamics' Lifetime Warranty—the smart, clean upgrade for your 2022–2025 RAV4 fog lights.
Features:
- Direct-fit replacement for factory fog lamps on 2022-2025 RAV4
- Delivers 2,262 lumens of crisp 6000K white fog light output
- Up to 42% brighter than stock factory fog lampsCustom
- TIR optics focus all output reducing waste and glare
- Custom bezel provides seamless factory-style OEM appearance
- Plug-and-play harness connects to factory fog light circuit
- Integrated amber backlight activates with parking lights
- SAE-compliant for road-legal use in all 50 states
Specifications:
- Brand: Diode Dynamics
- Product Type: Replacement Fog Light Kit
- Series: Stage Series SS3
- Pod Model: SS3 Sport
- Pod Size: 3 Inch
- Beam Angle: Fog 80°x8°
- Output
- Color: 6000K White
- Raw Lumens: 2,262 lm
- Measured Output: 1,520 lm
- Peak Beam Intensity: 10,600 cd
- Illuminance: 106 lux @ 10m
- Input Power: Main Beam 14.5W / Backlight 0.4W
- Current Draw: 1.1A @ 13.2V
- Operating Voltage: 9-30V
- Operating Temperature: -40°C to 85°C (-40°F to 185°F)
- LED Emitter: Osram Ostar Projection Compact / Lumileds Automotive Grade
- Connector: Deutsch DT
- Driver Features: Constant Current
- Materials: Polycarbonate Lens, Powdercoated Steel, Aluminum Casting, Rubber Gasket
Cooling: Passive Pin-Fin Heatsink - Polarity: Polarity Specific
- SAE Compliance: SAE J583 Foglamp / SAE J575 Durability Test
- Ingress Rating: IP69K Waterproof High Pressure

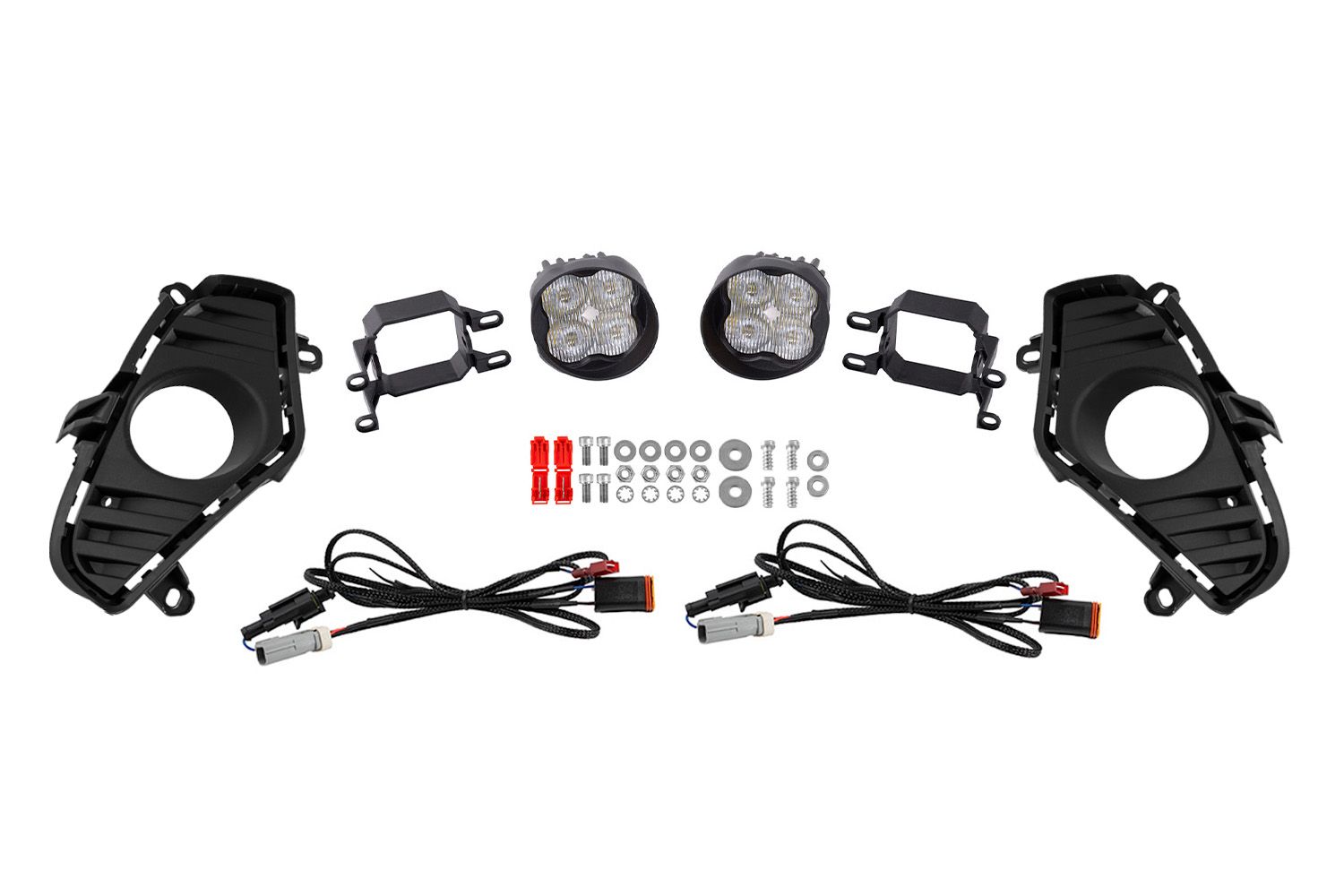

Included:
- (2) SS3 LED Pods
- (2) Type B brackets
- (2) OEM-Style Bezels
- (2) DJ70 4-pin DT backlight tap wires
- (1) Mounting Hardware Kit
Fitment:
-
2022–2025 Toyota RAV4 (vehicles with factory fog lights)
Note:
- Limited Lifetime Warranty
- This Kit is not compatible with TRD Off-Road/Adventure trim levels. This kit is a replacement for OEM fog lights
