Diode Dynamics Stage Series 3" SS3 Sport White with Amber Backlit Fog Light Kit For 2019–2022 Toyota RAV4
SKU:
DD8819
SELECT FITMENT
See If This Product Fits Your Vehicle
- $420.00
- $420.00
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Add high-output fog lighting to your fog-delete 2019–2022 Toyota RAV4 with the Diode Dynamics Stage Series SS3 Sport Add-On Fog Light Kit. This complete solution includes SS3 Sport LED pods, vehicle-specific OEM-style bezels, and a plug-and-play harness for true factory-like operation—no cutting or drilling required. Designed with precision TIR optics, the SS3 maximizes usable light output while minimizing glare, delivering superior visibility in fog, rain, snow, and low-light conditions.
The integrated amber backlight provides a distinctive modern accent, activating with your parking lights for added style and visibility. Engineered for durability and performance, this kit is SAE J583 compliant for on-road use and tested to meet SAE standards for reliability. Whether you're upgrading appearance or functionality, this SS3 fog kit delivers a clean OEM fit with premium lighting performance.
Features:
- Adds SAE-compliant SS3 fog lights to 2019-2022 RAV4 models
- Delivers 2,262 lumens of 6000K white fog light output
- Custom TIR optics focus light into an efficient fog beam pattern
- OEM-style bezels provide clean factory appearance and fitment
- Plug-and-play harness enables factory-like fog light operation
- Wide 80°x8° fog beam improves low-visibility road coverage
- Integrated amber backlight activates with parking lights
- SAE J583 compliant for legal on-road fog light use
Specifications:
- Brand: Diode Dynamics
- Product Type: Add-On Fog Light Kit
- Series: Stage Series SS3
- Pod Model: SS3 Sport
- Pod Size: 3 Inch
- Beam Pattern: SAE Fog
- Beam Angle: 80° x 8°
- Output Color: 6000K White
- Measured Output: 1,520 lm
- Raw Lumens: 2,262 lm
- Peak Beam Intensity: 10,600 cd
- Illuminance: 106 lux @ 10m
- Power Output: 14.5W (Main Beam) / 0.4W (Backlight)
- Current Draw: 1.1A @ 12.8V
- Operating Voltage: 9–30V
- Operating Temperature: -40°F to 185°F
- LED Type: Automotive Grade LED Emitters
- Connector Type: Deutsch DT
- Housing Materials: Aluminum Casting, Polycarbonate Lens
- Cooling System: Passive Pin-Fin Heatsink
- Polarity: Polarity Specific
- Compliance Ratings: SAE J583, SAE J575
- Ingress Rating: IP69K Waterproof

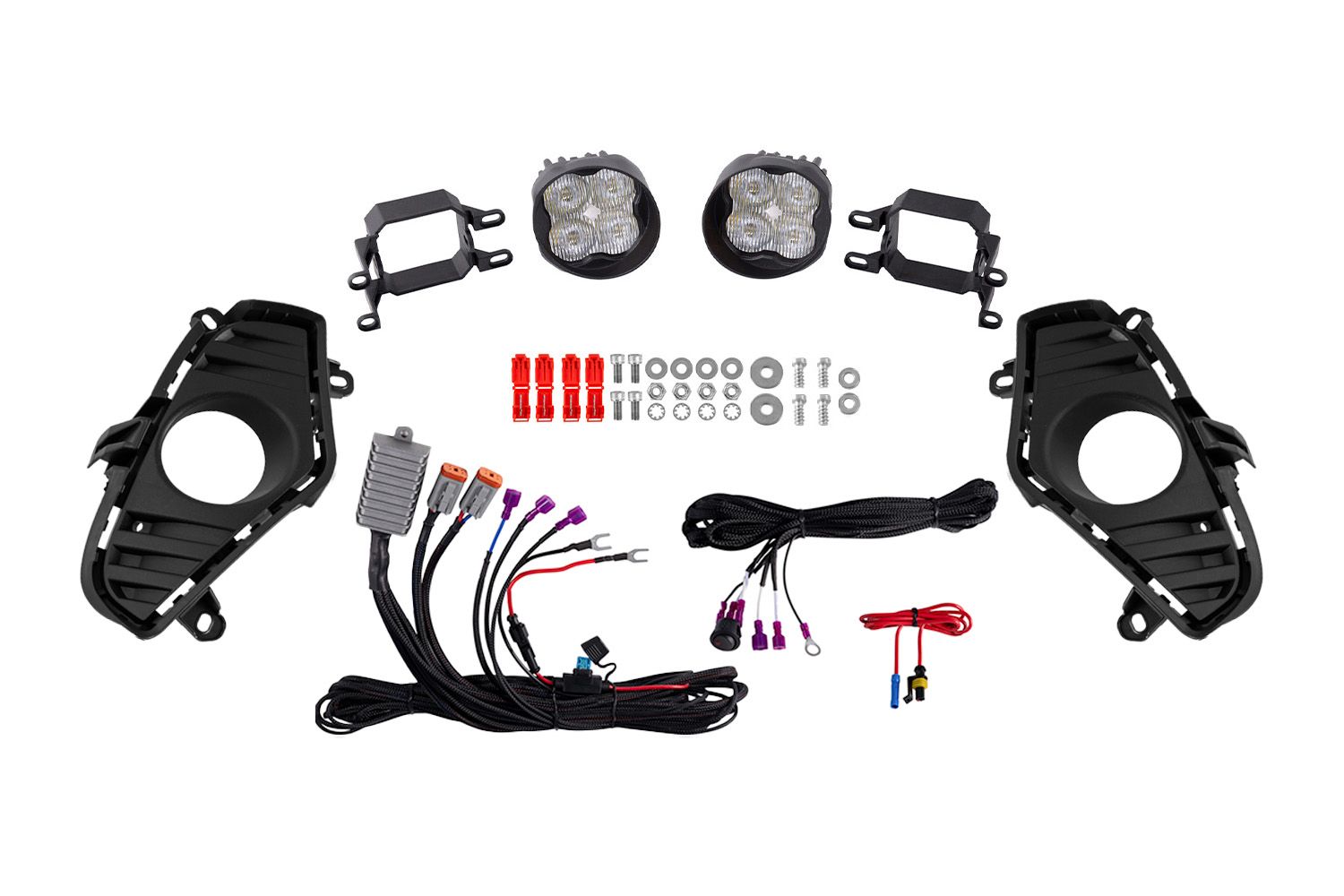

Included:
- (2) SS3 Sport White 3" LED Pods
- (2) Type B Mounting Brackets
- (2) OEM-Style Fog Bezels
- (1) Add-On Fog Light Wiring Harness
- (1) Installation Hardware Kit
- (1) Mounting Guide
Fitment:
- 2019–2022 Toyota RAV4 (vehicles without factory fog lights)
Note:
- Limited Lifetime Warranty
- This kit is not compatible with TRD Off-Road/Adventure trim levels, and was designed for vehicles without OEM fog lights. If your vehicle already has fog lamps, please select our Fog Light Upgrade Kit.
- If your vehicle is equipped with an LED accent light from the factory, this will be disabled.
