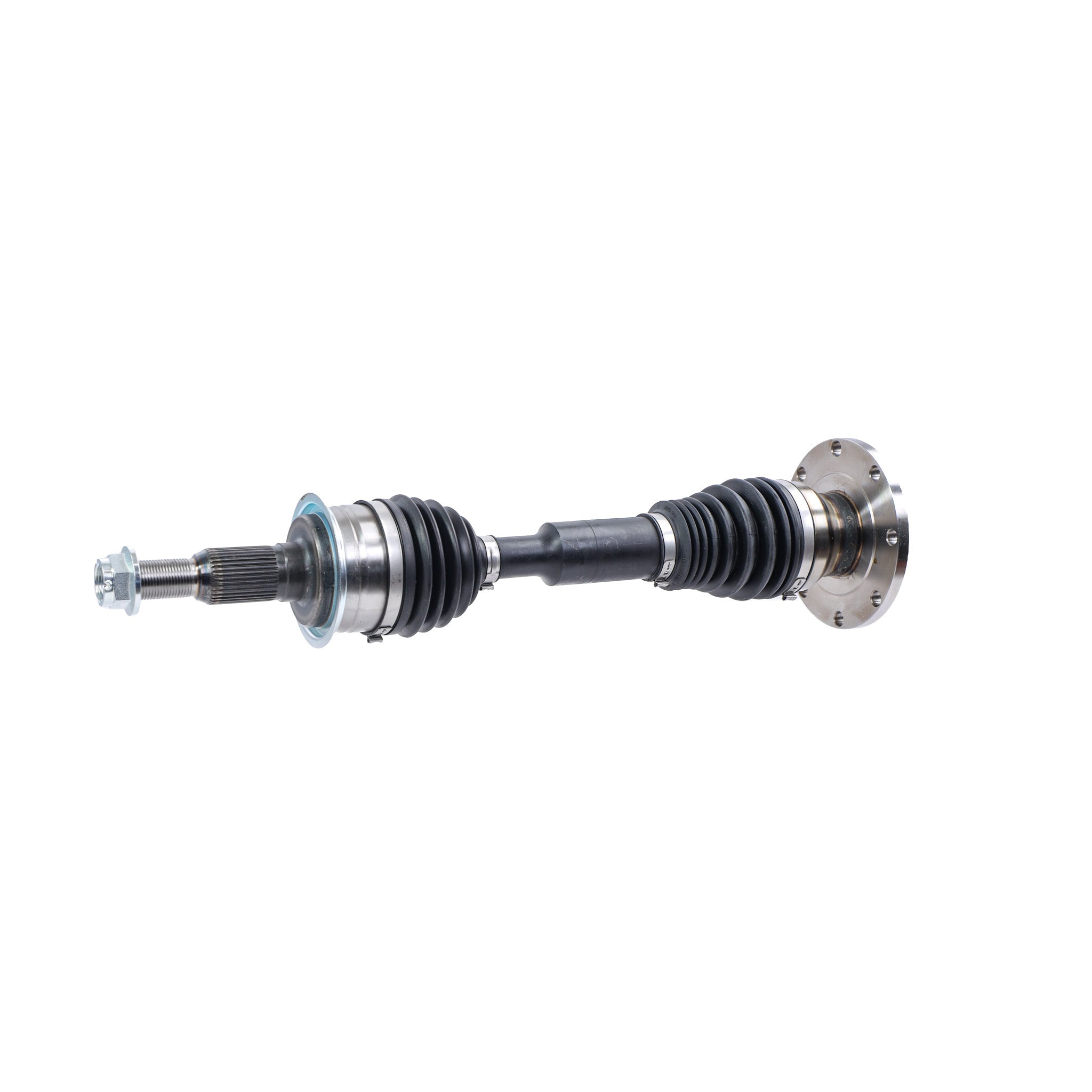

DMAX Extended Travel Front CV Axle Assembly, 2015-2019 LML/L5P
SKU:
DMAX-8356-EXT
SELECT FITMENT
See If This Product Fits Your Vehicle
- $263.99
- $263.99
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Fits: 2015 thru 2019 Chevy Silverado/GMC Sierra 2500HD/3500HD LML/L5P Duramax Diesel
*Sold Individually, will fit either side*
Wearing out CV axles? DmaxStore has the solution.
This Extended Travel CV Axle Assembly is built to handle the real-world abuse Duramax owners put their trucks through, especially leveled and lifted applications. With up to 47° of articulation compared to the factory axle’s ~23°, this axle dramatically reduces bind, stress, and premature failure at increased ride heights.
The thermoplastic elastomer boots provide superior flex-fatigue resistance, excellent tear strength, improved water sealing, and better performance across extreme temperature ranges compared to traditional rubber boots. Internally, upgraded cages, races, and bearings ensure smooth, reliable operation even at maximum articulation—where most factory and aftermarket axles fail.
Unlike competitors that rely on 3-ball designs, this axle utilizes an 8-ball CV joint, distributing load more evenly for increased strength, durability, and long-term reliability. Backed by a Lifetime Warranty, this axle is designed to perform and last.
Features:
- Extended Travel Design - Allows significantly more plunge and suspension travel than OE axles, reducing bind in leveled and lifted set ups.
- Higher Articulation Capability - Nearly doubles the factory articulation, minimizing CV joint stress and failure at increased ride height.
- Thermoplastic Elastomer CV Boots - Superior resistance to tearing, cracking, water intrusion, and temperature related degradation compared to standard rubber boots.
- Upgraded Cages, Races & Bearings - Engineered for smooth operation and durability at extreme articulation angles.
- 8-Ball CV Joint Design - Distributes load across more contact points than the factory style 3 bearing joints for increased strength and longevity.
- Lifetime Replacement Warranty - Covered for the original purchaser.
Includes:
- 1x CV axle shaft (left or right side)
- 1x CV axle nut washer
- 1x CV axle nut, self locking
Notes:
- Fits both (driver/passenger) sides
- The Axles Shafts are thicker than stock, this may cause clearance issues on trucks with aftermarket Coilover Shock Lift Kits.
- CV Axle Spacers: You will still need to run them if your truck currently has them installed. Install Instructions
Replaces Part#
- 22813485
Warranty:
- DmaxStore CV axles come with a Lifetime warranty to the original purchaser. If a failure occurs, Dmaxstore will replace the failed part only once it has been received at our facility. Shipping costs are not included under the warranty. Some standard wear is not covered.
Product Specs
SKU:
DMAX-8356-EXT
Brand:
DmaxStore
