Eibach Load-Leveling System Rear Springs and Adjusters 250lb Rate Rear Lift For 2003-2024 Toyota 4Runner 2WD/4WD
SKU:
AK31-82-071-02-02
SELECT FITMENT
See If This Product Fits Your Vehicle
- $549.00
- $549.00
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Once a 4Runner is carrying 200 pounds or more of gear at the rear, a standard spring runs out of travel and the ride goes to pieces. Eibach's LOAD-LEVELING System in the 250lb rating is built for exactly that vehicle, using ERO race springs on threaded height-adjustable perches to deliver roughly 0.5 to 2 inches of rear lift with weight aboard.
Bump stops are part of the kit for a reason — with weight aboard, controlling the last inch of travel matters as much as the spring rate, and Eibach supplies them matched to the springs. The 6061-T6 billet aluminum threaded seat provides 38mm of adjustment, and the system remains ERO Off-Road Race Spring compatible for further tuning. Made in the U.S.A. with a five-year warranty.
Features:
- Restores rear load-carrying capability for loaded rigs
- Adjustable threaded spring seat fine tunes ride height
- ERO Race Springs and bump stops tune rear load capacity
- Eibach ERO Off-Road Race Spring compatible for adaptability
- 6061-T6 billet aluminum threaded spring seat
- Adjuster provides 38mm of height adjustment range
- Maximizes rear ground clearance under load
- Made in the U.S.A. with a five-year warranty
Specifications:
- Brand: Eibach
- Part Type: Rear Load-Leveling Spring System
- Product Line: LOAD-LEVELING System
- Kit Contents: Pair of Rear Springs + Adjusters + Bump Stop Kit
- Lift Height: Rear +0.5in to 2in with 200lbs of added rear weight
- Damper Design: ERO Off-Road Race Coil Spring
- Mounts: 6061-T6 Billet Aluminum Threaded Spring Seat
- Spring Technology: Off-Road Race Spring
- Adjustment: Height Adjustable
- Testing: Individually Dyno Tested
- Country of Manufacture: United States
- Sold As: Complete Kit
- Warranty: 5 Year

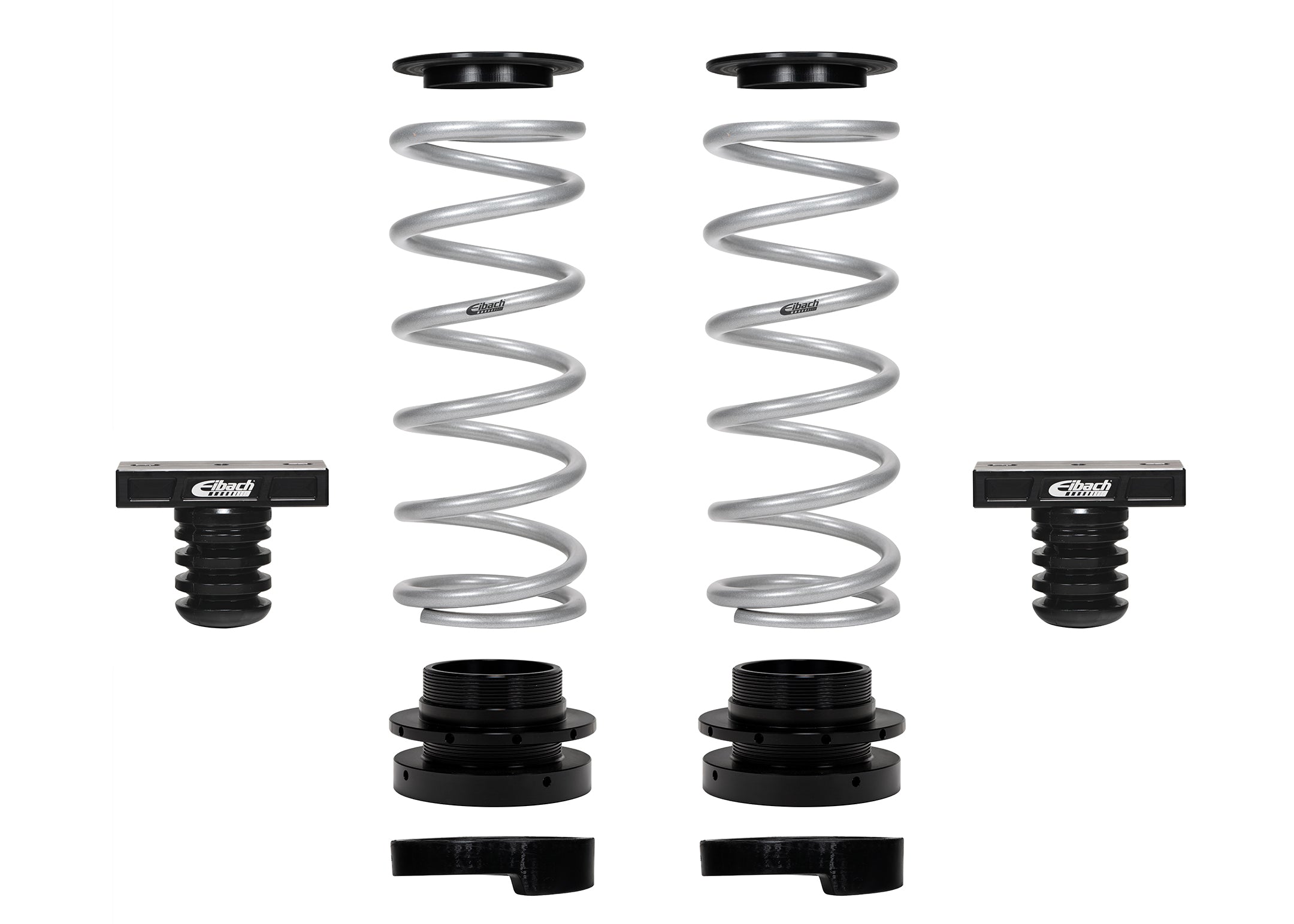

Included:
- (2) Eibach ERO Rear Coil Springs
- (2) Eibach Threaded Spring Seat Adjusters
- (1) Eibach Bump Stop Kit
Fitment:
- 2003-2009 Toyota 4Runner V6 4.0L 2WD/4WD
- 2003-2009 Toyota 4Runner V6 4.0L 2WD/4WD w/X-REAS
- 2010-2024 Toyota 4Runner 4WD
- 2010-2024 Toyota 4Runner RWD
- 2019-2020 Toyota 4Runner TRD Pro 4WD
- 2021-2022 Toyota 4Runner TRD Pro SUV 4.0L V6 4WD N280
Notes:
- 5 Year Warranty
- Warranty does not cover modifications, alterations, or misuse
- Rated for vehicles with 250lbs of added weight
- Approximate range of lift shown with 200lbs of added rear weight
- Adjuster has 38mm of adjustment
- Eibach does not guarantee fitment, height or warranty on unlisted applications
