Fleece Coolant Bypass Kit For 2007.5-2012 Ram 2500/3500 6.7L 24V Cummins Diesel
SKU:
FPE-CLNTBYPS-CUMMINS-0712
SELECT FITMENT
See If This Product Fits Your Vehicle
- $399.99
- $399.99
$0.00- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Fleece Performance coolant bypass for the 2007.5-2012 RAM with 6.7L Cummins seamlessly integrates with your truck for an OE fit-and-finish. The rear cylinders on the 6.7L Cummins suffer from a lack of coolant flow, and therefore, experience the highest coolant temperatures. This can cause excessive pressure to build in the cooling system, especially the rear of the block and blow out freeze plugs externally, or the smaller diameter plugs under the valve cover, leading to a failure. Our coolant bypass kit adds a secondary thermostat, that unlike other brands, works based on temperature instead of excessive pressure. This solves the problem before pressure becomes an issue by ensuring consistent temperatures across all six cylinders. One of the biggest issues on the 6.7L Cummins is the coolant flow problem to the rear cylinders. This can cause catastrophic failure or blow outs of the freeze plugs in an over-temperature / over-pressure condition. The Fleece Performance Coolant Bypass is one of the most important additions you make to improve the reliability and longevity of the Cummins platform.
Features:
- Lowers coolant temperature at the rear cylinders
- Ensures consistent temperatures across all cylinders
- Prevents damaging coolant pressure build up
- Complete kit comes with braided hose and AN O-ring fittings to ensure a leak-free installation
Fitment:
- 2007.5 Dodge Ram 2500/3500 6.7L 24V Cummins
- 2008 Dodge Ram 2500/3500 6.7L 24V Cummins
- 2009 Dodge Ram 2500/3500 6.7L 24V Cummins
- 2010 Ram 2500/3500 6.7L 24V Cummins
- 2011 Ram 2500/3500 6.7L 24V Cummins
- 2012 Ram 2500/3500 6.7L 24V Cummins

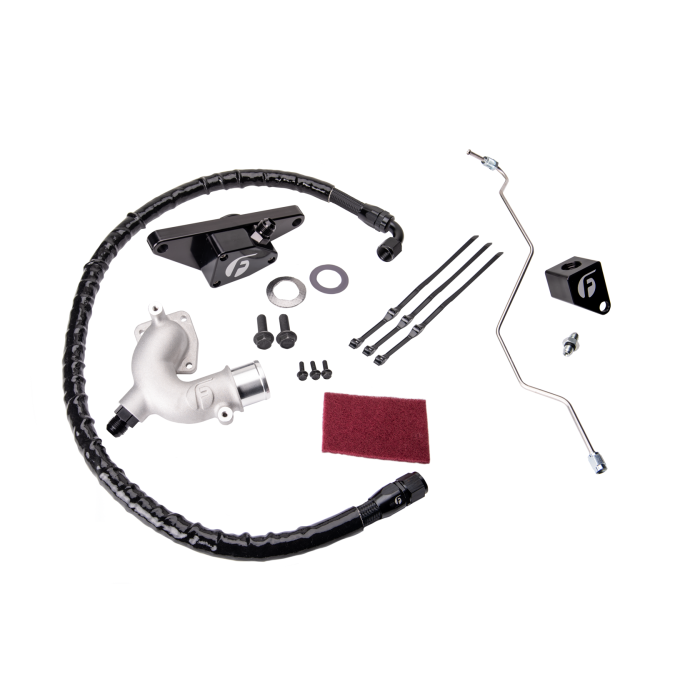

Includes:
- Rear coolant bypass thermostat housing
- Front coolant bypass thermostat housing
- New EGR cross-over tube gaskets
- Braided nylon coolant bypass hose with protective high temperature sleeve and AN fittings
- Exhaust back pressure sensor mounting block and back pressure sensor line
- All mounting hardware
Note:
- 1 Year Limited Parts Warranty
- For model years 2007 - 2018 6.7L trucks, including both automatic and manual equipped transmissions, factory installed transmission fluid heat exchangers are uncommon but can be found in northern climates. For customers with a 6.7L that has a factory installed heat exchanger, an additional heater tube is required and can be purchased at your local Chrysler Dealership [PN:68048997AA] to complete the installation
Product Specs
SKU:
FPE-CLNTBYPS-CUMMINS-0712
Brand:
Fleece
