Fleece Engine Mounted Fuel Filter Assembly For 2011-2024 6.7L Ford Powerstroke

SKU: FPE-FMC-UHFA-1123

SELECT FITMENT

See If This Product Fits Your Vehicle

$199.00
$199.00
$0.00

Free Shipping

Free ground shipping on all orders over $100

All New Fleece Performance replacement under hood filter assembly for the Ford F250/350/450/550 6.7L Powerstroke! The plastic OE filters are prone to cracking and fuel leakage - eliminate the risk of a cracked filter with our billet aluminum cap assembly and billet aluminum quick disconnect fittings. Our drop-in replacement filter assembly locks directly into the stock filter location and utilizes a replaceable spin-on Donaldson filter that is easily serviceable. The kit includes an extra Donaldson fuel filter, further extending the time before you need to purchase an additional filter.



Features:

  • Drop-in replacement for the factory under hood filter
  • Heavy duty anodized billet aluminum cap
  • Heavy duty anodized billet aluminum quick-disconnect fittings
  • Steel adapter fitting for the filter



Fitment:

  • 2011-2024 F-250/F-350/F-450/F-550 6.7L Powerstroke

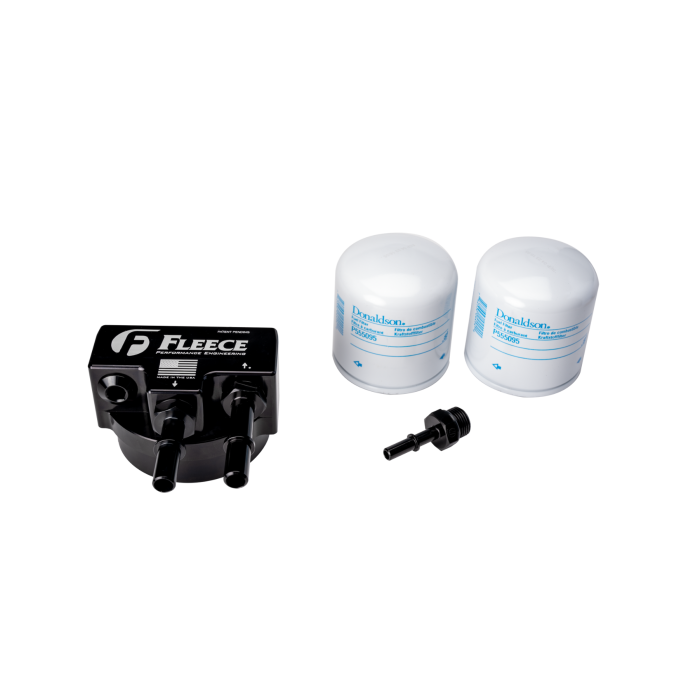

Includes:

  • (1) 5/16" Quick Connect to 3/4"-16 O-ring
  • (1) 12mm Quick Connect to 3/4"-16 O-ring
  • (1) 1/2" Quick Connect to 3/4"-16 O-ring
  • (1) Fuel Filter Adapter Fitting - M16x1.5
  • (1) 3/4"-16 Hex Socket Plug w/ O-Ring -8AN
  • (2) Donaldson P555095 Filter
  • All Mounting Hardware



Note:

  • 1 Year Limited Parts Warranty
  • For 2011-2016 model trucks use only one inlet and one outlet fitting
  • For 2017-2024 trucks, an additional quick disconnect fitting is provided for the required additional fuel return
  • Fits 2011-2024 trucks equipped with an S&S Diesel Motorsport DCR conversion kit or the S&S Diesel Motorsport CP4 Disaster Prevention Kit
  • Replaces the under hood factory filter in Motorcraft Kits FD-4615 and FD-4625AA that contain manufacturer part numbers HC3Z9N184C and BC3Z9N184B
