FOX 2.5 Factory Race Coilover Set w/ RR For 07-18 Chevy Silverado/Sierra 1500
FOX 2.5 Factory Race Coilover Set w/ RR For 07-18 Chevy Silverado/Sierra 1500
FOX 2.5 Factory Race Coilover Set w/ RR For 07-18 Chevy Silverado/Sierra 1500
FOX 2.5 Factory Race Coilover Set w/ RR For 07-18 Chevy Silverado/Sierra 1500
Fox

FOX 2.5 Factory Race Coilover Set w/ RR For 07-18 Chevy Silverado/Sierra 1500

SKU: 883-02-121 | 883-24-003

SELECT FITMENT

See If This Product Fits Your Vehicle

$3,399.90
$3,399.90

Free Shipping

Free ground shipping on all orders over $99
Description

Transform your suspension with FOX's Factory Race Series 2.5 Coilover Reservoir Shocks – front and rear – engineered for lifted 2007–2018 Chevrolet Silverado 1500 and GMC Sierra 1500 (2WD & 4WD). The front coilovers (883-02-121) deliver up to 2 inches of front lift with a shock travel of 4.36 inches, giving you the clearance and comfort you need on- and off-road. These bolt-on coilovers feature FOX’s patented internal bypass zones for a plush ride on pavement and controlled damping in rough terrain. They're built with 2.5" smooth bore zinc-plated steel bodies, hard-anodized aluminum components, and 7/8" chrome-plated steel shafts to endure heavy off-road abuse.

In the rear, FOX’s 2.5 Factory Race Series Shocks (883-24-003) offer up to 0–1.5 inches of lift with a massive shock travel of 8.97 inches, making them ideal for high-articulation rear suspension setups. The remote reservoirs provide increased oil capacity and consistent performance during extended use or aggressive driving. With a race-developed piston, redundant sealing systems, and application-specific valving, these rear shocks deliver the control, comfort, and reliability needed for overlanding, towing, or off-road adventuring. Fully serviceable and tunable, this front and rear coilover  and shocks set is a no-compromise upgrade for serious performance.

Features:

  • Provides up to 2" front lift and 1.5" rear lift for added clearance
  • 2.5" smooth bore zinc-plated steel shock bodies
  • External reservoir prevents heat fade on trails
  • Patented bypass zones adapt to terrain in real time
  • 7/8" NitroSteel shafts resist flex and corrosion
  • CNC-machined, hard-anodized billet components
  • Redundant seals ensure long-term durability
  • Tuned for lifted 2007–2018 Silverado & Sierra 1500

Specifications:

       Front Coilovers:

  • Series: Factory Race
  • Front Lift Height: 0–2 inches
  • Travel: 4.36 inches
  • Body: 2.5" smooth bore, zinc-plated seamless steel
  • Body Plating: Zinc-plated and double-clear coated
  • Reservoir: 2.5" smooth bore, honed seamless alloy (Remote)
  • Components: Black-anodized CNC-machined 6061-T6 billet aluminum
  • Shaft: 7/8" hard chrome-plated steel
  • Piston: 6061-T6 hard-anodized, high-flow aluminum
  • Valving: Application-specific for maximum performance
  • Seals: Redundant pack – main seal, wiper seal, scraper seal
  • Bearings: PTFE-lined, heat-treated alloy steel spherical bearings
  • Extended Length: 18.46 inches
  • Compressed Length: 14.10 inches
  • Top Mount: OEM
  • Bottom Mount: Bar Pin

       Rear Shocks:

  • Series: Factory Race
  • Rear Lift: 0-1.5 inches
  • Travel: 8.97 inches
  • Body: 2.5" smooth bore zinc-plated seamless steel
  • Body Plating: Zinc-plated and double-clear coated for long-lasting finish
  • Components: Black-anodized, CNC-machined 6061-T6 billet aluminum
  • Shaft: 7/8" hard chrome-plated, heat-treated alloy steel
  • Piston: Race-developed high-flow piston design
  • Valving: Application-specific to maximize performance
  • Seals: Redundant sealing pack — main, wiper, and scraper seals
  • Bearings: PTFE-lined, heat-treated alloy steel spherical bearings
  • Extended Length: 24.82 inches
  • Compressed Length: 15.85 inches
  • Top Mount: Eyelet
  • Bottom Mount: Eyelet

Included:

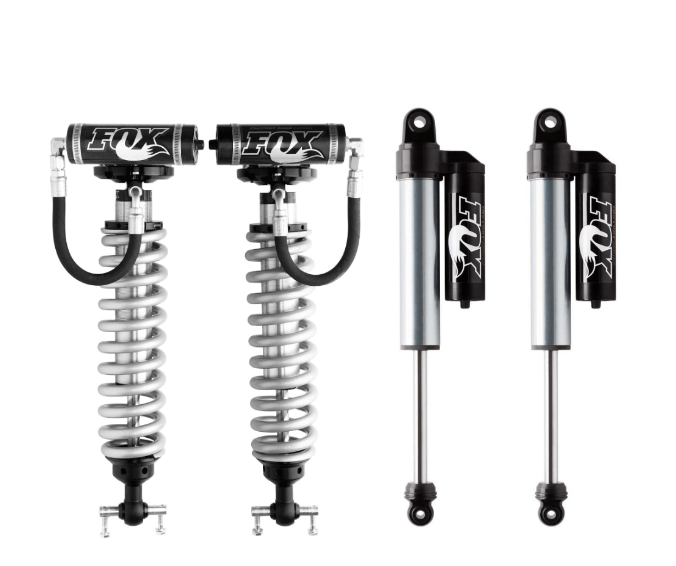

  • (2) Fox 2.5 Factory Race Series Front Coilovers w/ Remote Reservoir
  • (2) Fox 2.5 Factory Race Series Rear Shocks w/ Remote Reservoir
  • (1) Front Reservoir Mounting Hardware Kit
  • (1) Front Hardware Kit
  • (1) Rear Reservoir Mounting Hardware Kit
    (1) Rear Hardware Kit

Fitment:

  • 2007-2018 Chevrolet Silverado 1500 2WD/4WD
  • 2007-2018 GMC Sierra 1500 2WD/4WD

Notes:

  • Limited Lifetime Warranty
  • Does not fit vehicles with magnetic suspension
Fitment
Fitment

Product Specs

SKU:
883-02-121 | 883-24-003
Brand:
Fox
