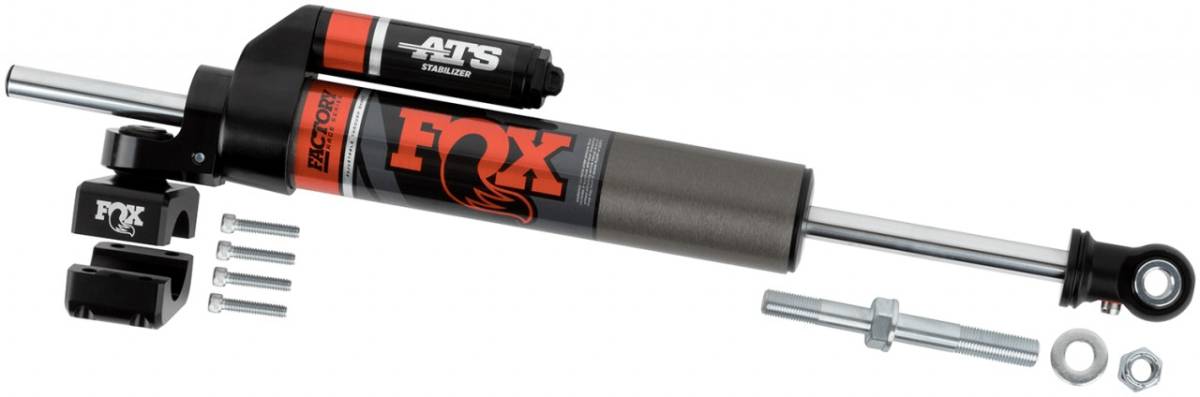

Image of FOX Factory Race Series 2.0 ATS Stabilizer For Jeep Wrangler JK 1 3/8" Tie Rod
Image of FOX Factory Race Series 2.0 ATS Stabilizer For Jeep Wrangler JK 1 3/8" Tie Rod
Image of FOX Factory Race Series 2.0 ATS Stabilizer For Jeep Wrangler JK 1 3/8" Tie Rod
Image of FOX Factory Race Series 2.0 ATS Stabilizer For Jeep Wrangler JK 1 3/8" Tie Rod
Image of FOX Factory Race Series 2.0 ATS Stabilizer For Jeep Wrangler JK 1 3/8" Tie Rod

FOX Factory Race Series 2.0 ATS Stabilizer For Jeep Wrangler JK 1 3/8" Tie Rod

SKU: 983-02-145

SELECT FITMENT

See If This Product Fits Your Vehicle

$499.95
$499.95
$541.00

Free Shipping

Free ground shipping on all orders over $100

With conventional steering stabilizers, turning in one direction creates an increase in pressure inside the stabilizer as the shaft occupies more volume in the body and displaces the oil. The repercussion is a push or pull steering force felt by the driver as the stabilizer attempts to return to its neutral state. To overcome this unidirectional force, dual opposing stabilizers are often used, but this requires additional mounting hardware and space.

The Factory Race Series 2.0 Stabilizer ATS utilizes an Adjustable Through Shaft (ATS) architecture that eliminates shaft fluid displacement throughout the stabilizer’s entire travel in both directions. The external piggyback reservoir provides additional fluid capacity and utilizes an Internal Floating Piston (IFP) to separate the fluid from the nitrogen gas charge to eliminate cavitation. For increased control that can be tailored to any driving style and setup, an external adjuster provides 24 clicks of adjustment to fine tune the feel. The result is highly customizable and consistent damping of unwanted steering feedback in a single, bolt-on stabilizer.

The Factory Race Series 2.0 Stabilizer ATS includes application specific mounting hardware and is available in multiple clamp sizes for stock or aftermarket heavy duty tie-rods.



Features:

  • 24 clicks of adjustability
  • Extended Length 22.19"
  • Compressed Length 14.07"
  • Travel 8.12"
  • Top Mount: Tie Rod Mount
  • Bottom Mount: Eyelet
  • Hard-anodized for a durable finish
  • CNC-machined 6061-T6 billet aluminum
  • Made in the USA



Fitment:

  • 2007-2018 Jeep Wrangler JK



Note:

  • Fits Factory & 1 3/8" Jeep Tie Rods

Product Specs

SKU:
983-02-145
Brand:
Fox

Installation Details

Installation Instructions: Download
