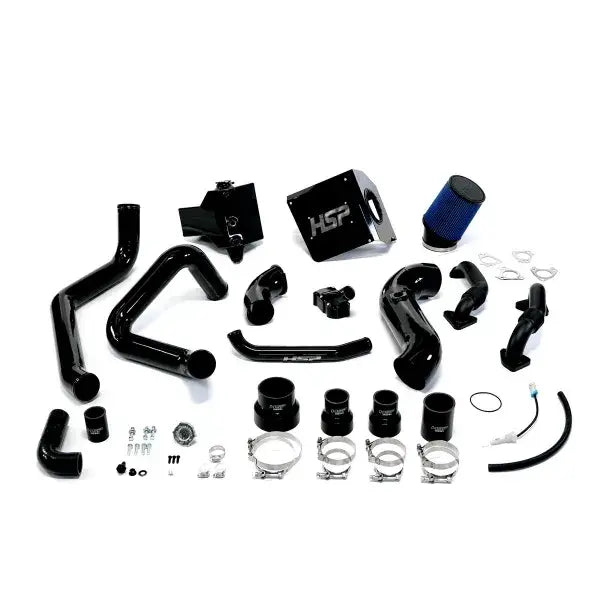

HSP Deluxe Max Air Flow Bundle For 2003-2004 GMC/Chevrolet 6.6L LB7 Duramax
SKU:
184-HSP
SELECT FITMENT
See If This Product Fits Your Vehicle
- $2,395.00
- $2,395.00
$2,438.00- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Availability:
This item is made to order, potential lead times of 15-18 business days may occur.
Looking for a kit that has it all? Featuring a mandrel-bent 4-inch intake tube for massive airflow gains, HSP's signature heat shield box eliminating unwanted hot air entering the cold air intake. For every 1-degree increase in intake air temperature will result in a 3hp loss. This kit also features HSP's high flow turbo mouthpiece that outflows any ported mouthpiece on the market. It will also include HSP's hot side and cold side intercooler piping.
The factory intercooler tubing on 2001-2004 Duramax trucks is very restrictive and failure-prone. The factory intercooler tubing is only 2.25 inches in diameter and has a 90-degree boot at the intercooler that is prone to failure. With this routing there is a possibility of the hot side intercooler tube rubbing on the power steering line, causing the line to rub a hole in the tube resulting in a boost leak.
HSP's solution to this problem is to run the hot side tube directly into the intercooler using race-proven 5 layer silicone boots resulting in lower temperatures, better airflow, and added clearance in tight places. To help get the exhaust gases out of the engine, this kit includes our factory replacement 2 inches up pipes.
Our up pipes use .120 inch wall tubing with the toughest bellows on the market to ensure they last as long as your truck. When it comes to styling we have included our forward-facing thermostat housing with coolant return to help keep your IHI turbo running cool. Is your factory coolant tank starting to show its age? Also included is our factory replacement coolant tank to keep your engine bay looking good. Our coolant tank features an all-aluminum design with an incorporated low coolant sensor.
Features:
- Powder Coat options clean up the engine bay
- Give you more power
- Better engine sound
- Cooler temperatures
- High strength boots
- Better connections to reduce the likelihood of failure
- Increased tube dimensions
- Increased flow
Fitment:
- 2003-2004 GMC/Chevrolet 6.6L LB7 Duramax VIN Code 1
Included:
- (1) Cold Air Intake
- (1) Stock Turbo Inlet Horn
- (1) Hot Side Intercooler Tube
- (1) Billet Thermostat Housing Kit
- (1) Cold Side Tube
- (1) Driver Side Replacement Up-Pipe
- (1) Passenger Side Replacement Up-Pipe
- (1) Replacement Coolant Tank
- (1) Cold Air Intake
- (1) 3" x 4" Straight Boot
- (4) 3" T-bolt Clamps
- (2) 2.25" - 3" Reducer Boots
- (2) 2.25" T-bolt Clamps
- (2) M4 x .7x10mm Bolt
- (3) 10-32 x 3/8" Button Head Screw
- (4) 1/8" Aluminum Rivet
- (1) 3.5" - 4.5" Reducer Boot
- (1) 3.5" T- Bolt Clamp
- (1) 4.5" T-Bolt Clamp
- (1) 4.5" Filter
- (3) M6 x 1.0x20mm Button Head Screw
- (1) LB7 Turbo Inlet O-Ring
- (1) Radiator Cap
- (5) 1/2" Worm Gear Clamps
- (1) 1" Worm Gear Clamp
- (1) 1/2" NPT float Switch
- (1) Low Coolant Sensor
- (1) Thermostat Housing O-Ring
- (3) M6 x 1.0x35mm Flange Bolt
- (6) M6 Fender Washers
- (3) M6 Nylon Lock Nut
- (4) M8x1.25-25mm Socket Cap Bolt
- (4) M6 x 1.0-18mm Socket Cap Bolt
- (1) M14 x 1.5 to 3/8" Hose Barb
- (1) M14 x 1.5 Metric Port Plug
- (1) Metric bond Seal 14mm
- (1) 1.75" x 3" Straight Boot
- (1) 1.75" 90 ° Boot
- (4) 1 3/4" Worm Gear Clamps
- (2) Up-pipe Gaskets (Turbo side)
- (2) Up-Pipe Gaskets (Manifold Side)
- 16" of Trim seal
- 1.5' of 3/8" Heater hose
Note:
- Limited Lifetime Warranty
- Engine code is dictated by the 8th character of the VIN number. The 10th character is the year of the truck
- Powder Colors: Raw/Ink Black/Illusion Blue/Illusion Purple/Illusion Cherry/Kingsport Grey/M&M Orange/Silk Satin Black/Polar White
Product Specs
SKU:
184-HSP
Brand:
HSP Diesel
availability remarks:
This item is made to order, potential lead times of 15-18 business days may occur.
