Icon Stage 1 Suspension System For 17-19 F-150 Raptor
SKU:
K93151
SELECT FITMENT
See If This Product Fits Your Vehicle
- $8,127.05
- $8,127.05
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
The ICON Stage 1 Suspension System was developed for 2017-2019 Ford F-150 Raptor owners looking for a significant improvement in suspension performance without dramatically altering the truck's proven factory geometry. Built around ICON's premium 3.0 Series front coilovers and rear bypass shocks, this system improves ride quality, increases suspension control, and provides the adjustability needed for everything from daily driving to aggressive off-road use.
Through extensive testing on and off the pavement, ICON engineered this package to take advantage of the Gen 2 Raptor's suspension design while addressing the limitations of the factory shock package. The result is a suspension system that delivers improved control, greater consistency, and enhanced confidence across a wide range of driving conditions.
Front 3.0 Series Coilovers
The heart of the Stage 1 system is ICON's 3.0 Series coilover package. These coilovers feature increased shaft travel, larger internal components, and vehicle-specific valving to improve both ride quality and suspension performance.
- Adjustable ride height from 1 to 3 inches of front lift
- Vehicle-specific shock valving
- Increased wheel travel compared to factory shocks
- 50% increase in damping capability over OE shocks
- Improved on-road stability and reduced body roll
- Enhanced off-road performance and control
ICON's Compression Damping Control Valve (CDCV) technology provides ten levels of adjustment, allowing drivers to fine-tune suspension response based on terrain, driving style, and vehicle load.
Bump Zone Technology
The front coilovers incorporate ICON's hydraulic Bump Zone technology, which progressively increases damping force during the final portion of suspension travel. This helps improve bottom-out resistance when driving aggressively off-road or encountering large impacts.
- Progressive damping during heavy compression events
- Improved bottom-out control
- Better performance during high-speed off-road driving
- Enhanced suspension confidence in rough terrain
Rear 3.0 Series Bypass Shocks
The rear of the Stage 1 system utilizes ICON's 3.0 Series three-tube bypass shocks designed specifically for the Gen 2 Raptor. These shocks maximize available wheel travel while utilizing factory mounting locations.
Multiple bypass zones provide controlled damping throughout the suspension's travel range, helping maintain stability, traction, and ride comfort both on and off the road.
- Three-tube bypass shock design
- Multiple compression and rebound control zones
- 50% increase in damping capability over factory shocks
- Large 12-inch finned reservoirs for improved cooling
- Tool-free external adjustability
- Optimized for factory mounting locations
Built for Long-Term Performance
Every major shock component is designed with durability and serviceability in mind. Heavy-duty shock shafts, premium spherical bearings, hard-anodized internal components, and rebuildable construction allow the system to be serviced and tuned as vehicle needs evolve.
- 1-inch CNC-machined shock shafts
- Premium FK spherical bearings
- Hard-anodized pistons and top caps
- Fully rebuildable and revalveable design
- Lifetime warranty against spring sagging or breakage

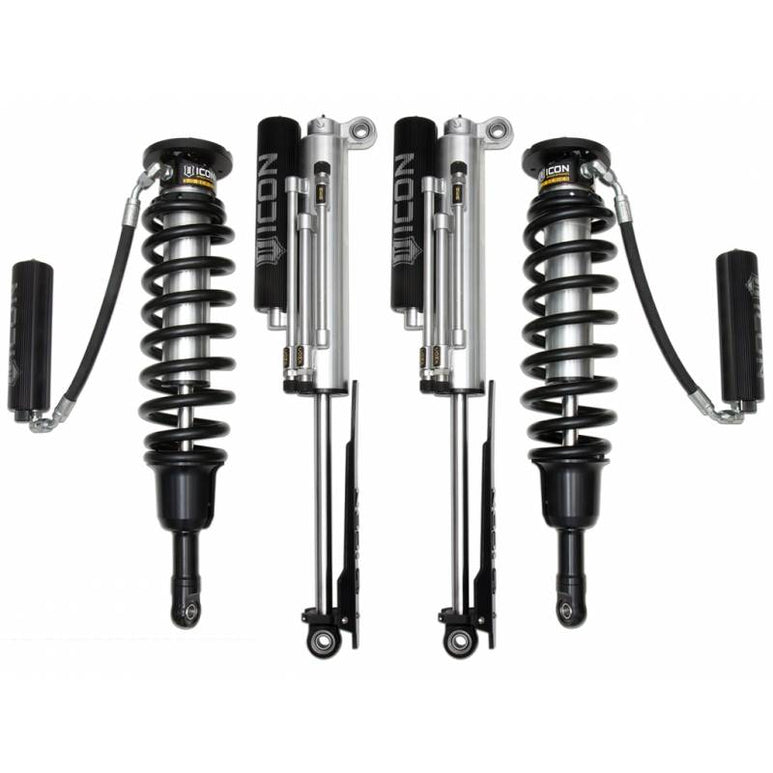

System Components
- ICON 3.0 Series Front Coilover Kit with CDCV adjustment
- ICON 3.0 Series Rear Three-Tube Bypass Shocks
Included Components:
- 95002 (Qty. 1) – 2017-UP Raptor Front 3.0 VS RR CDCV Coilover Kit
- 95205 (Qty. 1) – 2017-UP Raptor Rear 3.0 Series Bypass Shock Pair
Wheel & Tire Fitment
- OEM Wheels & Tires: Yes
- Aftermarket Wheels: 8.5 Inch Wide with 5 Inch Backspacing
- Aftermarket Tires: 35 x 12.50
Larger tire combinations may fit but additional trimming may be required depending on wheel offset and tire selection.
Product Specs
SKU:
K93151
Brand:
Icon Vehicle Dynamics
