Icon Stage 2 Suspension System For 17-19 F-150 Raptor

SKU: K93152

SELECT FITMENT

See If This Product Fits Your Vehicle

$9,870.00
$9,870.00

Free Shipping

Free ground shipping on all orders over $99
Description

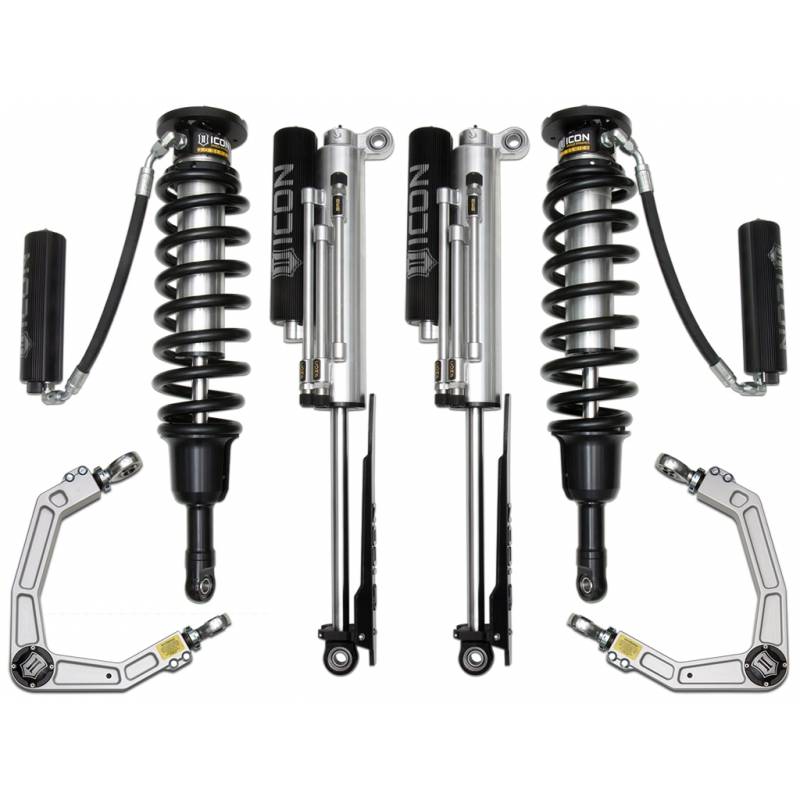

The ICON Stage 2 Suspension System builds on the performance of the Stage 1 package by adding ICON's billet aluminum upper control arms to complement the front and rear 3.0 Series shock package. Designed for 2017-2019 Ford F-150 Raptors, this system improves suspension travel, alignment capability, steering feel, and front-end geometry while maintaining excellent on-road comfort and off-road performance.

For Raptor owners who plan to utilize additional lift height, larger tires, or more aggressive off-road driving, the addition of ICON upper control arms helps maximize the performance potential of the suspension system while maintaining proper alignment characteristics.

Front 3.0 Series Coilovers with CDCV Adjustment

At the front of the system are ICON's 3.0 Series coilovers featuring Compression Damping Control Valve (CDCV) technology. These coilovers provide increased travel, improved damping control, and adjustable ride quality for a wide range of driving conditions.

  • Adjustable ride height from 1 to 3 inches of front lift
  • Vehicle-specific shock valving
  • Increased wheel travel over factory suspension
  • 50% increase in damping capability compared to OE shocks
  • Reduced body roll and improved handling
  • Ten-position CDCV compression adjustment

The large 3.0-inch shock body, finned reservoirs, and custom spring package work together to provide consistent performance on the street, on the trail, and at higher off-road speeds.

Billet Upper Control Arms

The primary upgrade that separates Stage 2 from Stage 1 is the addition of ICON's billet aluminum upper control arms. These arms are engineered to improve suspension geometry while providing the strength and articulation needed for aggressive off-road use.

  • CNC-machined 6061 billet aluminum construction
  • Built-in caster correction
  • On-vehicle camber and caster adjustment
  • Improved steering feel and alignment capability
  • Increased suspension travel potential
  • Designed specifically for lifted Raptor applications

By correcting suspension geometry and improving alignment adjustability, the upper control arms help maintain predictable handling while maximizing the performance benefits of the front coilovers.

ICON Delta Joint Technology

The upper control arms utilize ICON's Delta Joint, which combines the durability of a traditional ball joint with the articulation capabilities typically associated with a uniball design.

  • High-angle articulation capability
  • Greaseable design for extended service life
  • Noise-free operation
  • Corrosion-resistant housing
  • Protected from dirt and moisture intrusion
  • Greater durability for daily-driven vehicles

The Delta Joint design helps eliminate many of the maintenance concerns associated with exposed uniball systems while retaining excellent suspension movement.

Rear 3.0 Series Bypass Shocks

The rear suspension is supported by ICON's 3.0 Series three-tube bypass shocks. Designed specifically for the Gen 2 Raptor, these shocks maximize wheel travel while utilizing factory mounting locations.

  • Three-tube bypass shock design
  • Multiple compression and rebound control zones
  • External tool-free adjustability
  • 12-inch finned reservoirs for improved cooling
  • Patented Anti-Wobble Link system
  • Optimized for factory rear suspension geometry

Multiple damping zones allow the shocks to maintain control throughout suspension travel while delivering improved comfort and stability across changing terrain.

Built for Long-Term Serviceability

All major suspension components are designed to be serviced, rebuilt, and tuned as vehicle needs change. Premium materials and rebuildable construction help ensure long-term durability and performance.

  • 1-inch CNC-machined shock shafts
  • Premium FK spherical bearings
  • Hard-anodized internal components
  • Fully rebuildable and revalveable shocks
  • Lifetime warranty against spring sagging or breakage

System Components

  • ICON 3.0 Series Front Coilover Kit with CDCV adjustment
  • ICON Billet Aluminum Upper Control Arm Kit with Delta Joints
  • ICON 3.0 Series Rear Three-Tube Bypass Shocks

Included Components:

  • 95002 (Qty. 1) – 2017-UP Raptor Front 3.0 VS RR CDCV Coilover Kit
  • 95205 (Qty. 1) – 2017-UP Raptor Rear 3.0 Series Bypass Shock Pair
  • 98561DJ (Qty. 1) – 10-UP Raptor Billet UCA Delta Joint Kit

Wheel & Tire Fitment

  • OEM Wheels & Tires: Yes
  • Aftermarket Wheels: 8.5 Inch Wide with 5 Inch Backspacing
  • Aftermarket Tires: 35 x 12.50

Larger tire combinations may fit but trimming may be required depending on wheel offset and tire selection.

Fitment
Fitment

Product Specs

SKU:
K93152
Brand:
Icon Vehicle Dynamics
part type:
Suspension & Steering
