Icon Stage 4 Suspension System For 17-19 F-150 Raptor
SKU:
K93154
SELECT FITMENT
See If This Product Fits Your Vehicle
- $14,419.53
- $14,419.53
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
The ICON Stage 4 Suspension System is the most complete package in this group for 2017-2019 Ford F-150 Raptor owners who want serious off-road control, improved suspension balance, and additional bottom-out protection. Building on the front coilovers, billet upper control arms, rear bypass shocks, and multi-rate leaf springs found in the Stage 3 system, Stage 4 adds ICON's hydraulic rear bump stop kit for greater control during hard impacts and aggressive terrain.
This system is designed for Raptor owners who push their trucks harder off-road, carry added gear, or want a more complete suspension package that improves ride quality, rear-end control, chassis stability, and impact management.
Hydraulic Rear Bump Stop System
The defining upgrade in the Stage 4 system is ICON's hydraulic rear bump stop kit. Factory bump stops have limited energy absorption and can release energy harshly during rebound, which can lead to a rough ride and reduced control in aggressive off-road conditions.
ICON's hydraulic bump stops help manage the final portion of rear suspension travel by absorbing impact energy more progressively. This improves bottom-out resistance, reduces rear-end kick, and helps the truck remain more composed when landing, crossing whoops, or driving through rough terrain at speed.
- 2.5 Inch travel hydraulic bump stops
- Improved bottom-out resistance
- Reduces rear-end kick in rough terrain
- Velocity-sensitive damping technology
- Vehicle-specific bump stop tuning
- Smooth engagement during hard compression events
Reinforced Rear Structure
The rear bump stop system includes more than just the hydraulic bump stops. ICON also includes heavy-duty steel clamshell brackets, a billet aluminum frame crossmember, adjustable tension rods, and the hardware needed for installation.
- 6061 billet aluminum crossmember increases chassis rigidity
- Steel clamshell brackets reinforce critical frame areas
- Adjustable tension rods help preload the frame against torsional force
- Heavy-duty 1.25 Inch CNC-machined nitro steel shafts
- Replaceable noise-reducing striker pads
- Fully serviceable design
Front 3.0 Series Coilovers with CDCV Adjustment
The front suspension uses ICON's 3.0 Series coilovers with Compression Damping Control Valve adjustment. These coilovers provide increased wheel travel, improved damping capacity, and adjustable ride height while maintaining strong on-road comfort.
- Adjustable ride height from 1 to 3 inches of front lift
- Vehicle-specific valving
- 50% increase in damping capability over factory shocks
- Improved body control and stability
- 10-position CDCV compression adjustment
- Hydraulic Bump Zone technology for added bottom-out resistance
Billet Upper Control Arms with Delta Joints
ICON billet aluminum upper control arms help correct front-end geometry and provide the alignment range needed for lifted Raptor applications. The included Delta Joints combine the articulation of a uniball-style joint with the sealed durability of a heavy-duty ball joint.
- CNC-machined 6061 billet aluminum construction
- Built-in caster correction
- On-vehicle camber and caster adjustment
- Delta Joint articulation and durability
- Improved steering response
- Designed for lifted Raptor suspension geometry
Rear 3.0 Series Bypass Shocks
ICON's 3.0 Series rear bypass shocks provide controlled damping throughout the suspension travel range. Multiple compression and rebound zones allow the truck to stay comfortable during normal driving while providing the control needed for aggressive off-road terrain.
- Three-tube bypass design
- Multiple compression and rebound control zones
- Tool-free external adjustability
- 12 Inch finned reservoirs for improved cooling
- Patented Anti-Wobble Link system
- Urethane shin guards help protect shock shafts and rod ends
Multi-Rate Rear Leaf Springs
The included ICON multi-rate leaf spring system improves rear suspension compliance, adds droop travel, and helps reduce axle wrap. The adjustable design allows the spring rate to be configured for different vehicle setups, from lighter daily-driven trucks to Raptors carrying added gear, racks, tools, or overland equipment.
- Three user-adjustable spring-rate configurations
- Improved ride quality over choppy terrain
- Reduced axle wrap
- Additional rear suspension droop travel
- Triple military wrap front eyelet and rear half wrap
- Leaf separators and tip inserts help reduce noise and friction
Built for Serviceability
Major suspension components in the Stage 4 system are built for long-term performance and serviceability. The shocks and bump stops are fully serviceable, allowing the system to be maintained, rebuilt, and tuned as vehicle use changes over time.
- 1 Inch CNC-machined shock shafts
- Premium FK spherical bearings
- Hard-anodized internal components
- Fully rebuildable and revalveable shocks
- Serviceable hydraulic bump stops
- Lifetime warranty against spring sagging or breakage

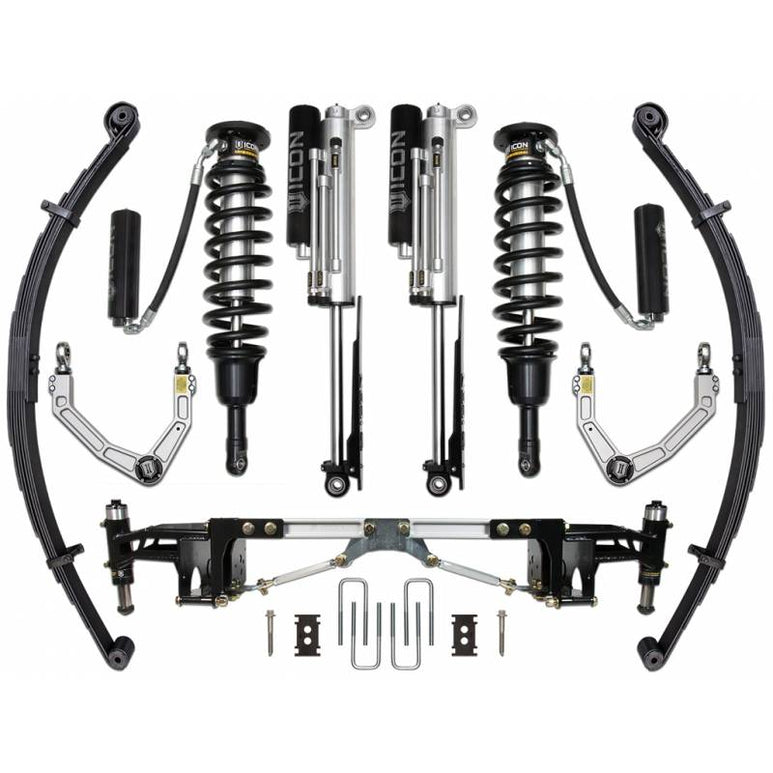

System Components
- ICON 3.0 Series Front Coilover Kit with CDCV adjustment
- ICON Billet Upper Control Arm Kit with Delta Joints
- ICON 3.0 Series Rear Three-Tube Bypass Shocks
- ICON Hydraulic Rear Bump Stop Kit
- ICON Multi-Rate Rear Leaf Spring Kit
Included Components:
- 95002 (Qty. 1) – 2017-UP Raptor Front 3.0 VS RR CDCV Coilover Kit
- 95205 (Qty. 1) – 2017-UP Raptor Rear 3.0 Series Bypass Shock Pair
- 98561DJ (Qty. 1) – Raptor Billet UCA Delta Joint Kit
- 95225 (Qty. 1) – Raptor Multi-Rate Leaf Spring Kit
- 95121 (Qty. 1) – Raptor Rear Air Bump Kit
Wheel & Tire Fitment
- OEM Wheels & Tires: Yes
- Aftermarket Wheels: 8.5 Inch Wide with 5 Inch Backspacing
- Aftermarket Tires: 35 x 12.50
Larger tire combinations may fit, but trimming may be required depending on wheel offset and tire selection.
Product Specs
SKU:
K93154
Brand:
Icon Vehicle Dynamics
part type:
Suspension & Steering
