Diode Dynamics Stage Series 3" SS3 Pro Yellow w/ Amber Backlit Fog Light Kit For 2019–2022 Toyota RAV4
SKU:
DD8822
SELECT FITMENT
See If This Product Fits Your Vehicle
- $540.00
- $540.00
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Achieve maximum contrast and visibility in any conditions with the Diode Dynamics Stage Series SS3 Pro Add-On Fog Light Kit in 3000K Yellow, a Pro-tier fog upgrade for fog-delete 2019–2022 Toyota RAV4 models. Plug-and-play installation connects directly to the factory fog circuit, and a custom-fit bezel delivers a seamless OEM appearance with no cutting or drilling required. The SS3 Pro pods put 5,220 lumens of warm 3000K yellow light into an 80°x8° SAE-compliant fog beam—high output combined with yellow's proven contrast advantage in fog, rain, and snow.
With 10,900 candela of focused intensity from the SS3 Pro's precision TIR optic, these pods deliver exactly where it counts. The integrated amber backlight activates with parking lights for a distinctive accent. Waterproof and built for all-season performance, this kit is backed by Diode Dynamics' Lifetime Warranty—the ultimate yellow fog light upgrade for your RAV4.
Features:
- Adds Pro-tier SS3 fog lights to fog-delete 2019-2022 RAV4 models
- Delivers 5,220 lumens of warm 3000K yellow fog light output
- Yellow light maximizes contrast in fog rain snow and dust
- Pro-tier TIR optics produce 10,900 cd of focused intensity
- Custom bezel provides seamless factory-style OEM appearance
- Plug-and-play harness connects to factory fog light circuit
- Integrated amber backlight activates with parking lights
- SAE-compliant for road-legal use in all 50 states
Specifications:
- Brand: Diode Dynamics
- Product Type: Add-On Fog Light Kit
- Series: Stage Series SS3
- Pod Model: SS3 Pro
- Pod Size: 3 Inch
- Beam Angle: Fog 80°x8°
- Output Color: 3000K Yellow
- Raw Lumens: 5,220 lm
- Measured Output: 2,700 lm
- Peak Beam Intensity: 10,900 cd
- Illuminance: 109 lux @ 10m
- Input Power: Main Beam 36W / Backlight 0.4W
- Current Draw: 2.7A @ 13.2V
- Operating Voltage: 9–16V
- Operating Temperature: -40°C to 85°C (-40°F to 185°F)
- LED Emitter: Osram Ostar Projection Compact / Lumileds Automotive Grade
- Connector: Deutsch DT
- Driver Features: Constant Current
- Materials: Polycarbonate Lens, Powdercoated Steel, Aluminum Casting, Rubber Gasket
- Cooling: Passive Pin-Fin Heatsink
- Polarity: Polarity Specific
- SAE Compliance: SAE J583 Foglamp / SAE J575 Durability Test
- Ingress Rating: IP69K Waterproof High Pressure

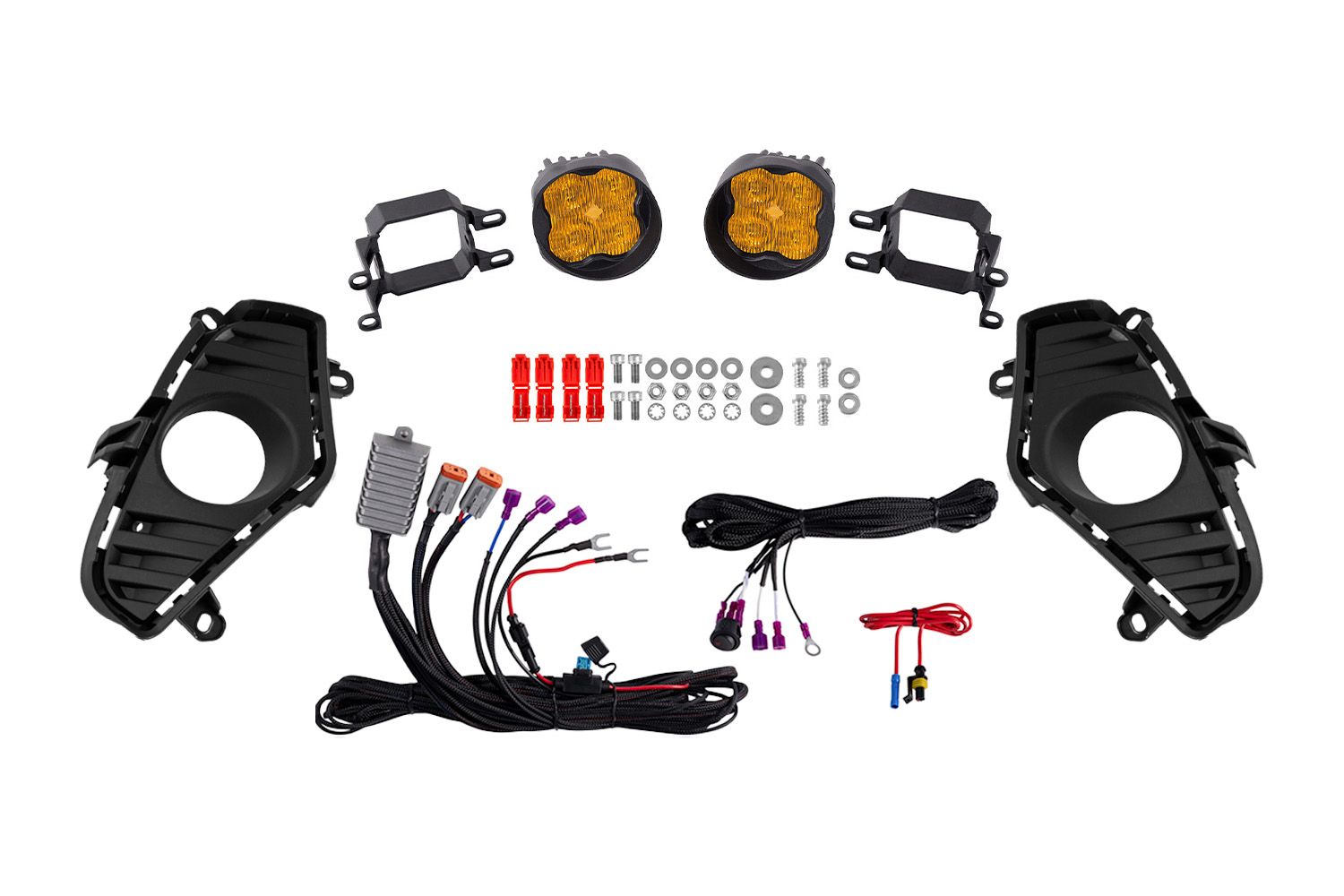

Included:
- (2) SS3 Pro Yellow 3" LED Pods
- (2) Custom Fog Bezels
- (1) Add-On Fog Wiring Harness
- (1) Installation Hardware Kit
Fitment:
-
2019–2022 Toyota RAV4 (vehicles without factory fog lights)
Note:
- Limited Lifetime Warranty
- NOTE: This kit is not compatible with TRD Off-Road/Adventure trim levels, and was designed for vehicles without OEM fog lights.
- If your vehicle already has fog lamps, please select our Fog Light Upgrade Kit. If your vehicle is equipped with an LED accent light from the factory, this will be disabled.
