JKS Front Control Arm Correction Brackets For 07-18 Jeep Wrangler w/ 2-4.5" Lift
JKS Front Control Arm Correction Brackets For 07-18 Jeep Wrangler w/ 2-4.5" Lift
JKS Front Control Arm Correction Brackets For 07-18 Jeep Wrangler w/ 2-4.5" Lift
JKS Manufacturing

JKS Front Control Arm Correction Brackets For 07-18 Jeep Wrangler w/ 2-4.5" Lift

SKU: JKS6200

SELECT FITMENT

See If This Product Fits Your Vehicle

$185.95
$185.95

Free Shipping

Free ground shipping on all orders over $99
Description

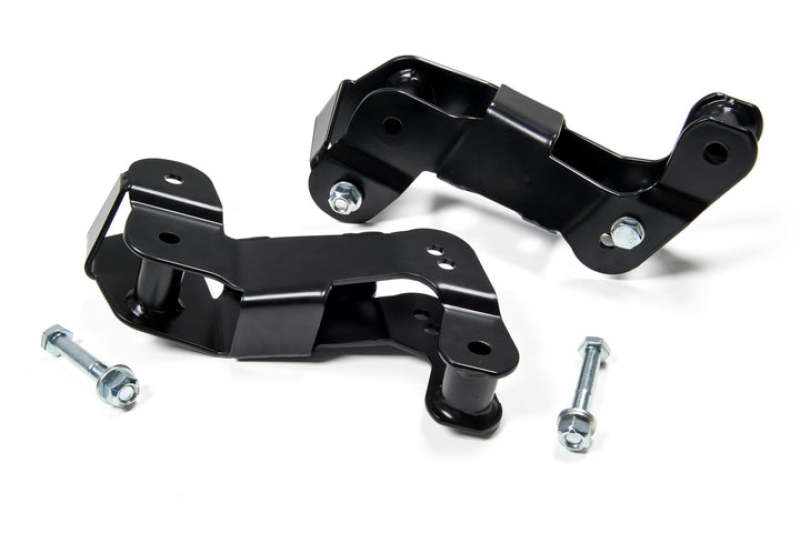

Improve the handling of your lifted Jeep Wrangler JK with JKS Front Control Arm Correction Brackets. Designed for use with 2"-4.5" lift kits the brackets improve control arm operating angle to mimic or improve on factory arm angles as well as improve anti-dive during braking. Lowering the control arm mounting point slightly places the arms closer to the axle mount which corrects caster and geometry caused by the lifted ride height. Two mounting hole positions correct geometry for given lift heights. Heavy duty, 1pc, fully boxed 7GA steel brackets install inside the factory upper and lower control arm mounts with the factory hardware. The fully gusseted design you extra confidence both on and off road. For ultimate performance, Control Arm Correction Brackets can be used with JKS adjustable control arms.



Features:

  • Corrects caster for 2"-4.5" of lift
  • Improve on-road handling and control
  • Improves the front drive shaft CV joint operating angles
  • Corrects control arm operating angle and mimic factory suspension geometry
  • Made from heavy-duty 7GA steel and are fully boxed and welded for superior strength
  • Install inside the factory upper and lower control arm mounts with the factory hardware
  • Limited Lifetime Warranty

Fitment:

  • 2007-2018 Jeep Wrangler JK

Included:

  • JKS Front Control Arm Correction Brackets
  • All Mounting Hardware

Note:

  • Designed for use with 2"+ lift. Ideal lift range is 2"-4.5" but can be used up to 6"
  • Can be used in conjunction with JKS or other aftermarket control arms that can be set to factory length
  • Requires 2" of front bump stop extension for adequate clearance at full suspension compression. JKS 2" bump stop extension are available separately (#1120)
  • Do not combine with any other drop/relocation brackets
Fitment
Fitment

Product Specs

SKU:
JKS6200
Brand:
JKS Manufacturing
