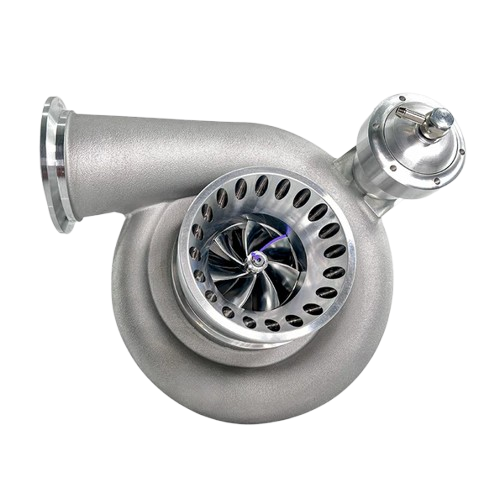

KC Turbos KC300x Stage 1 Gen 3 Turbo For Late 99-03 Ford 7.3l Powerstroke

SKU: 302523

SELECT FITMENT

See If This Product Fits Your Vehicle

$1,390.00
$1,390.00

Free Shipping

Free ground shipping on all orders over $99

Improve your 7.3 Powerstroke engine's performance with the KC300x Stage 1 Gen 3 Turbo. This turbo features a 4" ported housing with drilled anti-surge for better flow, a completely redesigned Gen 3 7x7 SXE style compressor wheel with extended tip technology and with upgraded aero to aid in quick spool, and a SXE style turbine wheel with a thicker shaft inside of completely redesigned compressor and turbine housings.

The Gen 3 KC300x features a .91 AR turbine housing and a 0.70 AR compressor cover, replacing the previous 1.0 AR design. This new setup, with an improved map groove, anti-surge ring, and volute shape, spools faster and offers more top-end power. The turbo includes 200% larger thrust bearings and upgraded journal bearings, with a steel thrust insert replacing the aluminum backing plate for better stability and reduced distortion under high pressure, ensuring consistent performance. This drop-in turbo is perfect for boosting your 7.3 Powerstroke’s power and reliability.

Features:
  • Supports: Up to 205cc/30% injectors
  • Redesigned Gen 3 7x7 SXE style compressor wheel with upgraded aero
  • Thick Shaft Gen 3 SXE style turbine wheel
  • Redesigned quick spool 0.70AR Ported Compressor Cover
  • Improved MAP Groove, Anti-Surge Ring, and Volute Shape
  • 100% Drop In Turbo (no modifications required)
  • Dyno Proven Power Gains
  • Redesigned 0.91AR Turbine Housing with upgraded volute technology for Quicker Spool & More Top End Power
  • Spools FASTER than the old 0.84AR and flows MORE air than the old 1.0AR due to this radical redesign
  • 200% Larger Thrust and Journal Bearings
  • Thicker turbine shaft to accommodate larger bearings and higher boost and HP levels. Stock shaft sizes can deflect and result in catastrophic failures
  • Redesigned Bearing Housing with integrated cast iron backing plate for improved high speed stability by reducing deflection
  • Added Steel Thrust Insert to Reinforce oil slinger and piston seal Contact Areas & Eliminate Bearing Fatigue
  • High Flow Non-EBPV outlet flange
  • Redesigned Round-Top Wastegate Actuator for increased boost control
  • Comes with all gaskets and o-rings to install
  • Comes with newly upgraded 4" intake boot with better fitment over previous designs

Included:

  • (1) KC300x G3 Stage 1 Turbo
  • (1) Upgraded 4" intake boot

Fitment:

  • 1999-2003 Ford F-250 7.3 Powerstroke
  • 1999-2003 Ford F-350 7.3 Powerstroke
  • 1999-2003 Ford F-450 7.3 Powerstroke

Notes:

  • 1 Year Unlimited Miles Limited Warranty
  • Not available for sale in the state of California
  • This turbocharger will not fit OBS or E99 trucks without modification
  • We cannot guarantee fitment with all variations of aftermarket parts like fuel systems, plenums, piping kits, etc

Product Specs

SKU:
302523
Brand:
KC Turbos
