KC Turbos Reaper 500 Twin Turbos & Intercooler For 2015-2016 Ford F-150 3.5L EcoBoost
SKU:
302520
- $3,390.00
- $3,390.00
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99

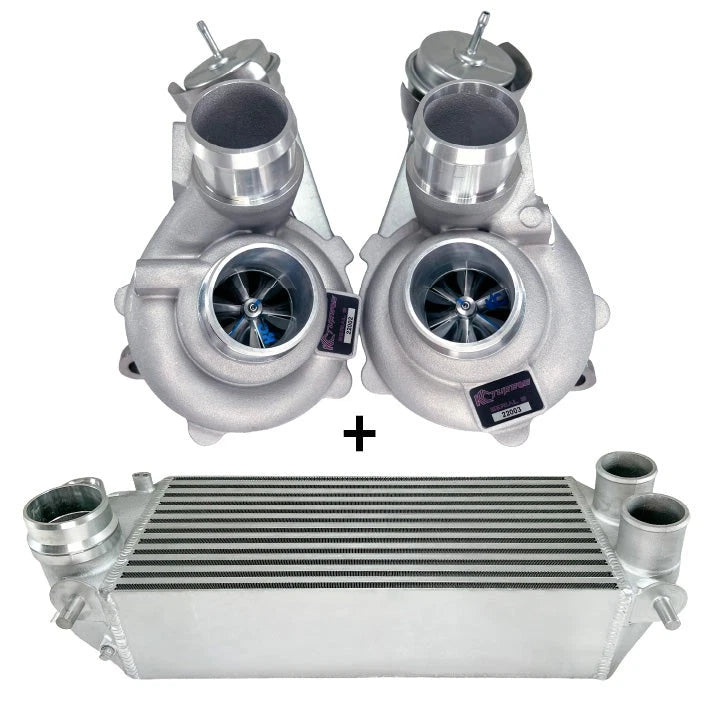

Power up your 2015-2016 Ford F-150 3.5L V6 EcoBoost with the KC Turbos Reaper 500 Twin Turbos and KC Upgraded Intercooler package. KC built the Reapers using its Ford Powerstroke turbos as a baseline, then redesigned the compressor and turbine wheels and created new, more efficient turbine housings and compressor covers. Capable of 500whp, the Reapers give the F-150 3.5L EcoBoost the potential to outperform even the Coyote.
KC Turbos is a family owned and operated company in Apache Junction, Arizona, well known for its premium performance turbo upgrades for Ford Powerstrokes. The KC Upgraded Intercooler in this package features a TIG welded bar and plate core that is 85% larger than the factory intercooler, with high flow cast aluminum end tanks in place of the factory plastic tanks. It drops right into the factory location on the 2015-2016 Ford F-150, works with OEM or aftermarket boots and charge pipes, and lowers intake air temps by 25 degrees.
Features:
- Reaper 500 twin turbos with KC custom spec compressor and turbine wheels
- Capable of 500whp on the 2015-2016 Ford F-150 3.5L EcoBoost
- Upgraded racing cover, anti surge ring and ~20% larger turbine housing
- Rebuildable journal bearing design with no core required
- Installation gaskets, components and high flow outlet flanges included
- Intercooler core 85% larger than factory, supports 750+ HP
- Cast aluminum intercooler end tanks rated for 90+ PSI
- 25 degree lower intake air temp
Specifications:
- Brand: KC Turbos
- Part Number: 302520
- Product: Reaper 500 Twin Turbos + KC Intercooler Package
- Turbo Power Rating: Capable of 500whp
- Compressor Wheel: KC custom spec
- Turbine Wheel: KC custom spec
- Turbine Housing: ~20% larger
- Turbo Bearing Design: Rebuildable journal bearing
- Intercooler Core: TIG welded bar and plate, 85% larger than factory
- Intercooler End Tanks: High flow cast aluminum
- Intercooler Rating: 750+ HP, 90+ PSI
- Fuel Requirement: 91 octane or higher
- Engine: Ford 3.5L V6 EcoBoost
Included:
- (1) KC Reaper 500 Right Side Turbo
- (1) KC Reaper 500 Left Side Turbo
- (1) Set Installation Gaskets and Components
- (1) Set High Flow Outlet Flanges
- (1) KC Upgraded Intercooler
Fitment:
- 2015-2016 Ford F-150 3.5L V6 EcoBoost
Notes:
- Package is only for the 2015-2016 Ford F-150
- Full Race Formline manifolds will not work with this turbo set
- Requires 91 or higher octane fuel and custom tuning
- Recommended for off-road use only
- E40-E80 ethanol blends may require upgraded stock low and high pressure fuel pumps
- No core required
- Not available for sale in the state of California
Product Specs
SKU:
302520
Brand:
KC Turbos
